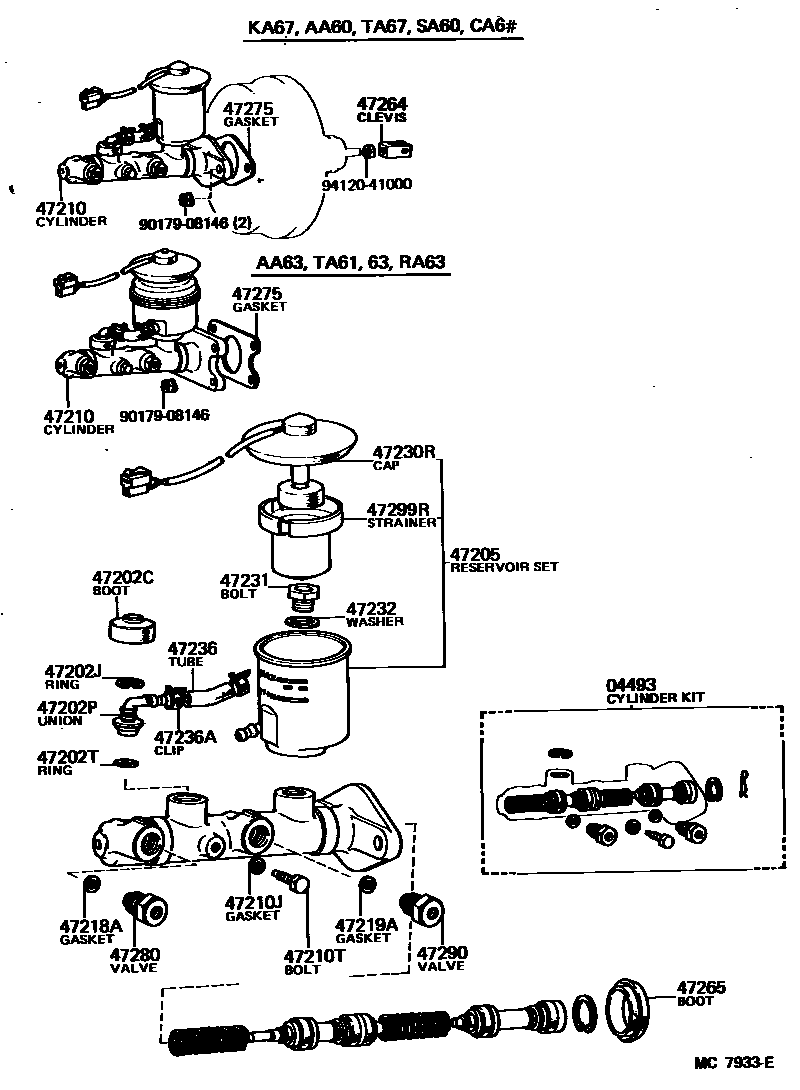

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-20100iAA60,CA6#,KA67,SA60,TA67198109-198804

main04493-24010iAA63,RA63,TA61,63198109-198507

47202CBOOT, RESERVOIR, NO.1(FOR BRAKE MASTER CYLINDER SIDE)

main47265-20060iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

47202JRING, SNAP(FOR BRAKE MASTER CYLINDER SIDE)

main96151-02000iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

47202PUNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE)

main90407-10003iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

sub90407-10004

47202TRING(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.1)

main90301-14001iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

47205RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE)

main47202-14250iAA63,KA67,RA63,TA61,63198109-198804

main47202-14270iAA60,CA6#,SA60,TA67198109-198804

47210CYLINDER ASSY, MASTER, W/O BOOSTER

main47201-14350iAA60,CA6#,KA67,SA60,TA67198109-198804

main47201-14420iRA63,TA61,63..GT,SE,ST198109-198305

sub47201-14460

main47201-14440iTA63..GTT198210-198305

sub47201-14450

main47201-14450iTA63198305-198507

main47201-14460iAA63198305-198507

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-09253iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

47219AGASKET(FOR FLUID OUTLET PLUG REAR SIDE)

main90430-09253iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

47230RCAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE)

main84460-12011iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

47231BOLT, BRAKE MASTER CYLINDER RESERVOIR SET

main47231-30010iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

47232WASHER, BRAKE RESERVOIR SET BOLT

main47232-30010iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

47236TUBE, RESERVOIR BRAKE

main47234-14010iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

47236ACLIP(FOR RESERVOIR TUBE)

main90467-16001iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

sub96134-51500

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-22010iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

47265BOOT, MASTER CYLINDER

main47265-20050iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

47275GASKET, BRAKE MASTER CYLINDER

main47275-14010iAA60,CA6#,KA67,SA60,TA67198109-198804

sub47275-26010

main47275-24010iAA63,RA63,TA61,63198109-198804

47280VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK

main47218-12040iAA6#,CA6#,KA67,SA60,TA63198308-198804

main47280-30030iAA6#,CA6#,RA63,SA60,TA6#198109-198308

sub47280-14010

47290VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE)

main47218-12040iAA6#,CA6#,KA67,SA60,TA63198308-198804

main47280-30030iAA6#,CA6#,RA63,SA60,TA6#198109-198308

sub47280-14010

47299RSTRAINER, MASTER CYLINDER RESERVOIR, REAR

main47299-14010iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

9017908146

main90179-08146

9412041000

main94120-41000

24 parts on this diagram · 1 diagram in section
