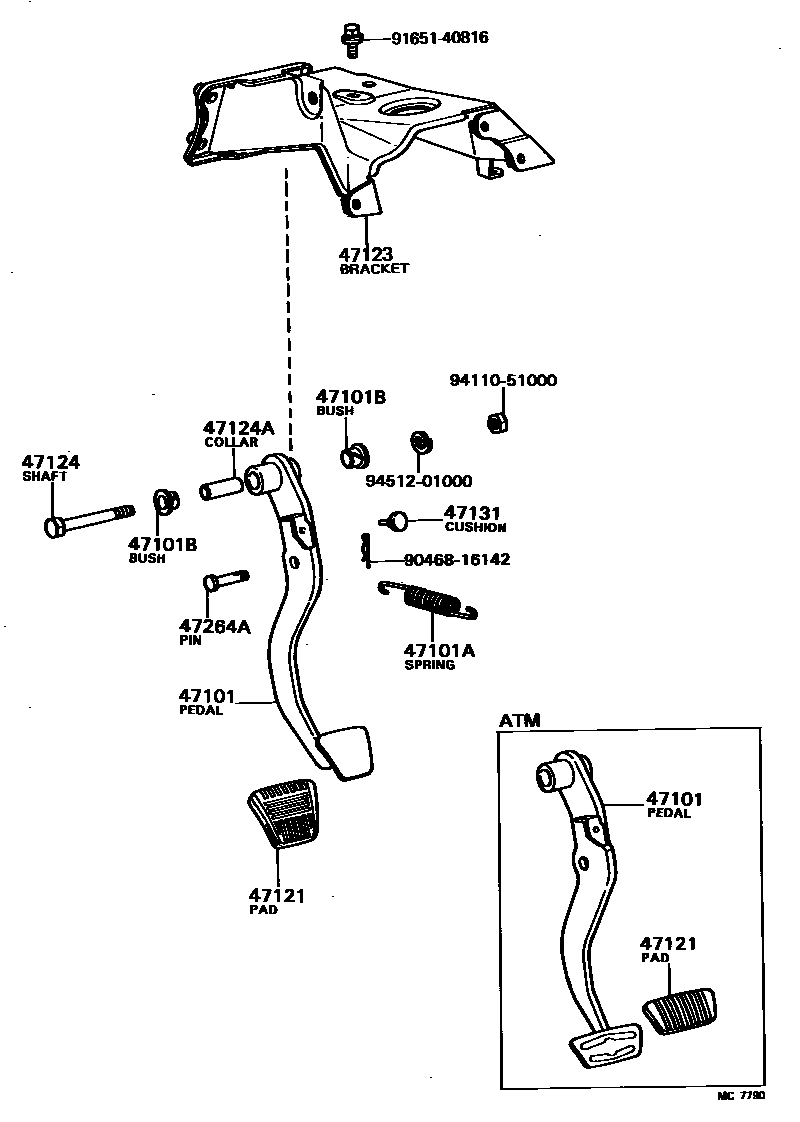

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-24010iAA6#,CA6#,KA67,RA63,SA60,TA6#..MTM198109-198804

main47101-24020iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12011iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iAA60,CA67,KA67,SA60198512-198804

main90386-13192iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198512

47121PAD, BRAKE PEDAL

main31321-14010iAA60,CA6#,RA63,SA60,TA6#..MTM198109-198207

main31321-14020iAA6#,CA6#,KA67,RA63,SA60,TA6#..MTM198207-198804

main47121-30050iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

47123BRACKET, BRAKE PEDAL

main55106-14220iAA60,CA6#,RA63,SA60,TA6#198109-198305

main55106-14260iAA6#,CA6#,KA67,SA60,TA6#198305-198804

47124SHAFT, BRAKE PEDAL

main90101-10039iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198509

main90541-06032iAA60,CA67,KA67,SA60198509-198804

sub90541-06036

47264APIN(FOR PUSH ROD)

main90249-10064iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

9046816142

main90468-16142

9165140816

main91651-40816

9411051000

main94110-51000

9451201000

main94512-01000

13 parts on this diagram · 1 diagram in section
