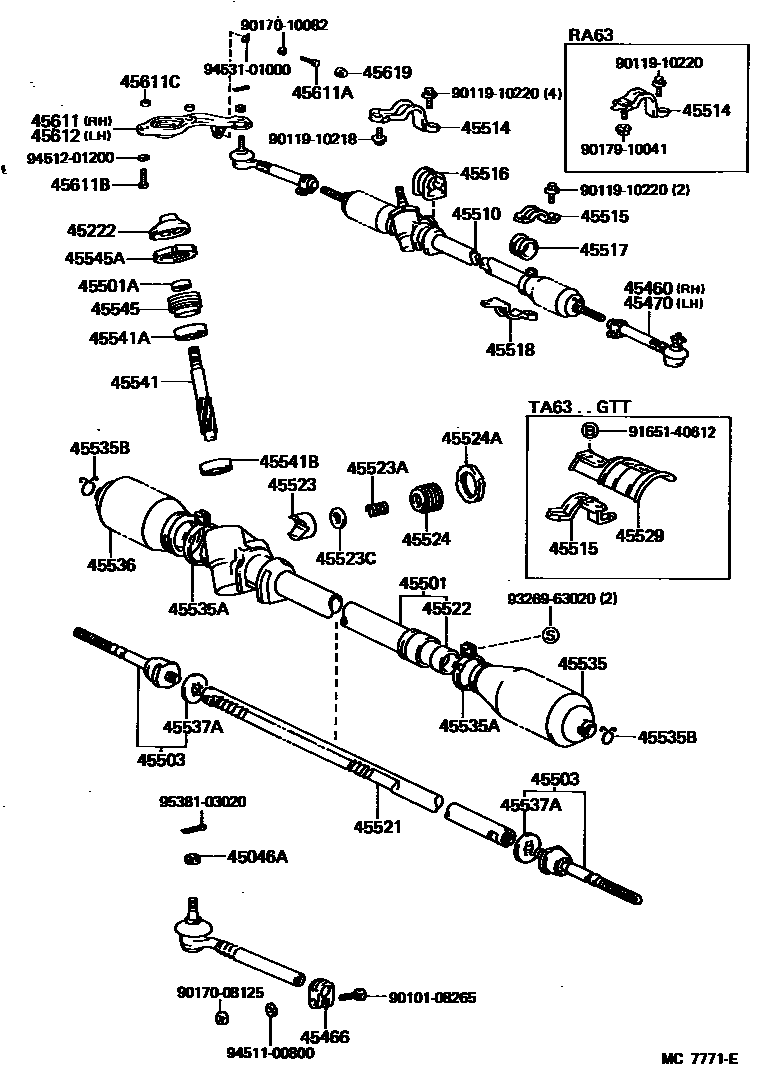

FRONT STEERING GEAR & LINK

0001 1 0003 1 0006 1 0009 1 0012 1 0015 1 0016 1 0017 1

45046END SUB-ASSY, TIE ROD, RH

main45046-29075iCA67,KA67,TA67198109-198804

sub45046-29076

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

45222COVER, STEERING GEAR DUST

main45222-22010iAA6#,CA60,SA60,TA63..SED..(DLX,GT,GTT,SG,ST,STD)198305-198804

main45222-22030iAA60..CP..SE198205-198305

sub45222-20010

45460ROD ASSY, TIE, RH

main45460-19155iAA60..DLX198401-198712

MY ROAD,W/POWER STEERING

main45460-19165iAA6#,SA60..CP,WG198305-198804

main45460-19175iCA67,KA67,TA67198109-198804

main45460-29225iTA63;CA60,RA63..GT,SG198109-198804

45466CLAMP, TIE ROD END

main45466-22010×4iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

45470ROD ASSY, TIE, LH

main45460-19155iAA6#,CA60,RA63,SA60,TA63..GT,GTT,SE,SG,ST198205-198804

W/POWER STEERING

main45460-19165iAA6#,SA60..CP,WG198305-198804

main45460-29225iTA63;CA60,RA63..GT,SG198109-198804

main45470-19025iCA67,KA67,TA67198109-198804

45501HOUSING SUB-ASSY, STEERING RACK

main45501-14011iAA6#,CA60,SA60,TA63..SED..(DLX,GT,GTT,SG,ST,STD)198305-198804

sub45501-14012

45501ASEAL, TYPE T OIL(FOR STEERING RACK HOUSING)

main90311-15001iTA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD198109-198305

sub90311-15002

45503END SUB-ASSY, STEERING RACK

main45503-29015×2iTA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD198109-198301

main45503-29016×2iAA60..CP..SE198301-198305

sub45503-29125

45510GEAR ASSY, STEERING

main45510-14010iAA6#,SA60..CP,WG198305-198804

main45510-14020iTA63;CA60,RA63..GT,SG198109-198804

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-14012iAA6#,CA60,SA60,TA61,63198109-198804

main45514-14020iAA63198305-198507

W/POWER STEERING

main45514-14040iRA63198109-198201

main45514-14041iRA63198201-198210

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-14010iAA60,CA60,SA60,TA63..SE,SG,ST198205-198804

W/POWER STEERING

main45515-14020iAA63,RA63198202-198507

W/POWER STEERING

main45515-14040iAA6#,SA60..CP,WG198305-198804

main45515-14050iTA63..GTT198210-198507

main45515-14060iTA63..GTT198210-198507

W/POWER STEERING

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-24010iAA6#,CA60,RA63,SA60,TA61,63198109-198804

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-14010iCA60,RA63,SA60,TA63198202-198205

W/POWER STEERING

main45517-14020iAA6#,CA60,SA60,TA63..SED..(DLX,GT,GTT,SG,ST,STD)198305-198804

45518BRACKET, STEERING RACK HOUSING, NO.3

main45518-14010iTA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD198109-198305

45521RACK, STEERING

main45521-14011iAA6#,SA60..CP,WG198305-198804

sub45521-14012

sub45522-22011

main45521-14021iTA63;CA60,RA63..GT,SG198109-198804

sub45521-14022

sub45522-22011

45522BUSH, STEERING RACK

main45522-22010iAA6#,CA60,SA60,TA63..SED..(DLX,GT,GTT,SG,ST,STD)198305-198804

sub45522-22011

45523GUIDE, RACK(FOR STEERING GEAR)

main45523-16011iTA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD198109-198305

45523ASPRING(FOR STEERING GEAR RACK GUIDE)

main90501-23007iAA6#,CA60,SA60,TA63..SED..(DLX,GT,GTT,SG,ST,STD)198305-198804

45523CSPACER(FOR RACK GUIDE)

main90560-23003iTA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD198109-198305

45524CAP, STEERING RACK GUIDE SPRING

main45524-16010iTA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD198109-198305

45524ANUT(FOR STEERING RACK GUIDE SPRING CAP)

main90179-36002iAA6#,CA60,SA60,TA63..SED..(DLX,GT,GTT,SG,ST,STD)198305-198804

45529INSULATOR, STEERING RACK BOOT HEAT

main45529-14010iTA63..GTT198210-198507

45535BOOT, STEERING RACK, NO.1

main45535-22010iAA60..CP..SE198205-198305

main45535-22011iAA6#,CA60,SA60,TA63..SED..(DLX,GT,GTT,SG,ST,STD)198305-198804

45535ACLAMP(FOR STEERING RACK BOOT)

main90461-10273iAA6#,CA60,SA60,TA63..SED..(DLX,GT,GTT,SG,ST,STD)198305-198804

ID=41.5

main90461-10524iTA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD198109-198305

ID=61.5

45535BCLIP(FOR STEERING RACK BOOT)

main90467-18003×2iAA6#,CA60,SA60,TA63..SED..(DLX,GT,GTT,SG,ST,STD)198305-198804

45536BOOT, STEERING RACK, NO.2

main45536-14020iAA6#,CA60,SA60,TA63..SED..(DLX,GT,GTT,SG,ST,STD)198305-198804

45537AWASHER, CLAW(FOR STEERING RACK END LOCK)

main90214-14003×2iTA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD198109-198301

main90214-14005×2iAA60..CP..SE198301-198305

45541PINION, STEERING

main45541-22010iTA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD198109-198305

45541ABEARING, RADIAL BALL(FOR STEERING PINION UPPER)

main90363-15006iTA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD198109-198305

45541BBEARING, RADIAL BALL(FOR STEERING PINION LOWER)

main90363-15005iTA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD198109-198305

45545SCREW, PINION BEARING ADJUSTING

main45545-22010iTA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD198109-198305

45545ANUT(FOR PINION BEARING ADJUSTING SCREW)

main90179-42001iTA63;AA60,CA60,RA63,SA60,TA61..DLX,GT,SG,ST,STD198109-198305

45611ARM, STEERING KNUCKLE, RH

main45611-14030iAA60,CA60,SA60..SE,SG,ST198205-198804

W/POWER STEERING

main45611-14040iAA60..CP..SE198205-198712

main45611-14050iCA60..SG198202-198405

main45611-14060iCA67,KA67,TA67198109-198804

main45611-14070iTA63198109-198202

W/POWER STEERING

main45611-14080iAA63,TA61198109-198507

main45611-14090iRA63,TA63198109-198507

45611ABOLT, KNUCKLE STOPPER

main90106-10002×2iAA6#,CA60,RA63,SA60,TA61,63198109-198804

L=31

main90106-10032×2iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

L=34

45611BBOLT, HEXAGON(FOR STEERING KNUCKLE TO SHOCK ABSORBER)

main90101-12295×4iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

L=35

main90101-12379×4iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

L=39

main90101-12491×4iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

L=42

45611CPIN, STRAIGHT(FOR STEERING KNUCKLE TO SHOCK ABSORBER)

main90253-15016×4iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

45612ARM, STEERING KNUCKLE, LH

main45612-14030iAA60,CA60,SA60..SE,SG,ST198205-198804

W/POWER STEERING

main45612-14040iAA60,SA60..DLX,SG,ST,STD198109-198804

main45612-14050iCA60..SG198202-198405

main45612-14060iCA67,KA67,TA67198109-198804

main45612-14070iTA63198109-198202

W/POWER STEERING

main45612-14080iAA63,TA61198109-198507

main45612-14090iRA63,TA63198109-198507

45619COVER, KNUCKLE STOPPER

main45619-14020×2iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

9010108265

main90101-08265

9011910218

main90119-10218

9011910220

main90119-10220

9017008125

main90170-08125

9017010082

main90170-10082

9017910041

main90179-10041

9165140612

main91651-40612

9326963020

main93269-63020

9451100800

main94511-00800

9451201200

main94512-01200

9453101000

main94531-01000

9538103020

main95381-03020

51 parts on this diagram · 8 diagrams in section
