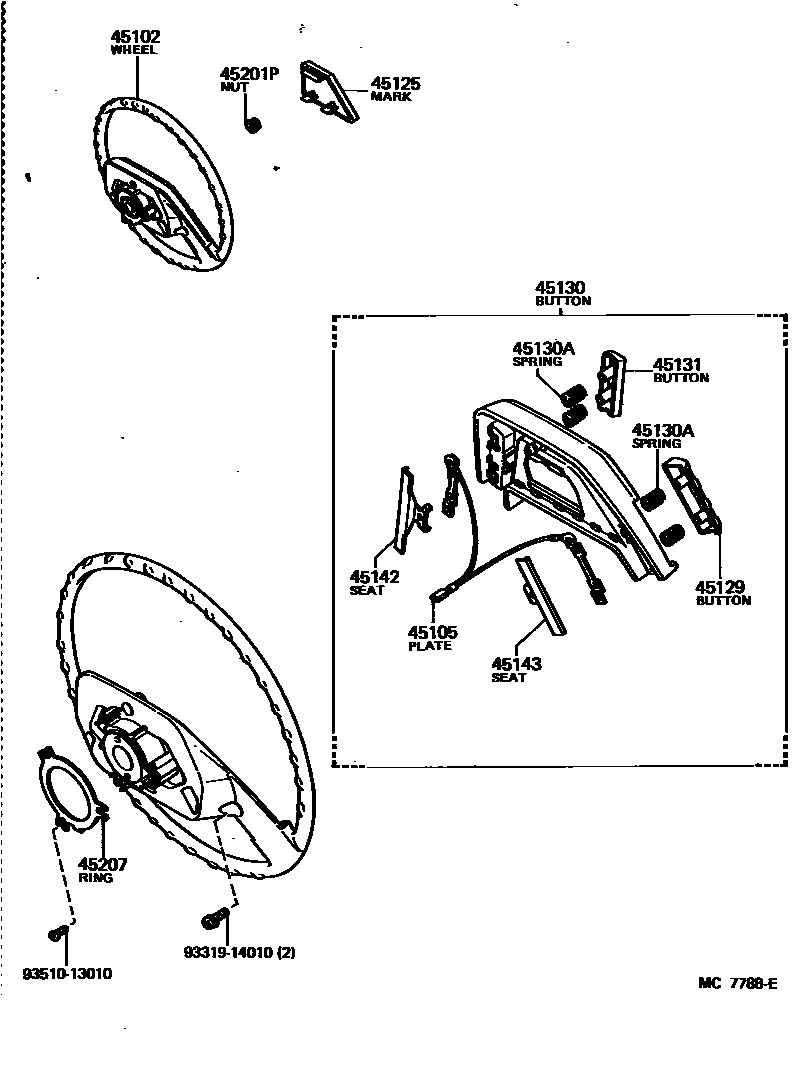

STEERING WHEEL

0001 1 0002 1 0003 1 0004 1

45102WHEEL SUB-ASSY, STEERING

main45100-14270-01iAA60,CA6#,KA67,SA60,TA67..DLX,SG198109-198804

BLACK,BLACK,TRIM2#

main45100-14270-04iAA60,CA60,SA60..DLX,SG198208-198605

BLUE,BLUE,TRIM8#

main45100-14270-06iAA60..(3FC,4F)..SG198206-198208

DARK BROWN,BROWN,TRIM4#

main45100-14270-14iAA60,SA60..DLX,SG198605-198712

BLUE,BLUE,TRIM8#

main45100-14280-01iAA60,CA60,RA63,SA60,TA61,63..(CP,SED)..(GT,SE,ST)198109-198305

BLACK,BLACK,TRIM2#

sub45100-14310

main45100-14280-04iAA60,CA60,RA63,SA60,TA61,63..GT,SE,ST198208-198305

BLUE,BLUE,TRIM8#

sub45100-14310

main45100-14280-06iAA60,CA60,RA63,SA60,TA61,63..GT,SE,ST198208-198305

DARK BROWN,BROWN,TRIM4#

sub45100-14310

main45100-14330-01iAA63,TA63..GT,GTT198210-198507

THREE SPORK,BLACK,BLACK,TRIM2#

main45100-14330-04iAA63,TA63198305-198507

THREE SPORK,BLUE,BLUE,TRIM8#

main45100-14330-06iAA63,TA63198305-198507

THREE SPORK,DARK BROWN,BROWN,TRIM4#

main45100-14340-01iAA60,CA60,SA60..SE,ST198305-198804

BLACK,BLACK,TRIM2#

main45100-14340-04iAA60,CA60,SA60..SE,ST198305-198605

BLUE,BLUE,TRIM8#

main45100-14340-06iAA60,CA60,SA60..SE,ST198305-198804

DARK BROWN,BROWN,TRIM4#

main45100-14340-14iSA60..ST198605-198804

BLUE,BLUE,TRIM8#

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-14040iAA60,CA60,RA63,SA60,TA61,63..GT,SE,ST198109-198305

main45105-14060iAA60,CA60,SA60..SE,ST198305-198804

main45105-14070iAA60,CA6#,KA67,SA60,TA67..DLX,SG,STD198109-198804

45125MARK, STEERING WHEEL PAD

main45125-14240-01iAA60,CA6#,SA60,TA63,67..DLX,SG,ST,STD198109-198208

BLACK

main45125-14240-04iAA60,CA60,SA60..DLX,SG,STD198305-198605

BLUE,BLUE,TRIM8#

main45125-14240-06iAA60,CA6#,KA67,SA60,TA67..DLX,SG,STD198305-198804

DARK BROWN,BROWN,TRIM4#

main45125-14240-14iAA60,SA60..SED198605-198712

BLUE,BLUE,TRIM8#

main45125-14320iAA60..(3FC,4F)..SG198206-198712

JEUNE

main45125-14340-01iTA63..GTT198210-198507

BLACK,BLACK,TRIM2#

main45125-14340-04iTA63198305-198507

BLUE,BLUE,TRIM8#

main45125-14340-06iTA63198305-198507

DARK BROWN,BROWN,TRIM4#

main45125-14360-01iAA63198305-198507

THREE SPOKE,BLACK,BLACK,TRIM2#

main45125-14360-04iAA63198305-198507

THREE SPOKE,BLUE,BLUE,TRIM8#

main45125-14360-06iAA63198305-198507

THREE SPOKE,DARK BROWN,BROWN,TRIM4#

main45125-14380iAA60,CA60,SA60..SE,ST198305-198804

45129BUTTON, HORN, NO.2

main45129-14030-01iAA60,CA6#,KA67,SA60,TA67..DLX,SG,STD198305-198804

BLACK,BLACK,TRIM2#

main45129-14030-04iAA60,CA60,SA60..DLX,SG198305-198605

BLUE,BLUE,TRIM8#

main45129-14030-06iAA60..(3FC,4F)..SG198206-198208

DARK BROWN,BROWN,TRIM4#

main45129-14030-34iAA60,SA60..DLX,SG198605-198712

BLUE,BLUE,TRIM8#

45130BUTTON ASSY, HORN

main45130-14110-01iAA60,CA6#,KA67,SA60,TA67..DLX,SG,STD198109-198804

BLACK,BLACK,TRIM2#

main45130-14110-04iAA60,CA60,SA60..DLX,SG198208-198804

BLUE,BLUE,TRIM8#

main45130-14110-06iAA60..(3FC,4F)..SG198206-198208

DARK BROWN,BROWN,TRIM4#

main45130-14140-01iAA60,CA60,SA60..SE,ST198305-198804

BLACK,BLACK,TRIM2#

main45130-14140-04iAA60,CA60,SA60..SE,ST198305-198605

BLUE,BLUE,TRIM8#

main45130-14140-06iAA60,CA60,SA60..SE,ST198305-198804

DARK BROWN,BROWN,TRIM4#

main45130-14140-14iSA60..ST198605-198804

BLUE,BLUE,TRIM8#

45130ASPRING, COMPRESSION(FOR HORN BUTTON)

main90501-09023×4iAA60,CA6#,RA63,SA60,TA6#..DLX,GT,SE,SG,ST,STD198109-198305

main90501-10040×3iAA63,TA63..GT,GTT198210-198507

sub90501-10104

45131BUTTON, HORN, NO.1

main45131-14090-01iAA60,CA6#,KA67,SA60,TA67..DLX,SG,STD198305-198804

BLACK,BLACK,TRIM2#

main45131-14090-04iAA60,CA60,RA63,SA60,TA61,63..DLX,GT,SE,SG,ST198208-198305

BLUE,BLUE,TRIM8#

main45131-14090-06iAA60,CA6#,KA67,SA60,TA67..DLX,SG198305-198804

DARK BROWN,BROWN,TRIM4#

45142SEAT, HORN BUTTON CONTACT, NO.1

main45109-14010×2iAA60,CA60,RA63,SA60,TA61,63..GT,SE,ST198109-198305

main45142-14040iAA60,CA6#,KA67,SA60,TA67..DLX,SG,STD198109-198804

main45142-14070iAA63,TA63..GT,GTT198210-198507

45143SEAT, HORN BUTTON CONTACT, NO.2

main45143-14020iAA60,CA6#,KA67,SA60,TA67..DLX,SG,STD198109-198804

45201PNUT, STEERING WHEEL SET

main90179-12086iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

45207RING, HORN CONTACT

main45176-14050iAA60,CA6#,RA63,SA60,TA6#..DLX,GT,SE,SG,ST,STD198109-198305

main45176-20030iAA63,TA63..GT,GTT198210-198507

main45176-30070iAA60,CA60,SA60..SE,ST198305-198804

9331914010

main93319-14010

9351013010

main93510-13010

13 parts on this diagram · 4 diagrams in section
