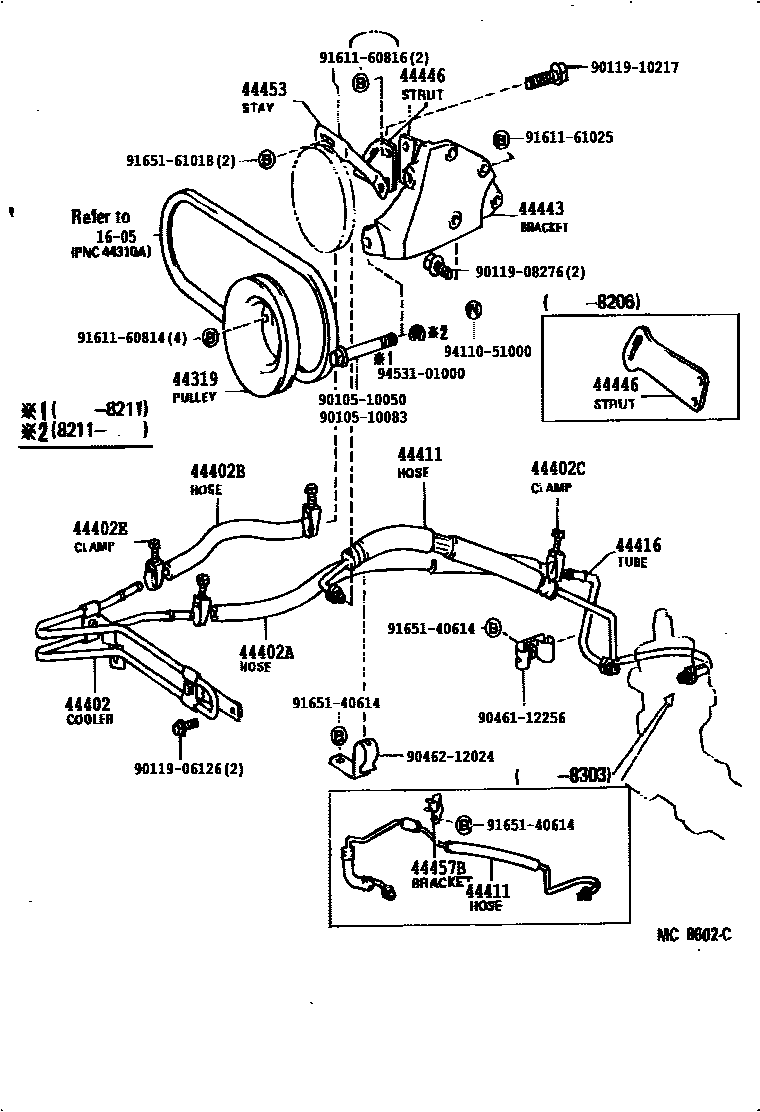

POWER STEERING TUBE

0001 1AA60..DLX=MY ROAD 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

1605

44319PULLEY, VANE PUMP DRIVE

main13477-18020iTA63198109-198202

main13477-18021iTA63..SE,ST198202-198305

main44319-12011iAA60..SE,SG,ST198205-198712

main44319-14010iSA60198109-198804

main44319-14030iCA60198202-198301

main44319-14031iCA60198301-198405

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-14050iSA60198109-198202

main44402-14080iTA63..GTT198210-198507

main44402-14110iAA60..DLX198401-198712

MY ROAD

44402AHOSE, POWER STEERING OIL COOLER INLET

main44412-14080iSA60198109-198201

main44412-14130iTA63..GTT198210-198507

main44412-14160iAA63198305-198507

main44412-20010iAA60..SE,SG,ST198205-198712

main44412-20030iSA60198201-198202

main44412-20090iSA60198210-198301

44402BHOSE, POWER STEERING OIL COOLER OUTLET

main44412-14120iTA63..GTT198210-198507

sub44412-38070

main44412-20020iAA60..SE,SG,ST198205-198712

main44412-20040iRA63198202-198210

main90445-18063iAA63198305-198507

main90445-18108iCA60,SA60198109-198804

44402CCLAMP, POWER STEERING OIL COOLER INLET HOSE

main90460-01001×2iSA60198109-198202

44402ECLAMP, POWER STEERING OIL COOLER OUTLET HOSE

main90460-01001×2iAA60..DLX198401-198712

MY ROAD

44411HOSE, PRESSURE FEED

main44410-14020iTA63..SE,ST198109-198305

main44410-20050iRA63198202-198210

main44411-14060iSA60198109-198201

main44411-14130iTA63..GTT198210-198507

main44411-14150iSA60198301-198602

main44411-14151iSA60198602-198804

main44411-20060iAA60..SE,SG,ST198205-198303

main44411-20061iAA60..SE,SG,ST198303-198602

main44411-20062iAA60..SG198602-198712

main44411-20070iCA60198202-198405

main44411-20090iSA60198201-198210

main44411-20091iSA60198210-198301

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-14080iSA60198109-198201

main44416-14090iTA63..SE,ST198109-198305

main44416-14140iTA63..GTT198210-198507

main44416-14150iAA63198305-198507

main44416-20030iRA63198202-198210

main44416-20040iAA60..SE,SG,ST198205-198602

main44416-20041iAA60..SG198602-198712

main44416-20080iSA60198301-198602

main44416-20081iSA60198602-198804

main44416-20130iSA60198210-198301

44443BRACKET, PUMP

main44443-12010iTA63..SE,ST198109-198305

main44443-12020iAA60..SE,SG,ST198205-198206

main44443-12021iAA60..SE,SG,ST198206-198712

main44443-12030iAA63198305-198507

main44443-14020iSA60198109-198804

main44443-14030iCA60198202-198405

main44443-14040iTA63..GTT198210-198507

main44443-20040iRA63198202-198210

44446STRUT, ADJUSTING

main44446-12010iAA60..SE,SG,ST198205-198206

main44446-12011iAA60..SE,SG,ST198206-198712

main44446-14010iCA60,SA60198109-198804

44453STAY, PUMP, FRONT

main44453-12010iAA60..SE,SG,ST198205-198712

44457BBRACKET, POWER STEERING TUBE SUPPORT, NO.2

main44457-14070iSA60198109-198210

main44457-14150iSA60198210-198301

main44457-20020iAA60..SE,SG,ST198205-198303

9010510050

main90105-10050

9010510083

main90105-10083

9011906126

main90119-06126

9011908276

main90119-08276

9011910217

main90119-10217

9046112256

main90461-12256

9046212024

main90462-12024

9161160814

main91611-60814

9161160816

main91611-60816

9161161025

main91611-61025

9165140614

main91651-40614

9165161018

main91651-61018

9411051000

main94110-51000

9453101000

main94531-01000

27 parts on this diagram · 7 diagrams in section
