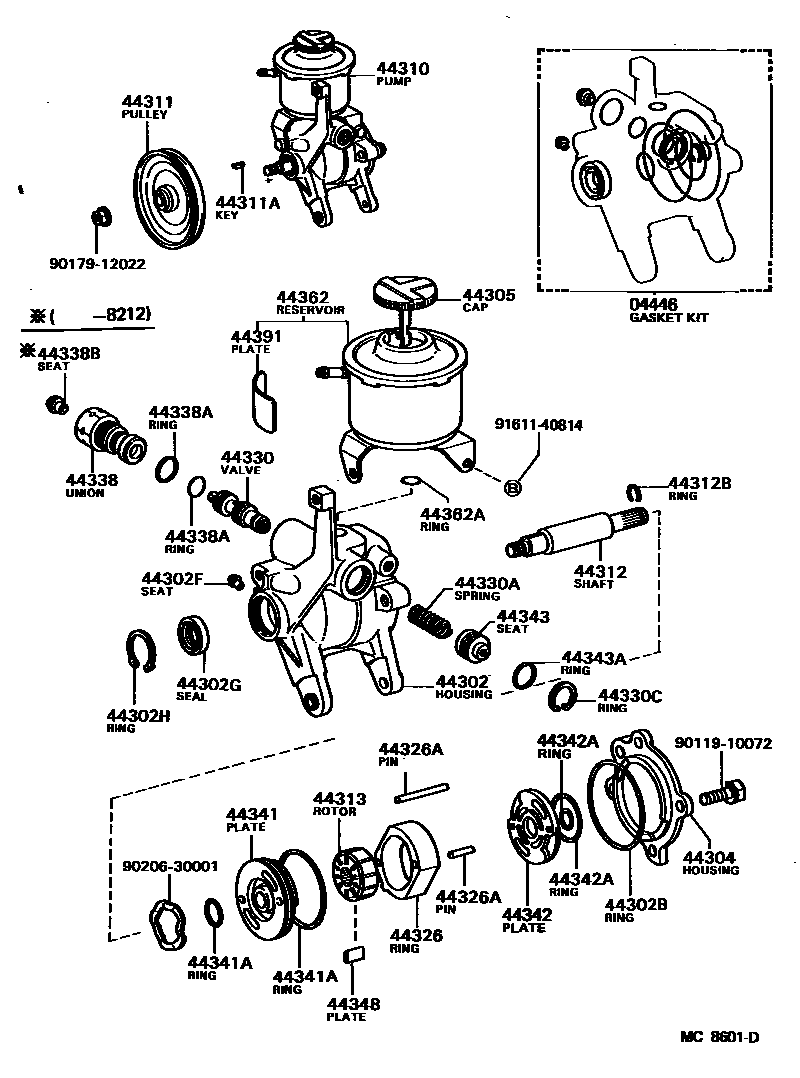

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0003 1 0004 1 0005 1 0006 1 0007 1

04446GASKET KIT, POWER STEERING PUMP

main04446-12020iAA63198305-198507

sub04446-27010

main04446-14010iSA60,TA63198109-198804

sub04446-14040

main04446-16010iAA60..SE,SG,ST198205-198712

sub04446-16011

main04446-16010iAA60..DLX198401-198712

MY ROAD

sub04446-16011

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-12010iTA63..SE,ST198109-198305

main44302-12020iAA60..SE,SG,ST198205-198211

sub44302-12021

sub90105-10083

main44302-12021iAA60..SE,SG,ST198211-198408

sub44302-16010

main44302-14010iSA60198109-198804

main44302-16010iAA60..SE,SG,ST198408-198507

main44302-16011iAA60..SG198507-198712

44302BRING, O, NO.1(FOR VANE PUMP HOUSING)

main90301-60001iSA60,TA63198109-198804

main90301-63002iAA60..DLX198401-198712

MY ROAD

main90301-63002iAA60..SE,SG,ST198205-198712

44302FSEAT, UNION(FOR VANE PUMP HOUSING)

main90410-05035iRA63,SA60,TA63198109-198804

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-18003iAA60..SE,SG,ST198205-198306

sub90311-18008

main90311-18007iAA63198305-198507

main90311-18008iAA60..SE,SG,ST198306-198712

main90311-18008iAA60..DLX198401-198712

MY ROAD

main90311-24001iSA60,TA63198109-198804

44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)

main90521-32001iAA60..SE,SG,ST198205-198712

main90521-32001iAA60..DLX198401-198712

MY ROAD

main90521-44002iCA60,RA63,SA60,TA63198109-198804

44304HOUSING SUB-ASSY, VANE PUMP, REAR

main44304-14020iTA63..SE,ST198109-198305

main44304-14030iRA63,SA60;TA63..GTT198109-198612

sub44304-14031

sub44343-12040

sub90501-12103

main44304-14031iSA60198612-198804

main44304-14040iCA60198202-198405

sub44304-14041

sub44343-12040

sub90501-12103

main44324-12020iAA60..DLX198401-198402

MY ROAD

sub44324-16010

main44324-12020iAA60..SE,SG,ST198205-198402

sub44324-16010

main44324-12030iAA63198305-198507

main44324-12031iAA63198507-198507

main44324-16010iAA60..DLX198402-198712

MY ROAD

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-30020iCA60,RA63,SA60,TA63198109-198804

sub44305-22040

main44305-30020iAA60..DLX198401-198712

MY ROAD

sub44305-22040

44310PUMP ASSY, VANE

main44320-12030iAA60..SE,SG,ST198205-198211

sub44320-12031

sub90105-10083

main44320-12031iAA60..SE,SG,ST198211-198306

sub44320-12032

main44320-12032iAA60..SE,SG,ST198306-198311

sub44320-14210

main44320-12070iAA63198305-198408

main44320-12071iAA63198408-198507

sub44320-12072

main44320-12072iAA63198507-198507

main44320-14080iTA63..SE,ST198109-198305

main44320-14090iSA60198109-198804

main44320-14100iCA60198202-198405

main44320-14150iTA63..GTT198210-198507

main44320-14210iAA60..SE,SG,ST198311-198712

main44320-14210iAA60..DLX198401-198712

MY ROAD

44311PULLEY, VANE PUMP

main44311-12010iTA63..SE,ST198109-198305

main44311-12020iAA60..SE,SG,ST198205-198712

main44311-12020iAA60..DLX198401-198712

MY ROAD

main44311-12050iAA63198305-198507

main44311-14010iSA60198109-198804

main44311-14030iCA60198202-198301

main44311-14031iCA60198301-198405

main44311-14040iTA63..GTT198210-198507

main44311-20020iRA63198202-198210

44311AKEY, VANE PUMP PULLEY

main90280-05008iAA6#,CA60,RA63,SA60,TA63..GT,GTT,SE,SG,ST198109-198804

main90280-05008iAA60..DLX198401-198712

MY ROAD

44312SHAFT, VANE PUMP

main44312-12010iCA60,RA63,SA60,TA63198109-198804

main44312-12020iAA60..SE,SG,ST198205-198712

main44312-12020iAA60..DLX198401-198712

MY ROAD

main44312-12030iAA63198305-198507

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-10003iAA6#..GT,SE,SG,ST198205-198712

main90520-10003iAA60..DLX198401-198712

MY ROAD

main90520-15001iSA60,TA63198109-198804

44313ROTOR, VANE PUMP

main44313-12010iCA60,RA63,SA60,TA63198109-198804

sub44313-22040

main44313-12010iAA60..DLX198401-198712

sub44313-22040

main44313-12020iSA60,TA63198109-198804

sub44313-22050

main44313-12020iAA60..DLX198401-198712

sub44313-22050

main44313-12030iAA6#,CA60,RA63,SA60,TA63..GT,GTT,SE,SG,ST198109-198804

sub44313-22060

main44313-12030iAA60..DLX198401-198712

sub44313-22060

main44313-12040iSA60,TA63198109-198804

sub44313-22070

main44313-12040iAA60..DLX198401-198712

sub44313-22070

main44313-12050iCA60,RA63,SA60,TA63198109-198804

sub44313-22080

main44313-12050iAA60..DLX198401-198712

sub44313-22080

44326RING, CAM(FOR VANE PUMP)

main44325-12010iCA60,RA63,SA60,TA63198109-198804

main44325-12020iCA60,RA63,SA60,TA63198109-198804

main44325-12030iSA60,TA63198109-198804

main44325-12040iCA60,RA63,SA60,TA63198109-198804

main44325-12050iSA60,TA63198109-198804

main44325-12060iAA60..DLX198401-198712

main44325-12060iAA60..SE,SG,ST198205-198712

main44325-12070iAA60..SE,SG,ST198205-198712

main44325-12070iAA60..DLX198401-198712

main44325-12080iAA60..DLX198401-198712

main44325-12080iAA60..SE,SG,ST198205-198712

main44325-12090iAA60..SE,SG,ST198205-198712

main44325-12090iAA60..DLX198401-198712

main44325-12100iAA60..DLX198401-198712

main44325-12100iAA60..SE,SG,ST198205-198712

main44325-12110iAA63198305-198507

main44325-12120iAA63198305-198507

main44325-12130iAA63198305-198507

main44325-12140iAA63198305-198507

main44325-12150iAA63198305-198507

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-04047iAA63198305-198507

main90250-04049iAA63198305-198507

main90250-05008iSA60,TA63198109-198206

main90250-05008iAA60..DLX198401-198712

main90250-05008iAA60,CA60,RA63,SA60,TA63..GT,GTT,SE,SG,ST198205-198804

main90250-05017iAA60..SE,SG,ST198205-198712

main90250-05017iAA60..DLX198401-198712

44330VALVE ASSY, FLOW CONTROL

main44330-12010iTA63198109-198207

sub44330-12130

main44330-12020iSA60,TA63198109-198207

sub44330-12140

main44330-12030iSA60,TA63198109-198207

sub44330-12150

main44330-12040iTA63198109-198207

sub44330-12160

main44330-12050iSA60,TA63198109-198207

sub44330-12170

main44330-12060iTA63198109-198207

sub44330-12180

main44330-12070iAA60..SE,SG,ST198205-198712

sub44330-12071

main44330-12070iAA60..DLX198401-198712

sub44330-12071

main44330-12080iAA60..SE,SG,ST198205-198712

sub44330-12081

main44330-12080iAA60..DLX198401-198712

sub44330-12081

main44330-12090iAA60..SE,SG,ST198205-198712

sub44330-12091

main44330-12090iAA60..DLX198401-198712

sub44330-12091

main44330-12100iAA60..SE,SG,ST198205-198712

sub44330-12101

main44330-12100iAA60..DLX198401-198712

sub44330-12101

main44330-12110iAA60..DLX198401-198712

sub44330-12111

main44330-12110iAA60..SE,SG,ST198205-198712

sub44330-12111

main44330-12120iAA60..SE,SG,ST198205-198712

sub44330-12121

main44330-12120iAA60..DLX198401-198712

sub44330-12121

main44330-12130iTA63..SE,ST198207-198305

sub44330-12131

main44330-12140iTA63..SE,ST198207-198305

sub44330-12141

main44330-12150iTA63..SE,ST198207-198305

sub44330-12151

main44330-12160iTA63..SE,ST198207-198305

sub44330-12161

main44330-12170iTA63..SE,ST198207-198305

sub44330-12171

main44330-12180iTA63..SE,ST198207-198305

sub44330-12181

main44330-14010iTA63..GTT;AA63,CA60,RA63,SA60198207-198804

sub44330-20010

main44330-14020iTA63..GTT;AA63,CA60,RA63,SA60198207-198804

sub44330-20020

main44330-14030iTA63..GTT;AA63,CA60,RA63,SA60198207-198804

sub44330-20030

main44330-14040iTA63..GTT;AA63,CA60,RA63,SA60198207-198804

sub44330-20040

main44330-14050iTA63..GTT;AA63,CA60,RA63,SA60198207-198804

sub44330-20050

main44330-14060iTA63..GTT;AA63,CA60,RA63,SA60198207-198804

sub44330-20060

main44330-35070iSA60198201-198207

sub44330-32070

main44330-35080iCA60,RA63,SA60198201-198207

sub44330-32080

main44330-35090iCA60,RA63,SA60198201-198207

sub44330-32090

main44330-35100iCA60,RA63,SA60198201-198207

sub44330-32100

main44330-35110iSA60198201-198207

sub44330-32110

main44330-35120iSA60198201-198207

sub44330-32120

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-12103iSA60198612-198804

main90501-12447iSA60,TA63198109-198612

main90501-12447iAA60..DLX198401-198712

MY ROAD

44330CRING, SNAP(FOR FLOW CONTROL VALVE)

main96151-01700iSA60,TA63198109-198804

main96151-02200iAA60..DLX198401-198712

MY ROAD

main96151-02200iAA60..SE,SG,ST198205-198712

44338UNION, PRESSURE PORT

main44308-12010iAA60..SE,SG,ST198205-198311

sub44308-14050

main44308-12040iAA63198305-198507

sub44308-12041

main44308-14020iSA60,TA63198109-198112

main44308-14040iSA60,TA63198112-198405

sub44308-14041

main44308-14041iSA60,TA63198405-198804

main44308-14050iAA60..SE,SG,ST198311-198507

main44308-14050iAA60..DLX198401-198507

MY ROAD

main44308-14070iAA60..SG198507-198712

MY ROAD

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-19003iAA63198305-198507

sub90301-19013

main90301-22001iSA60,TA63198109-198804

main90301-22001iAA60..DLX198401-198712

main96710-01014iSA60,TA63198109-198112

sub96711-19014

main96711-19014iCA60,RA63,SA60,TA63198112-198804

main96711-19014iAA60..DLX198401-198712

44338BSEAT, UNION(FOR PRESSURE PORT UNION)

main90410-06004iSA60,TA63198109-198212

44341PLATE, VANE PUMP SIDE, FRONT

main44341-12020iAA60..SE,SG,ST198205-198712

sub44341-30030

main44341-12020iAA60..DLX198401-198712

MY ROAD

sub44341-30030

main44341-12030iAA63198305-198507

sub44341-32010

44341ARING, O(FOR VANE PUMP FRONT SIDE PLATE)

main90301-21001iAA60..SE,SG,ST198205-198712

INNER

main90301-21001iAA60..DLX198401-198712

MY ROAD,INNER

main90301-25001iAA63198305-198507

INNER

sub90301-25008

main90301-52001iAA63198305-198507

OUTER

main90301-56002iAA60..SE,SG,ST198205-198712

OUTER

main90301-56002iAA60..DLX198401-198712

MY ROAD,OUTER

44342PLATE, VANE PUMP SIDE, REAR

main44341-12010iSA60,TA63198109-198804

main44342-12010iAA60..SE,SG,ST198205-198402

main44342-12020iAA63198305-198507

main44342-12021iAA63198507-198507

sub44342-32010

main44342-22010iAA60..DLX198401-198712

MY ROAD

sub44342-30020

main44342-22010iAA60..SE,SG,ST198402-198712

sub44342-30020

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-13004iAA60..SE,SG,ST198402-198712

ID=13.4

main90301-13004iAA60..DLX198402-198712

MY ROAD,ID=13.4

main90301-30004iAA60..DLX198402-198712

ID=30

main90301-30004iAA60..DLX198402-198712

MY ROAD,ID=30

main90301-37002iAA60..SE,SG,ST198205-198402

ID=37.5

main90301-37002iAA60..DLX198401-198402

MY ROAD,ID=37.5

main90301-52001iAA63198305-198507

main90301-53002iSA60,TA63198109-198804

44343SEAT, FLOW CONTROL SPRING

main44343-12010iAA63,CA60,RA63,SA60,TA63198109-198612

main44343-12030iAA60..DLX198401-198712

MY ROAD

main44343-12030iAA60..SE,SG,ST198205-198712

main44343-12040iSA60198612-198804

44343ARING, O(FOR FLOW CONTROL SPRING SEAT)

main96710-01014iSA60,TA63198109-198112

sub96711-19014

main96711-19014iAA63,CA60,RA63,SA60,TA63198112-198804

main96711-19019iAA60..DLX198401-198712

MY ROAD

main96711-19019iAA60..SE,SG,ST198205-198712

44348PLATE, VANE PUMP

main44345-12010iSA60,TA63198109-198804

main44345-12010iAA60..DLX198401-198712

main44345-12020iAA6#,CA60,RA63,SA60,TA63..GT,GTT,SE,SG,ST198109-198804

main44345-12020iAA60..DLX198401-198712

main44345-12030iAA6#,CA60,RA63,SA60,TA63..GT,GTT,SE,SG,ST198109-198804

main44345-12030iAA60..DLX198401-198712

main44345-12040iAA60..DLX198401-198712

main44345-12040iCA60,RA63,SA60,TA63198109-198804

main44345-12050iAA6#,CA60,RA63,SA60,TA63..GT,GTT,SE,SG,ST198109-198804

main44345-12050iAA60..DLX198401-198712

44362RESERVOIR, OIL(FOR VANE PUMP)

main44306-12020iAA60..DLX198401-198712

MY ROAD

main44306-12020iAA60..SE,SG,ST198205-198712

main44306-14050iTA63..SE,ST198109-198305

main44360-14020iAA63198305-198507

main44360-14030iCA60,SA60198109-198804

main44360-14050iTA63..GTT198210-198507

main44360-20040iRA63198202-198210

44362ARING, O(FOR VANE PUMP OIL RESERVOIR)

main96710-01013iTA63198109-198112

sub96711-19013

main96711-19013iTA63198112-198804

main96711-19013iAA60..DLX198401-198712

MY ROAD

44391PLATE, POWER STEERING OIL RESERVOIR CAUTION

main44391-30020iAA6#,CA60,RA63,SA60,TA63..GT,GTT,SE,SG,ST198109-198804

main44391-30020iAA60..DLX198401-198712

MT ROAD

9011910072

main90119-10072

9017912022

main90179-12022

9020630001

main90206-30001

9161140814

main91611-40814

36 parts on this diagram · 6 diagrams in section
