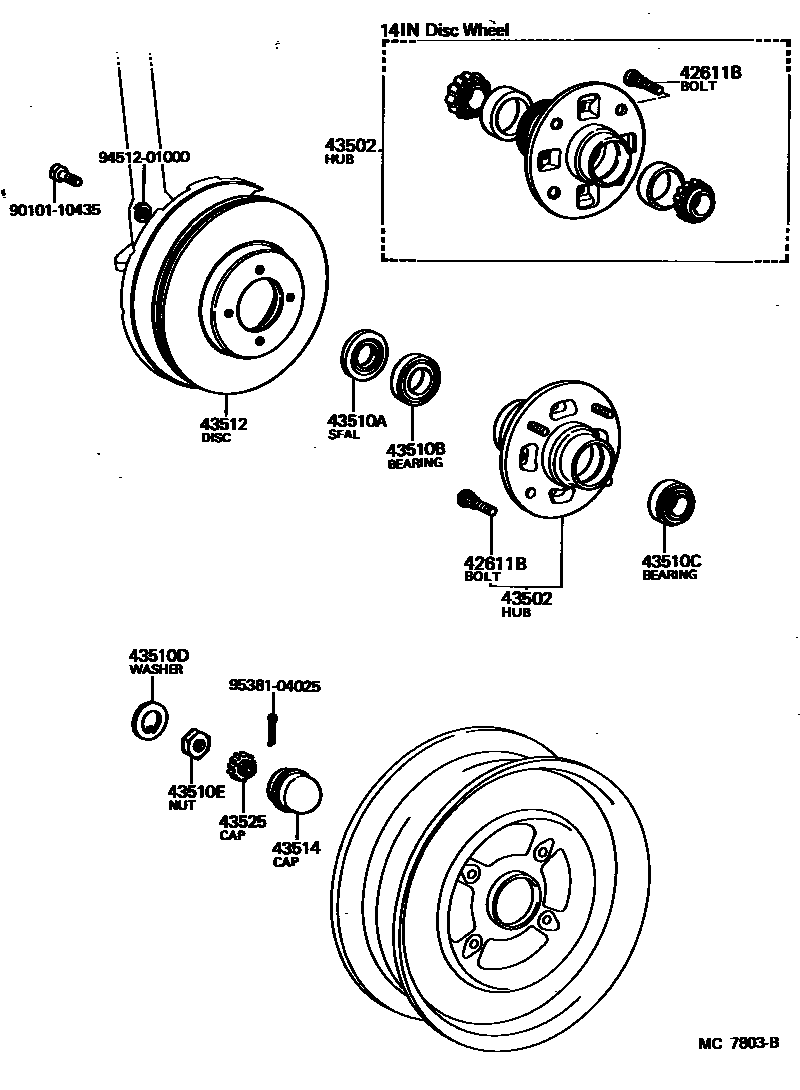

FRONT AXLE HUB

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02035×8iRA63,TA61,63198109-198307

main90942-02036×8iAA60,CA6#,SA60,TA67198109-198307

main90942-02047×8iAA63,TA63198307-198507

main90942-02048×8iAA60,CA6#,KA67,SA60,TA67198307-198804

43502HUB SUB-ASSY, FRONT AXLE

main43502-14030×2iAA60,CA6#,KA67,SA60,TA67198109-198804

main43502-29015×2iRA63,TA61,63198109-198208

main43502-29035×2iAA63,RA63,TA61,63198208-198507

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-41123×2iAA60,CA6#,KA67,SA60,TA67198109-198804

main90311-48001×2iAA63,RA63,TA61,63198109-198507

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-29068×2iAA60,CA6#,KA67,SA60,TA67198109-198804

main90368-31067×2iAA63,RA63,TA61,63198109-198507

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-17017×2iAA60,CA6#,KA67,SA60,TA67198109-198804

main90368-19037×2iAA63,RA63,TA61,63198109-198507

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-16010×2iAA60,CA6#,KA67,SA60,TA67198109-198804

main90214-20005×2iAA63,RA63,TA61,63198109-198507

43510ENUT (FOR STEERING KNUCKLE)

main90170-16137×2iAA60,CA6#,KA67,SA60,TA67198109-198804

sub94125-41600

main90170-19185×2iAA63,RA63,TA61,63198109-198507

43512DISC, FRONT

main43512-14070×2iAA60,CA6#,KA67,SA60,TA67198109-198804

main43512-24010×2iAA63,RA63,TA61,63198109-198507

43514CAP, FRONT HUB GREASE

main43514-20010×2iAA60,CA6#,KA67,SA60,TA67198109-198804

main43514-22020×2iAA63,RA63,TA61,63198109-198507

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-20011×2iAA60,CA6#,KA67,SA60,TA67198109-198804

main43525-22010×2iAA63,RA63,TA61,63198109-198507

9010110435

main90101-10435

9451201000

main94512-01000

9538104025

main95381-04025

13 parts on this diagram · 1 diagram in section
