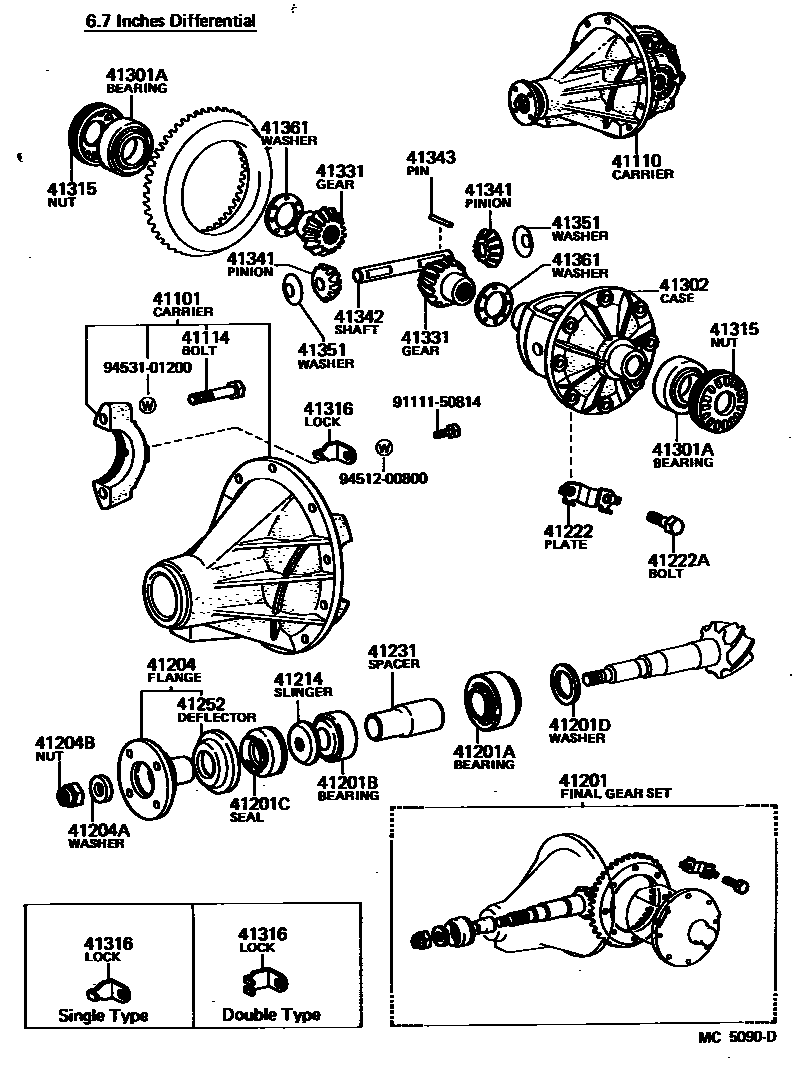

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1 0004 1 0005 1

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-14020iAA63,TA61,63..GT,SE,ST198109-198507

main41101-20020iAA60,CA6#,KA67,SA60,TA67198109-198804

sub41101-20021

sub41204-48020

main41101-22020iRA63,TA63..GT,GTT198109-198507

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-14210iRA63,TA63..GT,GTT198109-198507

main41110-14230iTA63..SE,ST198109-198305

sub41110-14231

main41110-14240iAA63,TA61198109-198507

sub41110-14241

main41110-20181iKA67..5F198109-198509

R=41:10=4.100

main41110-20182iKA67..5F198509-198804

main41110-20191iAA60..4F198109-198509

R=41:11=3.727

main41110-20192iAA60..4F198509-198804

main41110-20201iKA67..4F198109-198509

R=43:11=3.909

main41110-20202iKA67..4F198509-198804

main41110-20261iKA67,TA67..3FC198109-198509

R=43:10=4.300

main41110-20262iKA67..3FC198509-198804

R=43:10=4.300

main41110-20281iSA60..MTM..SG198109-198509

main41110-20282iSA60..5F..SG198509-198712

main41110-22141iRA63,TA63..GT,GTT198109-198507

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90101-12371iAA6#,CA6#,KA67,SA60,TA6#..DLX,GT,SE,SG,ST,STD198109-198511

sub90105-12114

main90101-12376iRA63,TA63..GT,GTT198109-198408

main90105-12053iTA63198408-198507

main90105-12114iAA60,CA67,KA67,SA60198511-198804

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-29196iTA63..SE,ST198109-198212

N=41:10

sub41201-29197

main41201-29197iCA67,KA67,TA67..MTM198212-198804

main41201-29206iTA61;TA67..3FC198109-198212

N=43:10

sub41201-29207

main41201-29207iAA63,TA61;KA67,TA67..3FC198212-198804

main41201-29226iSA60..5F..(SE,ST)198109-198212

N=41:11

sub41201-29227

main41201-29227iSA60..5F..(SE,ST)198212-198804

main41201-29236iAA60,CA60..MTM198109-198212

N=43:11

sub41201-29237

main41201-29237iKA67..4F198212-198804

main41201-29286iSA60..MTM..SG198109-198212

N=43:12

sub41201-29287

main41201-29287iSA60..MTM..SG198212-198712

main41201-39158iRA63,TA63..GT,GTT198109-198212

sub41201-39575

main41201-39575iTA63..GTT198212-198507

sub41201-39625

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-35023iRA63,TA63..GT,GTT198109-198507

main90368-34049iAA6#,CA6#,KA67,SA60,TA6#..DLX,GT,SE,SG,ST,STD198109-198804

sub90366-34019

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30022iRA63,TA63..GT,GTT198109-198507

sub90366-30078

main90368-30002iAA6#,CA6#,KA67,SA60,TA6#..DLX,GT,SE,SG,ST,STD198109-198804

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-38010iRA63,TA63..GT,GTT198109-198507

main90311-38015iAA60,CA6#,KA67,SA60,TA67198109-198804

main90311-38019iAA63,TA61,63..GT,SE,ST198109-198804

sub90311-38068

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-35396iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

main90201-35397iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

main90201-35398iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

main90201-35399iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

main90201-35400iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

main90201-35401iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

main90201-35402iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

main90201-35403iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

main90201-35404iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

main90201-35434iRA63,TA63..GT,GTT198109-198507

sub90201-35515

main90201-35435iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

sub90201-35516

main90201-35436iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

sub90201-35517

main90201-35437iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

sub90201-35518

main90201-35438iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

main90201-35439iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

main90201-35440iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

main90201-35441iRA63,TA63..GT,GTT198109-198507

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-20020iAA6#,CA6#,KA67,SA60,TA6#..DLX,GT,SE,SG,ST,STD198109-198804

main41204-20030iRA63,TA63..GT,GTT198109-198507

41204AWASHER, PLATE (FOR REAR DRIVE PINION)

main90201-18485iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

41204BNUT (FOR REAR DRIVE PINION)

main90179-18001iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-20020iAA6#,CA6#,KA67,SA60,TA6#..DLX,GT,SE,SG,ST,STD198109-198804

main41214-30021iRA63,TA63..GT,GTT198109-198507

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-28010iAA60,CA67,KA67,SA60198511-198804

main41222-30030iAA6#,CA6#,KA67,SA60,TA6#..DLX,GT,SE,SG,ST,STD198109-198511

sub41222-28010

main41222-30040iRA63,TA63..GT,GTT198109-198507

sub41222-35030

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11353iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-22010iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-22010iAA6#,CA6#,KA67,SA60,TA6#..DLX,GT,SE,SG,ST,STD198109-198804

main41252-30010iRA63,TA63..GT,GTT198109-198507

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90368-41001iAA63,TA61,63..GT,SE,ST198109-198804

main90368-41050iAA60,CA6#,KA67,SA60,TA67198109-198804

KOYO

main90368-41053iAA60,CA6#,KA67,SA60,TA67198109-198804

NSK

sub90368-41050

main90368-41056iAA60,CA6#,KA67,SA60,TA67198109-198804

NACHI

sub90368-41050

main90368-45002iRA63,TA63..GT,GTT198109-198507

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41302-14020iRA63,TA63..GT,GTT198109-198507

W/LSD

sub41302-22020

sub90368-50006

main41311-14030iAA63,TA61,63..GT,SE,ST198109-198804

sub41311-14031

sub41351-12030

main41311-22030iAA60,CA6#,KA67,SA60,TA67198109-198704

sub41311-22031

sub41351-12030

main41311-22031iAA60,CA67,KA67,SA60198704-198804

main41311-22050iRA63,TA63..GT,GTT198109-198507

sub41311-22060

sub90368-50006

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-22011iAA60,CA6#,KA67,SA60,TA67198109-198804

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-22011iAA60,CA6#,KA67,SA60,TA67198109-198804

SINGLE TYPE

main41317-22011iAA60,CA6#,KA67,SA60,TA67198109-198804

DOUBLE TYPE

41331GEAR, REAR DIFFERENTIAL SIDE

main41305-14010iRA63,TA63..GT,GTT198109-198507

W/LSD

sub41305-14011

main41331-14030iAA63,TA61,63..GT,SE,ST198109-198507

main41331-22020iAA60,CA6#,KA67,SA60,TA67198109-198509

main41331-22021iAA60,CA67,KA67,SA60198509-198804

main41331-22041iRA63,TA63..GT,GTT198109-198507

sub41331-14040

41341PINION, REAR DIFFERENTIAL

main41341-12030iAA6#,CA67,KA67,SA60198502-198804

main41341-14031iRA63,TA63..GT,GTT198109-198507

W/LSD

main41341-22020iAA6#,CA6#,KA67,SA60,TA6#..DLX,GT,SE,SG,ST,STD198109-198502

sub41341-12030

main41341-30020iRA63,TA63..GT,GTT198109-198507

sub41341-30050

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-22010iAA6#,CA6#,KA67,SA60,TA6#..DLX,GT,SE,SG,ST,STD198109-198804

main41342-22020iRA63,TA63..GT,GTT198109-198507

sub41342-22021

41343PIN, REAR DIFFERENTIAL PINION SHAFT

main90250-04193iAA6#,CA6#,KA67,SA60,TA6#..DLX,GT,SE,SG,ST,STD198109-198804

main90250-06058iRA63,TA63..GT,GTT198109-198507

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-12030iAA60,CA67,KA67,SA60198704-198804

main41351-30060iRA63,TA63..GT,GTT198109-198507

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-22020iAA6#,CA6#,KA67,SA60,TA6#..DLX,GT,SE,SG,ST,STD198109-198804

main41361-22030iAA6#,CA6#,KA67,SA60,TA6#..DLX,GT,SE,SG,ST,STD198109-198804

main41361-22040iAA6#,CA6#,KA67,SA60,TA6#..DLX,GT,SE,SG,ST,STD198109-198804

main41361-22051iRA63,TA63..GT,GTT198109-198507

main41361-22061iRA63,TA63..GT,GTT198109-198507

main41361-22071iRA63,TA63..GT,GTT198109-198507

main41361-22081iRA63,TA63..GT,GTT198109-198507

main41361-22101iRA63,TA63..GT,GTT198109-198507

main41361-22111iRA63,TA63..GT,GTT198109-198507

main41361-22140iAA6#,CA6#,KA67,SA60,TA6#..DLX,GT,SE,SG,ST,STD198109-198804

main41361-22150iAA6#,CA6#,KA67,SA60,TA6#..DLX,GT,SE,SG,ST,STD198109-198804

main41361-22160iAA6#,CA6#,KA67,SA60,TA6#..DLX,GT,SE,SG,ST,STD198109-198804

main41361-30040iRA63,TA63..GT,GTT198109-198507

main41361-30050iRA63,TA63..GT,GTT198109-198507

main41361-30060iRA63,TA63..GT,GTT198109-198507

main41361-30070iRA63,TA63..GT,GTT198109-198507

9111150814

main91111-50814

9451200800

main94512-00800

9453101200

main94531-01200

29 parts on this diagram · 5 diagrams in section
