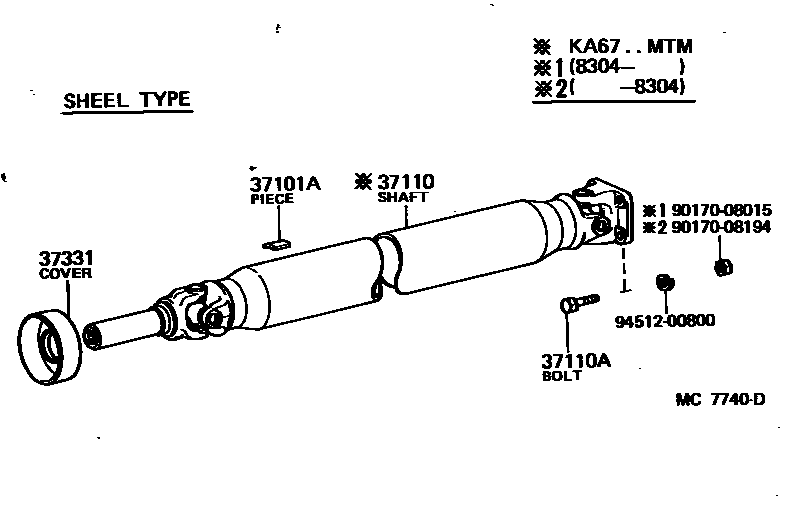

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1 0008 1

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01132iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

main90937-01134iAA60,CA67,KA67,SA60198608-198804

main90937-01136iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198608

main90937-01140iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198608

main90937-01147iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

main90937-01148iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

main90937-01149iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

main90937-01150iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

main90937-01151iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

main90937-01152iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198804

main90937-01153iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198608

main90937-01154iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198608

main90937-01155iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198608

main90937-01156iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198608

main90937-01157iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198608

main90937-01158iAA6#,CA6#,KA67,RA63,SA60,TA6#198109-198608

main90937-01311iCA67,KA67,SA60198708-198804

main90937-01312iCA67,KA67,SA60198708-198804

main90937-01313iCA67,KA67,SA60198708-198804

main90937-01314iCA67,KA67,SA60198708-198804

37110SHAFT ASSY, PROPELLER

main37110-12330iTA63..5F..GTT198210-198507

main37110-12410iRA63;TA63..4FC..GTT198109-198507

main37110-14140iAA60,CA6#,SA60198109-198804

SHELL TYPE

main37110-14150iAA63,TA61,63..5F..(GT,SE,ST)198109-198804

main37110-15030iTA67..MTM198109-198308

sub37110-15010

main37110-15040iTA67..3FC198109-198308

sub37110-15020

main37110-15060iKA67..MTM198308-198804

SHELL TYPE

sub37110-15050

main37110-22035iAA60,SA60198109-198804

SOLID TYPE

main37110-22053iKA67..3FC198308-198607

SOLID TYPE

sub37110-22210

main37110-22210iKA67..3FC198607-198804

37110ABOLT (FOR PROPELLER SHAFT)

main90101-08062iAA60,CA6#,RA63,SA60,TA6#198109-198304

main90101-08082iAA6#,CA6#,KA67,SA60,TA6#198304-198804

37331COVER, SLIDING SHAFT DUST

main37331-12010iAA6#,KA67,SA60,TA6#..MTM..(DLX,GT,SE,SG,ST,STD)198109-198804

main37331-30010iTA63..5F..GTT198109-198804

9017008015

main90170-08015

9017008194

main90170-08194

9451200800

main94512-00800

7 parts on this diagram · 7 diagrams in section
