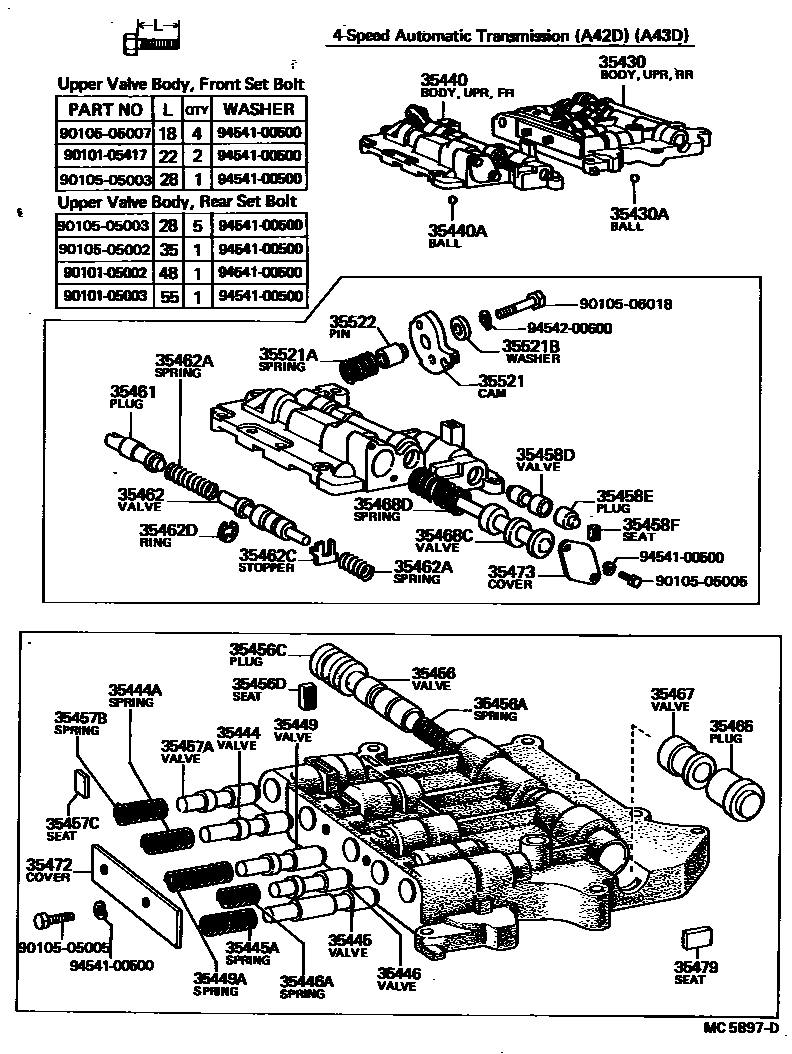

VALVE BODY & OIL STRAINER (ATM)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

35430BODY ASSY, REAR UPPER VALVE

main35430-10010iAA60,KA67..ATM198305-198804

main35430-12010iAA60..4FC198305-198712

main35430-14030iTA63..4FC..GTT198210-198308

main35430-20010iCA60..4FC198202-198405

main35430-22060iAA60,TA67..3FC198109-198305

main35430-22072iSA60,TA63..4FC..(SE,SG,ST)198109-198804

main35430-28020iTA63..4FC198308-198507

35430ABALL (FOR REAR UPPER VALVE BODY)

main35495-22010×5iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

sub35495-22020

main90360-06023iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35440BODY ASSY, FRONT UPPER VALVE

main35440-14020iTA63..4FC198308-198409

main35440-14021iTA63..4FC198409-198507

main35440-20020iCA60..4FC198202-198405

sub35440-20021

main35440-22031iAA60,KA67,TA67..3FC198109-198804

main35440-22041iAA60,SA60,TA63..4FC..(SE,SG,ST)198109-198409

main35440-22120iAA60,SA60..4FC198409-198804

main35440-30050iTA63..4FC..GTT198210-198308

sub35440-30051

35440ABALL (FOR FRONT UPPER VALVE BODY)

main35495-22010iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

sub35495-22020

35444VALVE, INTERMEDIATE MODULATOR

main35444-22010iCA60..4FC198202-198405

35444ASPRING, COMPRESSION (FOR INTERMEDIATE MODULATOR VALVE)

main90501-11001iAA60,KA67,TA67..3FC198109-198511

main90501-11009iTA63..4FC..GTT198210-198507

main90501-11011iCA60..4FC198202-198405

35445VALVE, LOW MODULATOR

main35445-22010iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35445ASPRING, COMPRESSION (FOR LOW MODULATOR VALVE)

main90501-08725iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35446VALVE, GOVERNOR MODULATOR

main35446-20010iCA60,TA63..4FC198308-198804

main35446-22010iAA60,KA67,SA60..ATM198308-198804

35446ASPRING, COMPRESSION (FOR GOVERNOR MODULATOR VALVE)

main90501-07019iTA63..4FC198305-198308

main90501-07688iAA60,SA60,TA63,67..ATM198109-198305

35449VALVE, SEQUENCE

main35447-22010iAA60,KA67,SA60,TA63,67..ATM198109-198804

UPR VALVE BODY

main35449-22010iAA60,KA67,SA60,TA63,67..ATM..(DLX,SE,SG,ST)198109-198804

LWR VALVE BODY

35449ASPRING, COMPRESSION (FOR SEQUENCE VALVE)

main90501-12055×2iAA60,KA67..3FC198305-198804

UPR VALVE BODY

main90501-12726×2iTA63..4FC198305-198507

35456VALVE, 2-3 SHIFT

main35456-22010iCA60..4FC198202-198405

main35456-30040iAA60,SA60,TA63..4FC..(SE,SG,ST)198109-198804

35456ASPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)

main90501-08013iAA60,SA60,TA63..4FC..(SE,SG,ST)198109-198804

main90501-08724iTA63..4FC..GTT198210-198507

35456CPLUG (FOR 2-3 SHIFT VALVE)

main35452-22010iCA60..4FC198202-198405

main35452-30020iAA60,SA60,TA63..4FC..(SE,SG,ST)198109-198804

35456DSEAT (FOR 2-3 SHIFT VALVE)

main35493-22020iCA60..4FC198202-198405

35457AVALVE, DETENT REGULATOR

main35457-22010iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35457BSPRING, COMPRESSION (FOR DETENT REGULATOR VALVE)

main90501-09006iTA63..4FC..GTT198302-198308

main90501-09022iTA63..4FC198308-198507

main90501-09025iCA60..4FC198202-198405

main90501-09739iAA60,SA60,TA63,67..ATM198109-198302

35457CSEAT (FOR DETENT REGULATOR VALVE)

main35438-22020iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35458DVALVE, CUT BACK

main35458-22010iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35458EPLUG (FOR CUT BACK VALVE)

main35459-22010iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35458FSEAT (FOR CUT BACK VALVE)

main35493-22010iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35461PLUG, DOWN SHIFT

main35408-22020iAA60,KA67,SA60,TA63,67..ATM..(DLX,SE,SG,ST)198109-198804

main35408-30010iTA63..4FC..GTT198210-198507

main35408-30030iCA60..4FC198202-198405

35462VALVE, THROTTLE

main35462-22011iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35462ASPRING, COMPRESSION (FOR THROTTLE VALVE)

main90501-07680iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

main90501-12011iAA60,SA60,TA63,67..ATM198109-198308

main90501-12029iCA60..4FC198202-198405

main90501-12077iTA63..4FC198308-198507

35462CSTOPPER, VALVE VIBRATING

main35422-22010iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35462DRING, E (FOR THROTTLE VALVE)

main90523-06023×6iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35465PLUG, INTERMEDIATE SHIFT VALVE

main35465-22010iAA60,KA67,TA67..3FC198109-198804

main35465-30010iAA60,SA60,TA63..4FC..(SE,SG,ST)198109-198804

35467VALVE, INTERMEDIATE SHIFT

main35467-22010iTA63..4FC..GTT198210-198507

main35467-30020iAA60,SA60,TA63..4FC..(SE,SG,ST)198109-198804

35468CVALVE, SECONDARY REGULATOR

main35468-22010iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35468DSPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)

main90501-16683iAA60,KA67,TA67..3FC198109-198804

main90501-19001iAA60,CA60,SA60,TA63..4FC198109-198804

35472COVER, VALVE BODY, NO.2

main35472-22010iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35473COVER, TRANSMISSION VALVE BODY

main35473-22010iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35479SEAT, INTERMEDIATE SHIFT VALVE

main35479-22010iAA60,KA67,TA67..3FC198109-198804

35521CAM, THROTTLE VALVE

main35521-20010iCA60..4FC198202-198405

main35521-22030iAA60,KA67,SA60,TA63,67..ATM..(DLX,SE,SG,ST)198109-198804

main35521-30010iTA63..4FC..GTT198210-198507

35521ASPRING (FOR THROTTLE VALVE CAM RETURN)

main90508-12331iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35521BWASHER (FOR THROTTLE VALVE CAM SET)

main90201-06472iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35522PIN, THROTTLE VALVE CAM

main35522-22010iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

9010105002

main90101-05002

9010105003

main90101-05003

9010105417

main90101-05417

9010505002

main90105-05002

9010505003

main90105-05003

9010505005

main90105-05005

9010505007

main90105-05007

9010506018

main90105-06018

9454100500

main94541-00500

9454200600

main94542-00600

48 parts on this diagram · 10 diagrams in section
