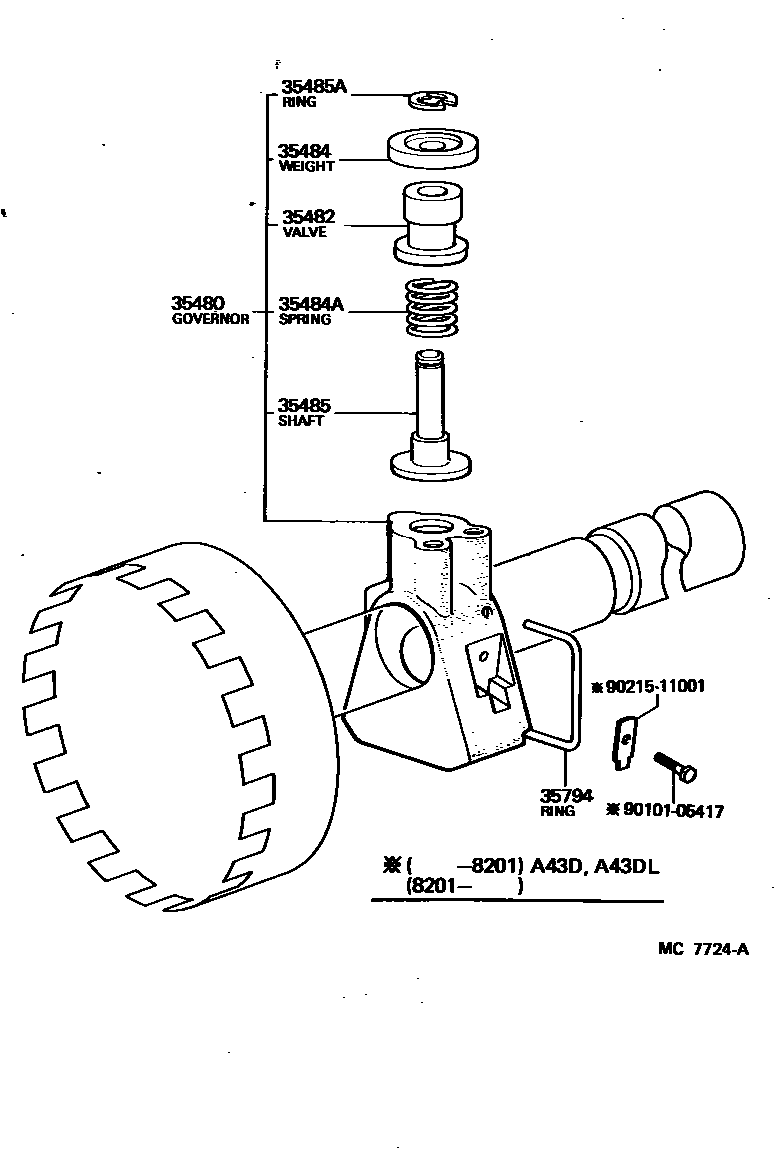

REAR OIL PUMP & GOVERNOR (ATM)

0001 1 0003 1

35480GOVERNOR

main35480-14010iTA63..4FC198308-198507

main35480-20010iAA60..3FC198109-198201

main35480-22020iTA67..3FC198109-198201

main35480-26010iAA60,KA67..3FC198201-198804

main35480-30040iSA60,TA63..4FC198109-198201

main35480-30060iAA60..4FC198305-198712

main35480-30080iCA60..4FC198202-198405

35482VALVE, GOVERNOR

main35482-14010iTA63..4FC198308-198507

main35482-20010iCA60..4FC198202-198405

main35482-22010iSA60..4FC198308-198804

main35482-30030iAA60,KA67..3FC198305-198804

35484WEIGHT, GOVERNOR, OUTER

main35484-20020iCA60..4FC198202-198405

main35484-22010iAA60,KA67,SA60,TA63,67..ATM198109-198804

35484ASPRING, COMPRESSION (FOR GOVERNOR WEIGHT)

main90501-08051iTA63..4FC198308-198507

OUTER

main90501-09015iAA60..3FC198109-198305

main90501-09030iCA60..4FC198202-198405

main90501-09049iTA63..4FC198308-198507

INNER

main90501-09673iSA60,TA63,67..ATM198109-198305

35485SHAFT, GOVERNOR VALVE

main35485-14010iTA63..4FC198308-198507

main35485-22010iAA60,CA60,SA60,TA63,67..ATM198109-198308

35485ARING, E (FOR GOVERNOR VALVE SHAFT)

main90523-05020iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35794RING, GOVERNOR RETAINING

main35794-22010iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

9010105417

main90101-05417

9021511001

main90215-11001

9 parts on this diagram · 2 diagrams in section
