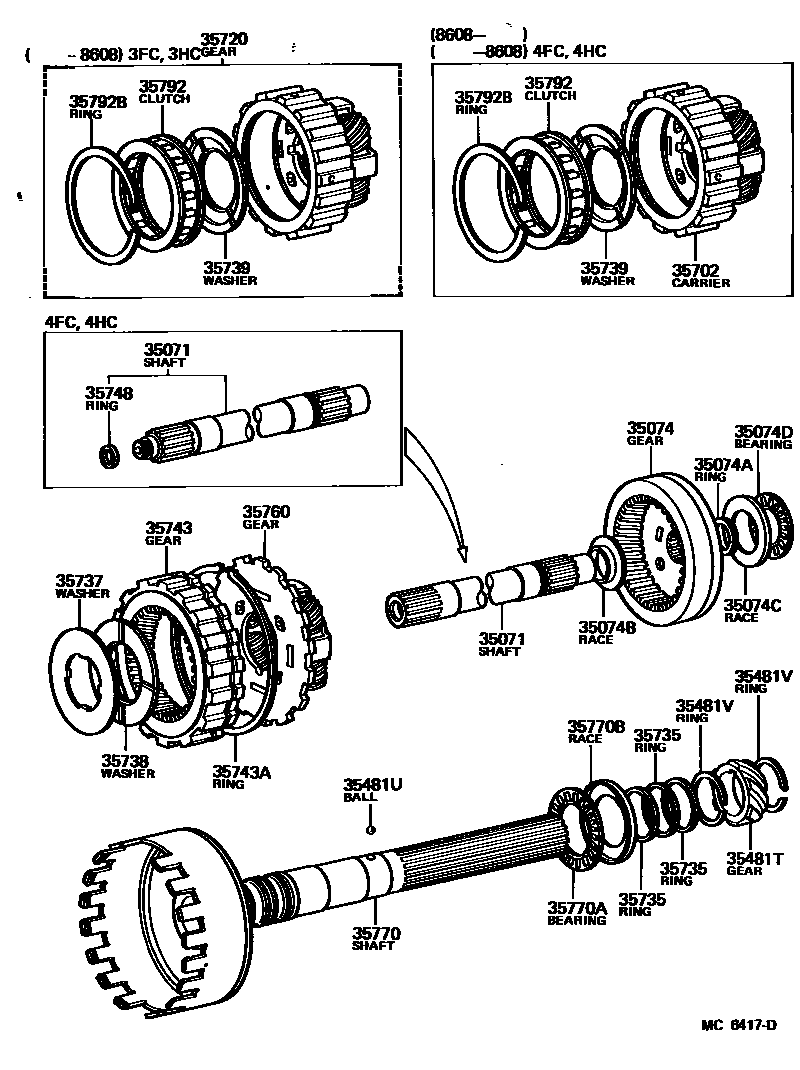

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

35071SHAFT SUB-ASSY, PLANETARY INTERMEDIATE

main35708-22011iAA60,KA67,TA67..3FC198109-198804

main35708-30021iAA60,SA60,TA63..ATM..(SE,SG,ST)198109-198804

main35708-30031iCA60..4FC198202-198405

main35708-30041iTA63..4FC..GTT198210-198507

35074GEAR SUB-ASSY, REAR PLANETARY RING

main35074-22010iAA60,KA67,TA67..3FC198109-198508

sub35074-30010

main35074-30010iAA60,CA60,SA60,TA63..ATM..(SE,SG,ST)198109-198804

main35074-30020iTA63..4FC..GTT198210-198308

sub35074-30030

main35074-30030iTA63..4FC198308-198507

35074ARING, SET (FOR REAR PLANETARY RING GEAR)

main90522-20037iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35074BRACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR FRONT)

main35789-22050iAA60,CA60,SA60,TA63,67..ATM198109-198804

35074CRACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR REAR)

main35789-22020iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35074DBEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR)

main90374-28014iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35481TGEAR, SPEEDMETER DRIVE (ATM)

main33481-25030iAA60,CA60,KA67,TA67..ATM198109-198608

N=6

main33481-25031iAA60,KA67..3FC198608-198804

main33481-26010iSA60,TA63..4FC198109-198608

main33481-26011iSA60..4FC198608-198804

N=6

35481UKEY OR BALL, SPEEDMETER DRIVE GEAR (ATM)

main90360-06004iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35481VRING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)

main90520-28009iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35702CARRIER SUB-ASSY, PLANETARY W/LOCK GEAR

main35704-22020iAA60,KA67..3FC198608-198804

main35704-30020iAA60,CA60,SA60,TA63..4FC..(SE,SG,ST)198109-198804

sub35704-22030

main35704-30030iTA63..4FC..GTT198210-198308

main35704-30040iTA63..4FC198308-198507

35720GEAR ASSY, FRONT PLANETARY

main35720-14010iAA60,KA67..3FC198109-198608

main35720-22012iTA67..3FC198109-198308

35735RING, PLANETARY OUTPUT SNAP

main35735-22010iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35737WASHER, PLANETARY CARRIER THRUST

main35737-22010iAA60,CA60,SA60,TA63,67..ATM..(DLX,SE,SG,ST)198109-198804

main35737-30020iTA63..4FC..GTT198210-198308

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35738-22010iAA60,CA60,KA67,SA60,TA63,67..ATM..(DLX,SE,SG,ST)198109-198804

main35738-30010iTA63..4FC..GTT198210-198308

main35738-30030iTA63..4FC198308-198507

35739WASHER, PLANETARY CARRIER THRUST, NO.3

main35739-14010iAA60,KA67..3FC198109-198804

main35739-22011iAA60..4FC198109-198804

main35739-30010iTA63..4FC..GTT198210-198308

main35739-30020iTA63..4FC198308-198507

35743GEAR, FRONT PLANETARY RING

main35743-22010iCA60,SA60,TA63,67..ATM..(DLX,SE,SG,ST)198109-198804

main35743-30010iTA63..4FC..GTT198109-198804

35743ARING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR)

main90520-99121iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35748RING, INTERMEDIATE SHAFT SLEEVE OIL SEAL

main35748-30010iAA60,CA60,SA60,TA63..4FC198109-198804

35760GEAR ASSY, REAR PLANETARY

main35760-22020iAA60,TA67..3FC198109-198208

sub35760-30010

main35760-30010iCA60,SA60,TA63..4FC198109-198508

sub35760-30020

main35760-30020iAA60,KA67,SA60..ATM198508-198804

main35760-30030iTA63..4FC..GTT198210-198308

main35760-30040iTA63..4FC198308-198507

35770SHAFT ASSY, OUTPUT

main35770-14010iAA60,CA60,KA67,SA60,TA63,67..ATM..(DLX,SE,SG,ST)198201-198508

sub35770-14020

main35770-14020iAA60,KA67,SA60..ATM198508-198804

main35770-22012iAA60,SA60,TA63,67..ATM198109-198201

sub35770-14010

main35770-30010iTA63..4FC..GTT198210-198507

35770ABEARING, THRUST (FOR OUTPUT SHAFT)

main90374-38013iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35770BRACE, THRUST BEARING (FOR OUTPUT SHAFT)

main35789-22040iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

35792CLUTCH, 1 WAY, NO.2

main35792-20010iCA60..4FC198202-198804

sub35792-30011

sub35739-14010

main35792-22020iAA60..4FC198109-198405

sub35792-20010

main35792-30010iTA63..4FC..GTT198210-198305

sub35792-30011

main35792-30011iAA60,KA67..3FC198109-198804

main35792-30030iTA63..4FC198308-198804

35792BRING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)

main90521-79148iAA60,CA60,KA67,SA60,TA63,67..ATM198109-198804

24 parts on this diagram · 1 diagram in section
