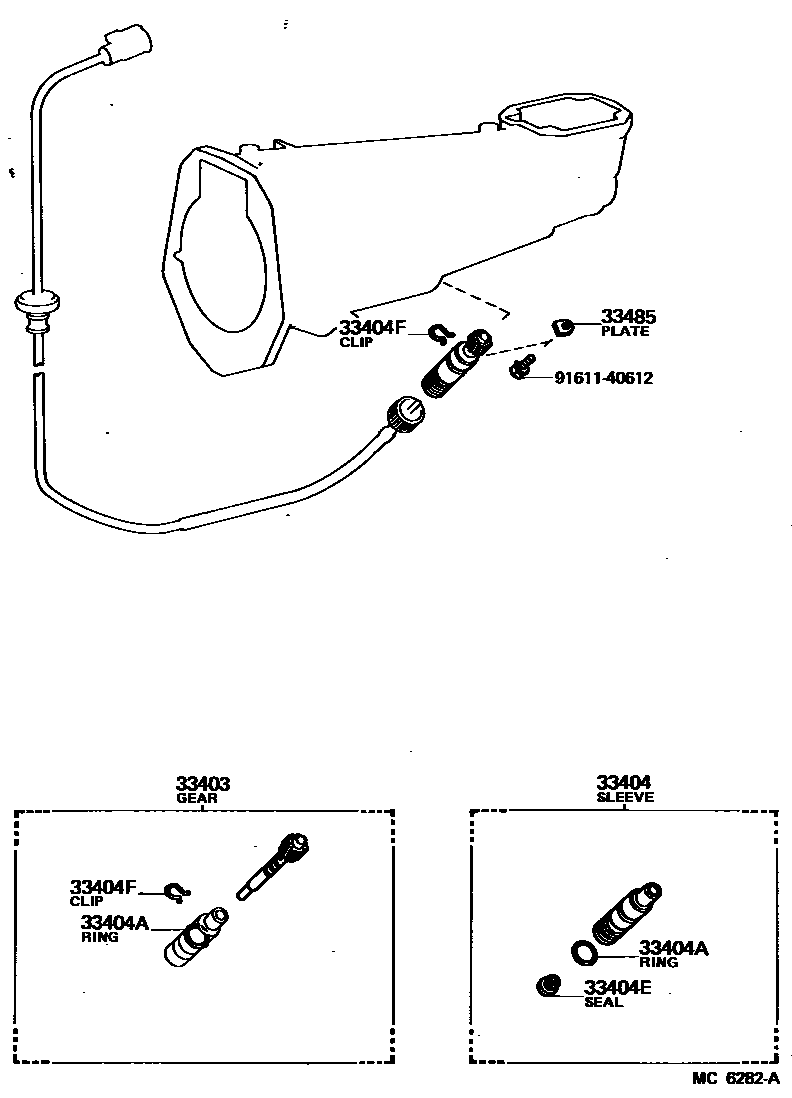

SPEEDOMETER DRIVEN GEAR (MTM)

0001 1 0002 1

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-19155iAA60..5F198109-198712

main33403-19155iKA67..MTM198508-198804

main33403-19165iAA63,TA61198109-198507

N=21

main33403-19165iKA67,TA67..MTM198109-198804

W/165R13 TIRE,N=21

main33403-19185iAA60..4F198109-198804

main33403-19195iSA60..MTM..SG198109-198712

main33403-29125iCA67198508-198804

main33403-29135iRA63,TA63..5F..(GT,GTT)198109-198507

main33403-29135iCA67198508-198804

main33482-39035iCA67198202-198508

main33482-39045iCA6#..5F198202-198508

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-16010iAA6#,KA67,SA60,TA6#..MTM..(DLX,GT,SE,SG,ST,STD)198109-198804

main33404-22010iRA63,TA63..5F..(GT,GTT)198109-198804

main33404-35010iCA6#..5F198202-198508

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iCA6#..5F198202-198508

main96710-02018iAA60,SA60,TA6#..MTM198109-198210

sub96711-19018

main96710-02030iRA63198109-198111

sub96711-24030

main96711-24018iAA6#,KA67,SA60,TA6#..MTM..(DLX,GT,SE,SG,ST,STD)198210-198804

main96711-24030iCA67198111-198804

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iAA6#,CA6#,KA67,RA63,SA60,TA6#..MTM198109-198804

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iAA6#,CA6#,KA67,RA63,SA60,TA6#..MTM198109-198804

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-14010iAA6#,KA67,SA60,TA6#..MTM..(DLX,GT,SE,SG,ST,STD)198109-198804

main33485-30020iTA63..5F..GTT198109-198804

9161140612

main91611-40612

7 parts on this diagram · 2 diagrams in section
