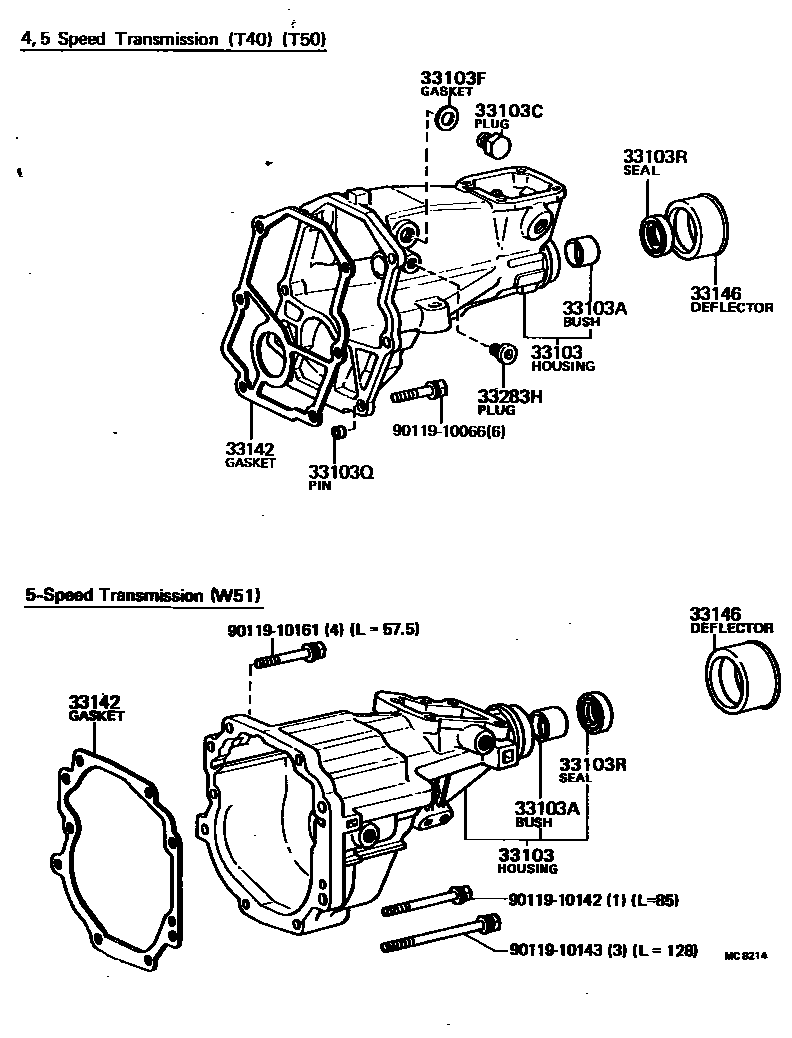

EXTENSION HOUSING (MTM)

0001 1 0002 1

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-12120iAA60,KA67..4F198503-198804

main33103-12130iAA6#,KA67,SA60..5F198503-198804

main33103-14030iAA60,KA67,SA60,TA67..4F198109-198403

sub33103-14031

main33103-14031iAA60,KA67..4F198403-198503

sub33103-12120

main33103-14040iAA6#,KA67,SA60,TA6#..5F..(GT,SE,SG,ST)198109-198403

sub33103-14041

main33103-14041iAA6#,KA67,SA60..5F198403-198503

sub33103-12130

main33103-20100iCA6#..5F198202-198306

main33103-20101iCA6#..5F198306-198508

main33103-22090iCA67198109-198804

sub33103-22091

33103ABUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90999-72022iAA6#,KA67,SA60,TA6#..MTM..(DLX,GT,SE,SG,ST,STD)198109-198403

main90999-72023iRA63,TA63..5F..(GT,GTT)198109-198512

sub90999-73139

main90999-73062iCA6#..5F198202-198508

33103CPLUG, NO.1(FOR EXTENSION HOUSING)

main90109-18001iAA60,KA67,SA60,TA67..4F198109-198804

main90341-18006iAA6#,KA67,SA60..5F198308-198804

main90341-18049iAA6#,SA60,TA6#..5F..(GT,SE,SG,ST)198109-198308

33103FGASKET(FOR EXTENSION HOUSING PLUG NO.1)

main90430-18007iAA6#,KA67,SA60,TA6#..MTM..(DLX,GT,SE,SG,ST,STD)198109-198410

sub90430-18008

main90430-18008iAA6#,KA67,SA60..MTM198410-198804

33103QPIN, RING(FOR EXTENSION HOUSING)

main90253-13017iAA6#,KA67,SA60,TA6#..MTM..(DLX,GT,SE,SG,ST,STD)198109-198804

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-32010iAA6#,KA67,SA60,TA6#..MTM..(DLX,GT,SE,SG,ST,STD)198109-198804

main90311-38043iTA63..5F..GTT198109-198804

sub90311-38040

33142GASKET, EXTENSION HOUSING(MTM)

main33142-14010iAA6#,KA67,SA60,TA6#..MTM..(DLX,GT,SE,SG,ST,STD)198109-198804

main33142-20020iCA6#..5F198202-198508

main33142-22010iRA63,TA63..5F..(GT,GTT)198109-198804

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-12010iAA6#,KA67,SA60,TA6#..MTM..(DLX,GT,SE,SG,ST,STD)198109-198804

main33146-30010iTA63..5F..GTT198109-198804

sub33146-30020

33283HPLUG, W/HEAD STRAIGHT SCREW

main90341-10007iCA67198710-198804

sub90341-10065

main90341-10065iAA6#,KA67,RA63,SA60,TA6#..5F198109-198804

9011910066

main90119-10066

9011910142

main90119-10142

9011910143

main90119-10143

9011910161

main90119-10161

13 parts on this diagram · 2 diagrams in section
