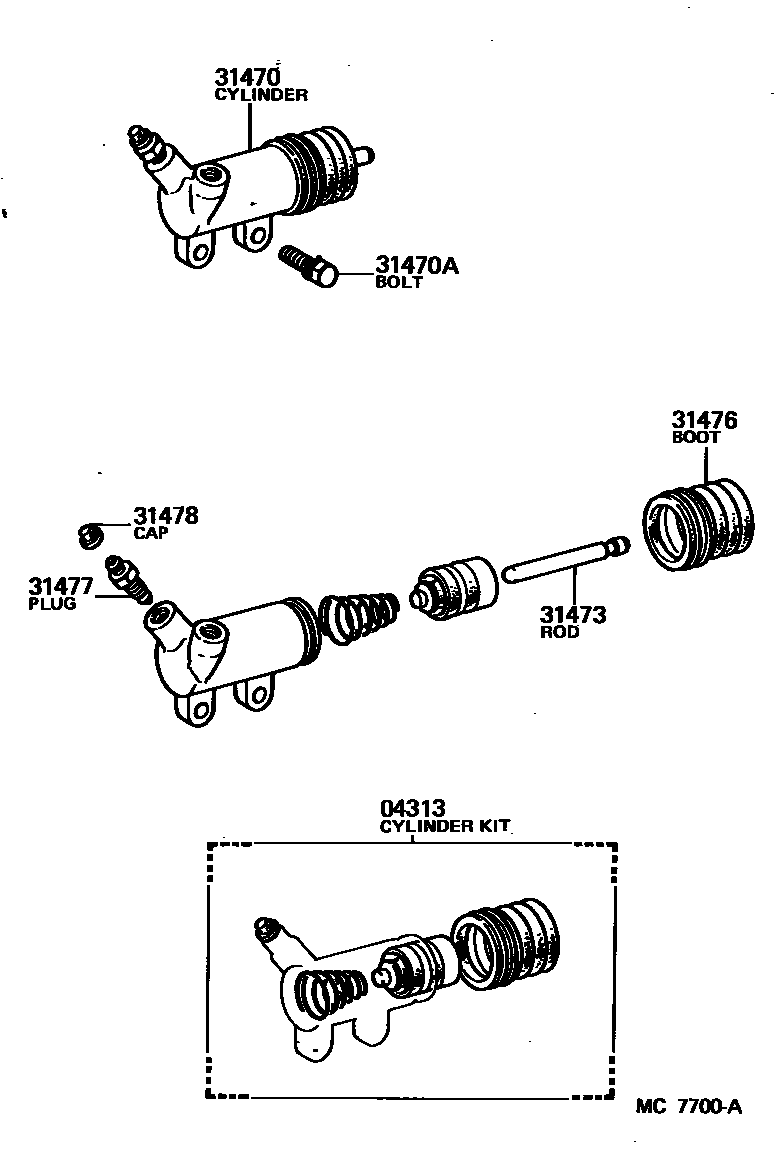

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-22020iAA6#,CA6#,KA67,RA63,SA60,TA6#..MTM¥1,040198109-198804

sub04313-12030¥800

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-12050iAA63¥8,000198305-198507

main31470-12080iCA67¥7,200198508-198804

main31470-14021iRA63,TA63..5F..(GT,GTT)¥7,400198109-198507

sub31470-20190¥7,500

main31470-14040iAA60,SA60..MTM¥7,900198109-198804

main31470-20151iKA67,TA6#..MTM..(DLX,GT,SE,SG,ST,STD)¥7,400198109-198804

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-40825iAA6#,CA6#,KA67,RA63,SA60,TA6#..MTM¥160198109-198403

sub91611-B0825¥160

main91611-60825iAA6#,CA6#,KA67,SA60,TA63..MTM¥140198403-198804

sub91611-B0825¥160

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-20031iAA60,KA67,SA60..MTM¥470198109-198804

main31473-22010iCA67¥720198109-198804

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iAA6#,CA6#,KA67,RA63,SA60,TA6#..MTM¥230198109-198804

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iAA6#,CA6#,KA67,RA63,SA60,TA6#..MTM¥180198109-198804

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iAA6#,CA6#,KA67,RA63,SA60,TA6#..MTM¥160198109-198804

7 parts on this diagram · 2 diagrams in section
