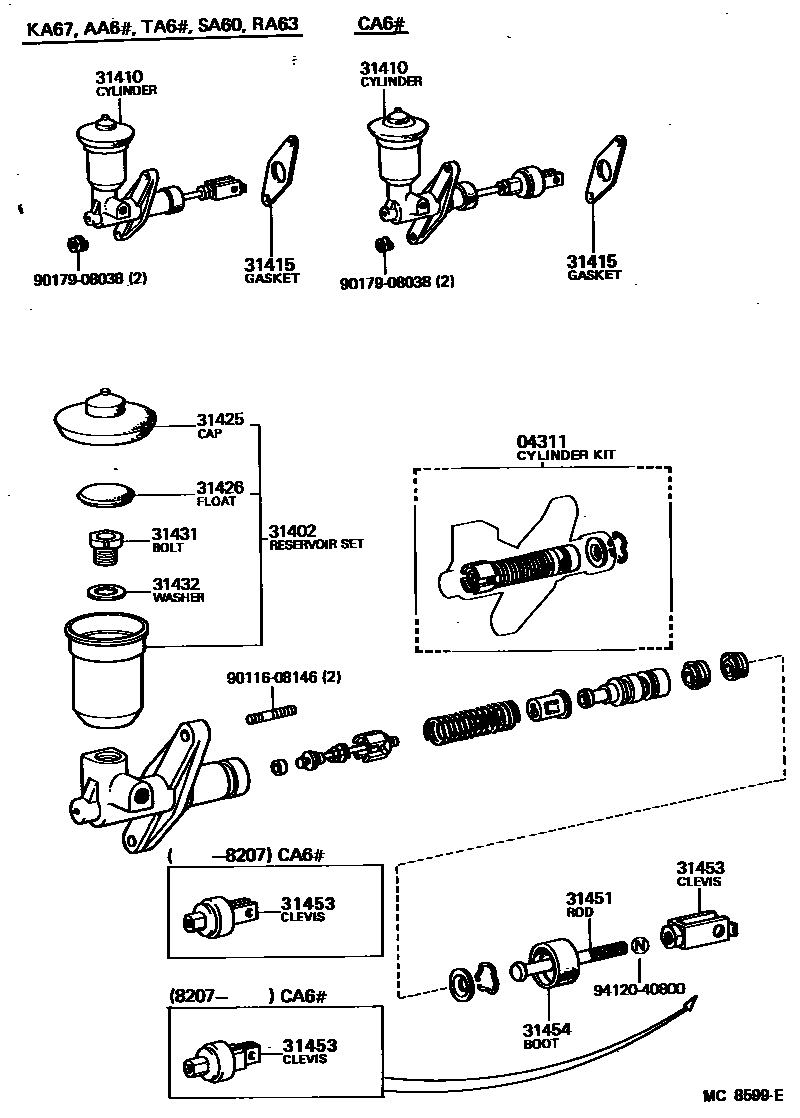

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-12020iAA60,KA67,RA63,SA60,TA6#..MTM..(DLX,GT,SE,SG,ST,STD)198109-198804

sub04311-12021

main04311-14011iAA63,TA63..5F..(GT,GTT)198210-198507

main04311-30080iCA6#..5F198202-198710

sub04311-14020

main04311-30092iCA67198710-198804

sub04311-14013

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-30030iAA60,CA6#,KA67,RA63,SA60,TA6#..MTM..(DLX,GT,SE,SG,ST,STD)198109-198804

main47202-12050iAA63,TA63..5F..(GT,GTT)198210-198507

31410CYLINDER ASSY, CLUTCH MASTER

main31410-14120iAA60,RA63,SA60,TA6#..MTM..(DLX,GT,SE,SG,ST,STD)198109-198305

sub31410-14121

main31410-14140iAA63,TA63198305-198507

sub31410-14240

main31410-14160iAA60,KA67,SA60,TA67..MTM198305-198804

sub31410-14161

main31410-14180iCA6#..5F198305-198704

sub31410-14181

main31410-14181iCA67198704-198804

sub31410-14182

main31410-22070iTA63..5F..GTT198210-198305

sub31410-22071

main31410-24011iCA6#..5F198202-198207

sub31410-24H00

main31410-24012iCA6#..5F198207-198305

sub31410-22140

31415GASKET, CLUTCH MASTER CYLINDER

main31415-30030iAA6#,CA6#,KA67,RA63,SA60,TA6#..MTM198111-198804

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iAA6#,CA6#,KA67,RA63,SA60,TA6#..MTM198109-198804

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iAA6#,CA6#,KA67,RA63,SA60,TA6#..MTM198109-198804

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-30010iAA6#,CA6#,KA67,RA63,SA60,TA6#..MTM198109-198804

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010iAA6#,CA6#,KA67,RA63,SA60,TA6#..MTM198109-198804

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-20050iAA6#,KA67,RA63,SA60,TA6#..MTM198109-198611

main31451-22060iAA60,KA67,SA60..MTM198611-198804

main31451-30060iCA6#..5F198202-198804

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-30040iCA6#..5F198202-198207

main31404-30041iCA6#..5F198207-198706

main31404-30050iCA67198706-198804

sub31404-30051

main31453-22010iAA6#,KA67,RA63,SA60,TA6#..MTM198109-198611

sub31453-35010

main31453-35010iAA60,KA67,SA60..MTM198611-198804

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iAA6#,KA67,RA63,SA60,TA6#..MTM198109-198804

main31454-24010iCA6#..5F198202-198804

9011608146

main90116-08146

9017908038

main90179-08038

9412040800

main94120-40800

14 parts on this diagram · 1 diagram in section
