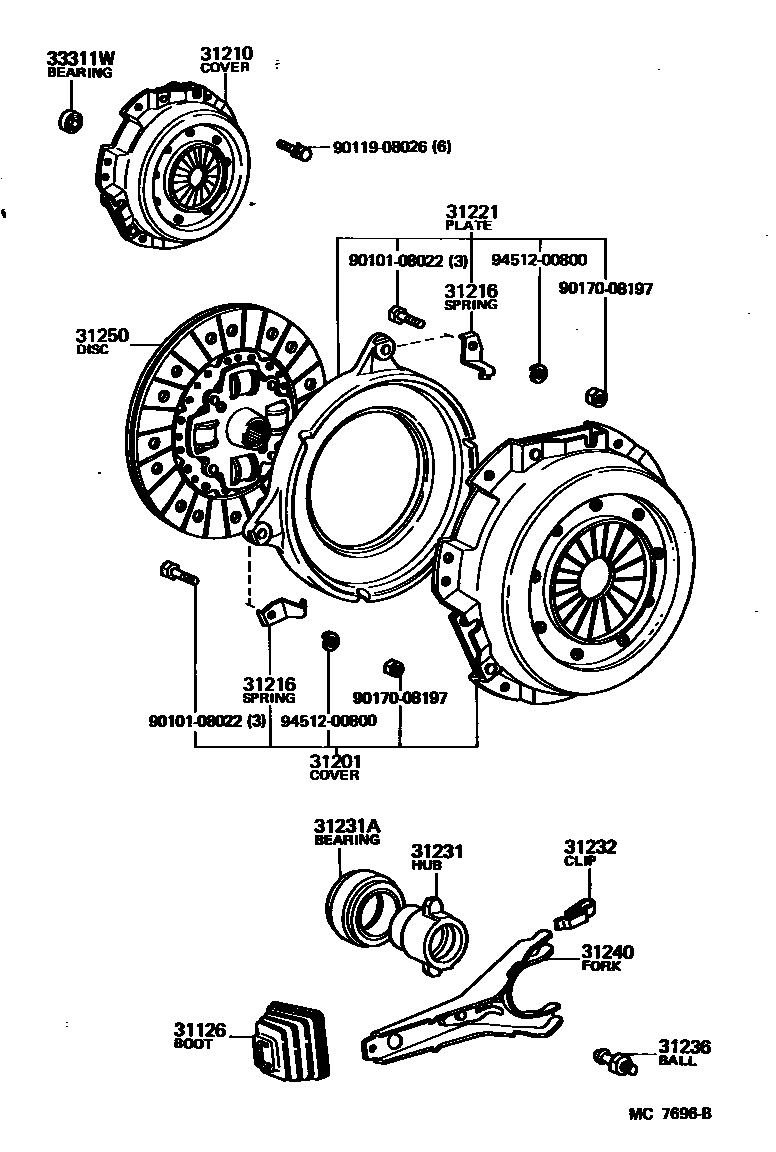

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1 0004 1 0005 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iRA63198109-198210

main31126-20070iAA6#,CA6#,KA67,SA60,TA6#..MTM198109-198804

31201COVER SUB-ASSY, CLUTCH

main31201-19065iAA60,TA67..MTM198109-198804

main31201-19075iTA61198109-198305

main31201-29085iRA63198109-198210

sub31201-26010

main31201-29115iTA63..5F..GTT198210-198507

sub31201-24010

main31201-39047iCA6#,SA60,TA63..MTM..(DLX,SE,SG,ST)198109-198804

31210COVER ASSY, CLUTCH

main31210-12080iAA63198305-198507

main31210-12100iKA67..MTM198308-198703

sub31210-12180

main31210-14070iTA67..MTM198109-198308

sub31210-14100

main31210-14100iTA61198109-198305

sub31210-14101

main31210-20083iAA60..MTM198109-198712

sub31210-12180

main31210-20170iRA63198109-198210

sub31210-20171

main31210-24010iTA63..5F..GTT198210-198507

sub31210-24011

main31210-27010iKA67..MTM198703-198804

sub31210-27011

main31210-30172iCA67198508-198804

sub31210-20270

main31210-35042iCA6#,SA60,TA63..MTM..(DLX,SE,SG,ST)198109-198804

sub31210-22120

31216SPRING, CLUTCH RETRACTING

main31216-20020iAA60,TA61,67..MTM198109-198804

main31216-30010iCA6#,RA63,SA60,TA63..MTM198109-198804

31221PLATE, CLUTCH PRESSURE

main31221-19015iTA61,67..MTM198109-198308

main31221-19025iAA60..MTM198109-198712

main31221-29025iRA63198109-198210

main31221-39045iCA6#,SA60,TA63..MTM..(DLX,SE,SG,ST)198109-198712

sub31221-35020

main31221-39115iCA67198210-198804

sub31221-30100

31231HUB, CLUTCH RELEASE BEARING

main31231-12050iAA63198305-198507

main31231-12090iKA67..MTM198308-198804

main31231-20081iAA60,SA60,TA6#..MTM..(DLX,GT,SE,SG,ST,STD)198109-198804

main31231-20090iRA63,TA63..5F..(GT,GTT)198109-198804

main31231-36070iCA6#..5F198202-198508

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40022iAA6#,CA6#,KA67,RA63,SA60,TA6#..MTM198109-198804

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-22010iAA6#,CA6#,KA67,RA63,SA60,TA6#..MTM198109-198804

31236BALL, RELEASE FORK

main31236-30060iAA6#,CA6#,KA67,RA63,SA60,TA6#..MTM198109-198804

31240FORK ASSY, CLUTCH RELEASE

main31204-20070iRA63198109-198210

sub31204-20072

main31204-20080iAA6#,KA67,TA6#..MTM..(DLX,GT,SE,SG,ST,STD)198109-198804

main31204-20090iTA63..5F..GTT198109-198804

31250DISC ASSY, CLUTCH

main31250-12061iTA61198109-198208

sub31250-12062

main31250-12062iTA61198208-198305

sub31250-16040

main31250-12081iAA60..MTM198109-198712

sub31250-12184

main31250-12120iKA67..MTM198308-198507

sub31250-12121

main31250-12121iKA67..MTM198507-198804

sub31250-12122

main31250-12180iAA63198305-198312

sub31250-12182

main31250-12182iAA63198312-198406

sub31250-12183

main31250-12183iAA63198406-198412

sub31250-12184

main31250-12184iAA63198412-198507

sub31250-12290

main31250-14090iTA67..MTM198109-198208

sub31250-14091

main31250-14091iTA67..MTM198208-198308

sub31250-14092

main31250-14140iSA60,TA63..MTM..(SE,SG,ST)198109-198502

sub31250-14141

main31250-14141iSA60..5F198502-198804

sub31250-14142

main31250-14150iTA63..5F198305-198507

sub31250-28030

main31250-20110iCA6#..5F198202-198203

sub31250-20111

main31250-20111iCA6#..5F198203-198407

sub31250-20112

main31250-20112iCA67198407-198508

sub31250-20113

main31250-22053iRA63198109-198210

sub31250-22054

main31250-22210iCA67198508-198804

sub31250-22211

main31250-30200iTA63..5F..GTT198210-198305

sub31250-30330

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iRA63198109-198210

sub90363-12024

main90363-12003iAA6#,KA67,TA6#..MTM198109-198804

main90363-12004iCA6#,SA60..MTM198109-198804

9010108022

main90101-08022

9011908026

main90119-08026

9017008197

main90170-08197

9451200800

main94512-00800

16 parts on this diagram · 5 diagrams in section
