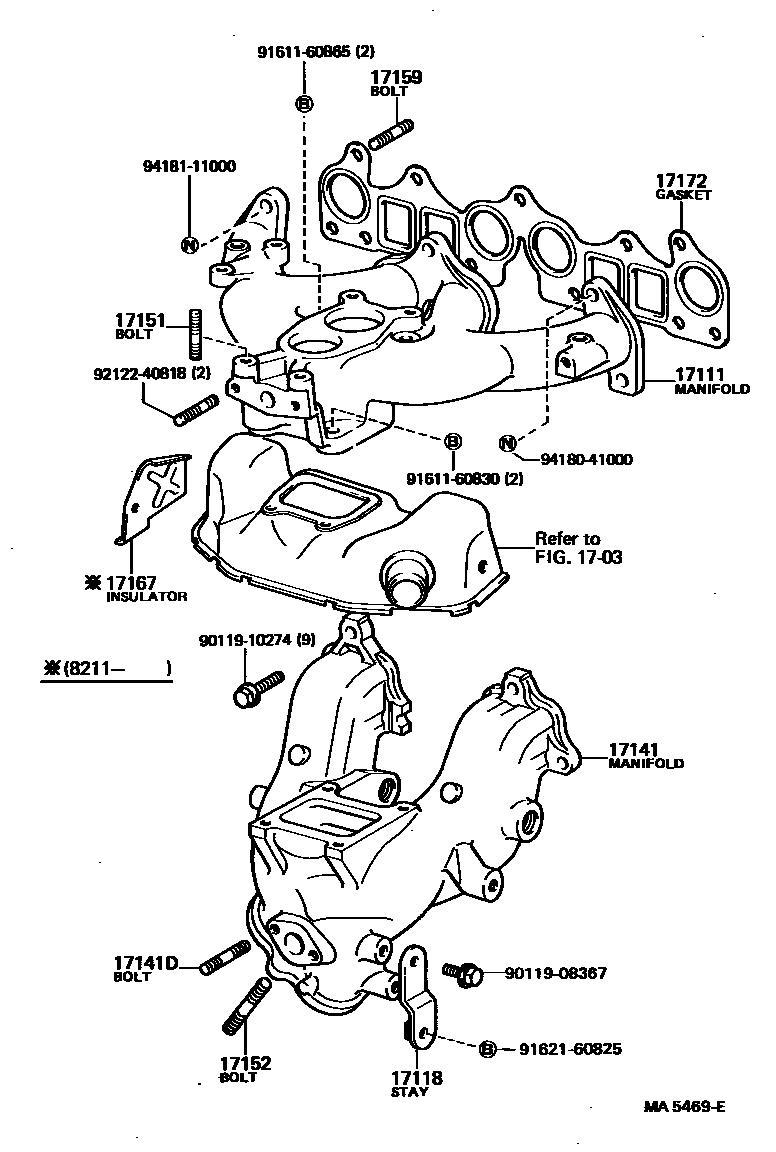

MANIFOLD
1703
17118STAY, MANIFOLD
17141DBOLT, STUD(FOR OXYGEN SENSOR)
L=28,S=8&17
17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
L=39,S=13&13
L=41,S=14&14
L=39.4,S=13.7&13.7
L=42,S=16&10
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
L=41,S=14&21
L=46.5,S=14&20
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
INTAKE MANIFOLD
INTAKE MANIFOLD
INTAKE MANIFOLD
EXHAUST MANIFOLD
EXHAUST MANIFOLD
L=44,S=12&20
L=47,S=12&20
L=43,S=15&15
INTAKE MANIFOLD
INTAKE MANIFOLD
EXHAUST MANIFOLD
EXHAUST MANIFOLD
EXHAUST MANIFOLD
9011908367
main90119-08367
9011910274
main90119-10274
9161160830
main91611-60830
9161160865
main91611-60865
9162160825
main91621-60825
9212240818
main92122-40818
9418041000
main94180-41000
9418111000
main94181-11000
18 parts on this diagram · 12 diagrams in section
