RADIATOR & WATER OUTLET

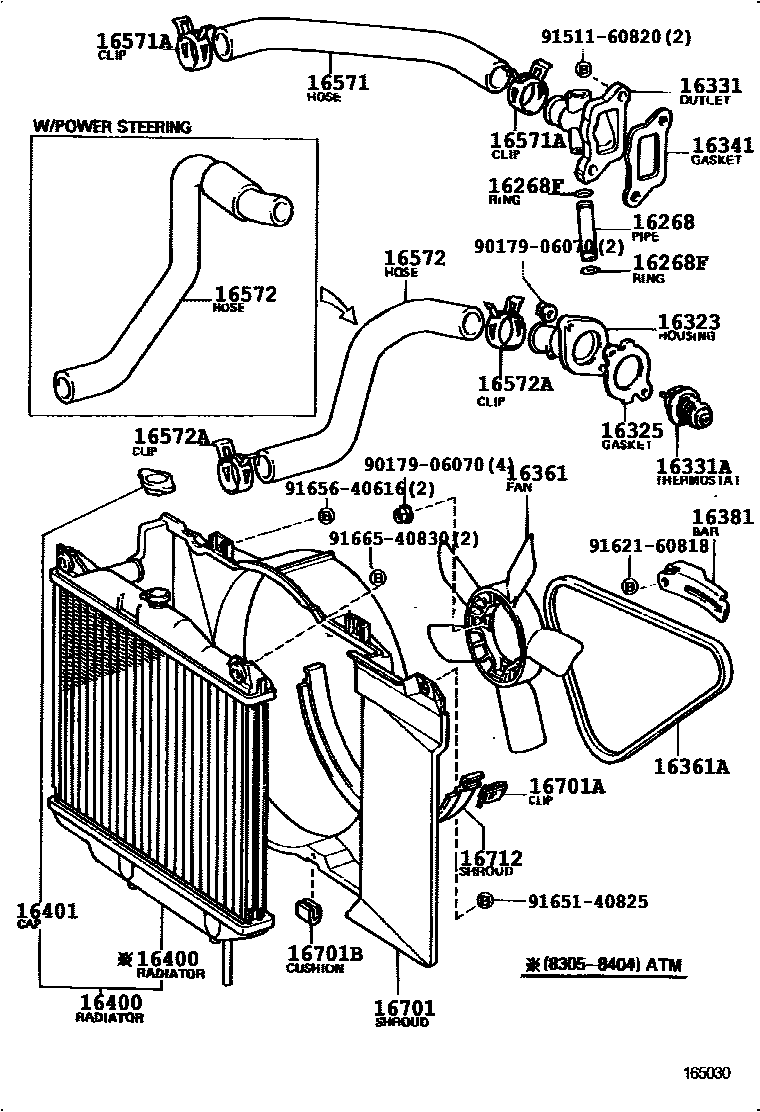

Parts diagram
16268PIPE, WATER BY-PASS, NO.1
main16268-15010i198109-198503
sub16268-15011
main16268-15011i198503-198712
main16268-16010i198305-198504
sub16268-16011
main16268-16011i198504-198507
main16268-63030i198307-198308
COLD SPEC
main16268-64010i198204-198507
sub16268-64020
main16268-64050i198507-198804
main16268-88273i198109-198210
main16268-88280i198305-198507
main87208-20150i198202-198204
sub16268-64010
16268FRING, O(FOR WATER BY-PASS PIPE)
main96710-02013i198109-198112
sub96711-24013
main96711-24013i198112-198712
16323HOUSING, WATER INLET
main16323-15020i198109-198712
main16323-16020i198305-198507
main16323-63010i198109-198804
16325GASKET, WATER INLET HOUSING, NO.1
main16325-63010i198109-198804
sub16325-63011
main16325-70020i198109-198112
sub16325-70021
main16325-70021i198112-198712
16331OUTLET, WATER
main16304-63010i198307-198308
COLD SPEC
main16331-15010i198109-198303
main16331-15040i198305-198712
main16331-15050i198303-198712
main16331-15050i198308-198312
MY ROAD
main16331-16020i198305-198507
main16331-22031i198308-198804
main16331-26040i198109-198305
main16331-26060i198109-198305
main16331-27020i198109-198308
main16331-63010i198109-198508
main16331-63020i198109-198508
main16331-63030i198109-198508
COLD SPEC
main16331-63030i198508-198804
main16331-64010i198202-198804
main16331-88270i198109-198210
main16331-88280i198210-198507
16331ATHERMOSTAT
main90916-03034i198109-198212
*WAX 82-95,*(F)
main90916-03036i198109-198212
COLD SPEC,*WAX 88-100,*(F)
sub90916-03040
main90916-03036i198109-198212
*WAX 88-100,*(F)
sub90916-03040
main90916-03036i198212-198305
*WAX 88-100
sub90916-03040
main90916-03037i198109-198212
*WAX 82-95,KUZEH
sub90916-03083
main90916-03040i198109-198212
*WAX 88-100,KUZEH
sub90916-03078
main90916-03040i198109-198212
COLD SPEC,*WAX 88-100,KUZEH
sub90916-03078
main90916-03046i198109-198804
main90916-03054i198308-198712
sub90916-03083
main90916-03054i198212-198305
sub90916-03083
main90916-03055i198212-198507
sub90916-03078
main90916-03055i198212-198305
sub90916-03078
main90916-03055i198308-198712
sub90916-03078
16341GASKET, WATER OUTLET
main16341-13011i198308-198712
sub16341-13040
main16341-15010i198109-198112
sub16341-15011
main16341-15011i198112-198712
sub16341-15012
main16341-16010i198305-198507
sub16341-16020
main16341-38010i198109-198201
main16341-38011i198201-198308
main16341-63010i198109-198804
sub16341-63011
main16341-64010i198202-198804
sub16341-64020
main16341-88260i198109-198208
sub16341-88280
main16341-88280i198208-198507
sub16341-88281
16361FAN
main16361-13060i198308-198712
main16361-15020i198109-198712
main16361-16010i198305-198507
main16361-18010i198109-198405
sub16361-16010
main16361-26040i198109-198308
main16361-26050i198109-198305
W/COOLER
main16361-34030i198109-198210
main16361-38010i198202-198804
main16361-45020i198109-198804
16361ABELT, V(FOR FAN & ALTERNATOR)
main90916-02148i198504-198507
main99321-00850i198109-198305
main99321-00885i198109-198712
main99321-50975i198205-198712
main99321-50985i198109-198205
main99321-51000i198109-198712
W/COOLER
main99363-01150i198109-198804
sub99363-31150
main99365-50830i198305-198504
sub99365-20830
16381BAR, FAN BELT ADJUSTING
main16381-15011i198109-198203
sub16381-15030
main16381-15030i198203-198712
main16381-16010i198305-198507
main16381-24011i198308-198712
main16381-25010i198109-198308
main16381-34030i198109-198210
main16381-63010i198109-198804
main16381-64011i198202-198612
main16381-64040i198612-198804
main16381-88280i198210-198507
main88688-12040i198109-198712
W/COOLER
16400RADIATOR ASSY
main16400-13320i198404-198712
W/CAP
main16400-13330i198404-198712
W/CAP
main16400-15080i198109-198202
W/CAP
sub16400-15081
main16400-15081i198202-198712
W/CAP
sub16400-15240
main16400-15090i198109-198202
W/CAP
sub16400-15091
main16400-15091i198202-198305
W/CAP
main16400-15240i198404-198712
W/CAP
main16400-26330i198109-198308
W/CAP
sub16400-26370
main16400-26340i198109-198308
W/CAP
sub16400-28081
main16400-28060i198109-198305
W/CAP
sub16400-28081
main16400-28070i198210-198507
W/CAP
sub16400-28080
main16400-28080i198210-198305
W/CAP
main16400-28081i198404-198507
W/CAP
main16400-37090i198109-198804
W/CAP
main16400-37100i198202-198405
W/CAP
sub16400-35080
main16400-63010i198109-198804
W/CAP
sub16400-74030
main16400-63020i198109-198804
W/CAP
sub16400-74030
main16410-13310i198308-198404
W/O CAP
sub16400-13320
main16410-13320i198308-198404
W/O CAP
sub16400-13330
main16410-15240i198305-198404
W/O CAP
sub16400-15240
main16410-28081i198305-198404
W/O CAP
sub16400-28081
16401CAP SUB-ASSY, RADIATOR
main16401-63010i198109-198804
16571HOSE, RADIATOR, INLET
main16571-15070i198109-198712
main16571-16020i198305-198507
main16571-28030i198109-198305
W/PS
main16571-34140i198109-198210
main16571-63010i198109-198804
main16571-64010i198202-198804
main16572-13110i198308-198712
main16572-26050i198109-198305
main16572-28010i198210-198507
main90916-01143i198109-198308
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
main90467-33002i198506-198712
WATER OUTLET SIDE
sub90467-34003
main90467-33002i198406-198804
sub90467-34003
main90467-34001i198109-198506
sub90467-33003
main90467-34001i198308-198712
RADIATOR SIDE
sub90467-33003
main90467-37001i198109-198507
sub90467-37003
main90467-37001i198308-198506
WATER OUTLET SIDE
sub90467-37003
16572HOSE, RADIATOR, OUTLET
main16571-13140i198308-198712
main16571-26090i198109-198308
main16571-28040i198305-198507
main16572-15070i198109-198712
main16572-15101i198401-198712
MY ROAD,W/PS
main16572-15101i198205-198712
W/PS
main16572-16030i198305-198507
main16572-34090i198109-198210
main16572-63010i198109-198804
main16572-64010i198202-198804
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
main90460-47036i198308-198712
main90467-33002i198406-198804
sub90467-34003
main90467-34001i198109-198506
sub90467-33003
main90467-37001i198202-198804
sub90467-37003
main96111-10460i198109-198507
RADIATOR SIDE
main96111-10490i198109-198507
WATER PUMP SIDE
16701SHROUD SUB-ASSY, FAN
main16711-13210i198308-198712
main16711-15070i198109-198712
main16711-26090i198109-198308
main16711-28090i198109-198305
sub16711-28091
main16711-28091i198305-198507
main16711-34110i198109-198210
main16711-63010i198109-198804
main16711-64010i198202-198804
16701ACLIP(FOR FAN SHROUD)
main90468-06013i198109-198804
W/COOLER
16701BCUSHION, FAN SHROUD
main90541-11002i198109-198804
16712SHROUD, FAN, NO.2
main16712-13070i198308-198712
main16712-44040i198109-198712
W/COOLER
main16712-54050i198109-198804
W/COOLER
9017906070
main90179-06070
9151160820
main91511-60820
9162160818
main91621-60818
9165140825
main91651-40825
9165640616
main91656-40616
9166540830
main91665-40830
