CRANKSHAFT & PISTON

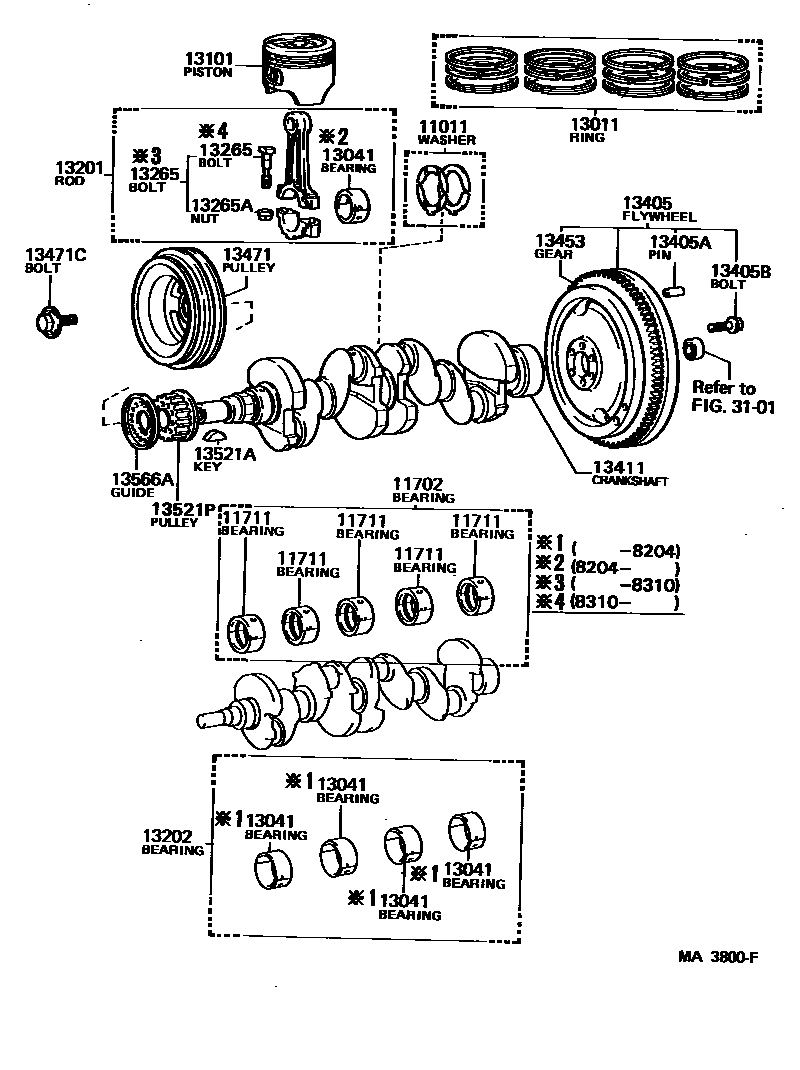

Parts diagram
11011WASHER SET, CRANKSHAFT THRUST
main11011-15010i198109-198712
sub11011-15020
main11011-22011i198308-198804
main11011-25010i198109-198804
main11011-38010i198109-198210
main11011-64010i198202-198804
main11012-22011i198308-198804
main11012-25010i198109-198308
O/S 0.125
main11012-38010i198109-198210
main11012-64010i198202-198804
main11013-22011i198308-198804
main11013-25010i198109-198308
O/S 0.250
main11013-38010i198109-198210
sub11013-35021
main11013-64010i198202-198804
11702BEARING SET, CRANKSHAFT
main11702-25013i198109-198308
STD
main11702-88261i198109-198305
STD
main11702-88270i198109-198210
STD
main11703-25013i198109-198308
U/S 0.05
main11703-88261i198109-198305
U/S 0.05
main11703-88270i198109-198210
U/S 0.05
main11704-13011i198308-198804
sub11704-13012
main11704-15011i198109-198301
U/S 0.25
main11704-15050i198301-198712
sub11704-16010
main11704-25013i198109-198308
U/S 0.25
main11704-63021i198507-198804
sub11704-63022
main11704-64030i198308-198508
sub11704-64040
main11704-64050i198508-198804
main11704-88261i198109-198305
U/S 0.25
main11704-88270i198109-198210
U/S 0.25
main11705-13011i198308-198804
sub11705-13012
main11705-25013i198109-198308
U/S 0.50
main11705-88261i198109-198305
U/S 0.50
11711BEARING, CRANKSHAFT
main11071-63020-01i198507-198804
NO.3 MARK"1",MARK 1
sub11071-63021
main11071-63020-02i198507-198804
NO.3 MARK"2",MARK 2
sub11071-63021
main11071-63020-03i198507-198804
NO.3 MARK"3",MARK 3
sub11071-63021
main11071-63020-04i198608-198804
NO.3 MARK"4",MARK 4
sub11071-63021
main11071-63020-05i198608-198804
NO.3 MARK"5",MARK 5
sub11071-63021
main11701-13011-03i198308-198804
STD,MARK"3",MARK 3
sub11701-13012
main11701-13011-04i198308-198804
STD,MARK"4",MARK 4
sub11701-13012
main11701-13011-05i198308-198804
STD,MARK"5",MARK 5
sub11701-13012
main11701-13011-06i198308-198804
STD,MARK"6",MARK 6
sub11701-13012
main11701-13011-07i198308-198804
STD,MARK"7",MARK 7
sub11701-13012
main11701-15011-01i198109-198301
MARK"1",MARK 1
main11701-15011-02i198109-198301
MARK"2",MARK 2
main11701-15011-03i198109-198301
MARK"3",MARK 3
main11701-15030-01i198301-198403
MARK"1",MARK 1
sub11701-16010
main11701-15030-02i198301-198403
MARK"2",MARK 2
sub11701-16010
main11701-15030-03i198301-198403
MARK"3",MARK 3
sub11701-16010
main11701-15050-01i198305-198712
MARK"1",MARK 1
sub11701-16010
main11701-15050-02i198305-198712
MARK"2",MARK 2
sub11701-16010
main11701-15050-03i198305-198712
MARK"3",MARK 3
sub11701-16010
main11701-15050-04i198608-198712
MARK"4",MARK 4
sub11701-16010
main11701-15050-05i198608-198712
MARK"5",MARK 5
sub11701-16010
main11701-16010-01i198403-198407
MARK"1",MARK 1
main11701-16010-02i198403-198407
MARK"2",MARK 2
main11701-16010-03i198403-198407
MARK"3",MARK 3
main11701-63020-01i198109-198507
NO.3 MARK"1",MARK 1
sub11071-63020
main11701-63020-02i198109-198507
NO.3 MARK"2",MARK 2
sub11071-63020
main11701-63020-03i198109-198507
NO.3 MARK"3",MARK 3
sub11071-63020
main11701-63021-01i198507-198804
NO.1,2,4,5 MARK"1",MARK 1
sub11701-63022
main11701-63021-02i198507-198804
NO.1,2,4,5 MARK"2",MARK 2
sub11701-63022
main11701-63021-03i198507-198804
NO.1,2,4,5 MARK"3",MARK 3
sub11701-63022
main11701-63021-04i198608-198804
NO.1,2,4,5 MARK"4",MARK 4
sub11701-63022
main11701-63021-05i198608-198804
NO.1,2,4,5 MARK"5",MARK 5
sub11701-63022
main11701-64010-01i198202-198308
MARK"1",MARK 1
sub11701-64030
main11701-64010-02i198202-198308
MARK"2",MARK 2
sub11701-64030
main11701-64010-03i198202-198308
MARK"3",MARK 3
sub11701-64030
main11701-64030-01i198308-198508
MARK"1",MARK 1
sub11701-64040
main11701-64030-02i198308-198508
MARK"2",MARK 2
sub11701-64040
main11701-64030-03i198308-198508
MARK"3",MARK 3
sub11701-64040
main11701-64050-01i198508-198804
MARK"1",MARK 1
main11701-64050-02i198508-198804
MARK"2",MARK 2
main11701-64050-03i198508-198804
MARK"3",MARK 3
main11701-70012-01i198109-198507
NO.1,2,4,5 MARK"1",MARK 1
sub11701-63021
main11701-70012-02i198109-198507
NO.1,2,4,5 MARK"2",MARK 2
sub11701-63021
main11701-70012-03i198109-198507
NO.1,2,4,5 MARK"3",MARK 3
sub11701-63021
main11701-88280-02i198210-198507
MARK"2",MARK 2
main11701-88280-03i198210-198507
MARK"3",MARK 3
main11701-88280-04i198210-198507
MARK"4",MARK 4
main11701-88280-05i198210-198507
MARK"5",MARK 5
main11701-88280-06i198210-198507
MARK"6",MARK 6
13011RING SET, PISTON
main13011-13040i198308-198508
STD
sub13011-13090
main13011-13090i198508-198804
main13011-15010i198109-198304
STD
sub13011-15011
main13011-15011i198304-198712
main13011-16070i198305-198507
sub13011-16170
main13011-28030i198109-198211
STD
sub13011-28031
main13011-28031i198211-198308
STD
main13011-63010i198109-198707
sub13011-63011
main13011-63011i198707-198804
sub13011-63012
main13011-64020i198202-198508
STD
main13011-64130i198508-198804
main13011-88262i198109-198305
STD
main13011-88270i198109-198210
STD
main13011-88280i198210-198302
STD
sub13011-88282
main13011-88282i198302-198507
STD
main13011-88283i198302-198507
O/S 0.50
main13013-13040i198308-198508
O/S 0.50
sub13013-13090
main13013-13090i198508-198804
main13013-15010i198304-198712
main13013-15011i198109-198304
O/S 0.50
main13013-16170i198305-198507
main13013-28030i198109-198211
O/S 0.50
sub13013-28031
main13013-28031i198211-198308
O/S 0.50
main13013-63010i198109-198707
sub13013-63011
main13013-63011i198707-198804
sub13013-63012
main13013-64020i198202-198508
O/S 0.50
main13013-64130i198508-198804
main13013-88262i198109-198305
O/S 0.50
main13013-88270i198109-198210
O/S 0.50
main13013-88280i198210-198302
O/S 0.50
sub13011-88281
main13014-15010i198109-198712
main13014-28030i198109-198211
O/S 0.75
sub13014-28031
main13014-28031i198211-198308
O/S 0.75
main13014-63010i198109-198707
sub13014-63011
main13014-63011i198707-198804
sub13014-63012
main13014-88262i198109-198305
O/S 0.75
main13015-15010i198109-198712
main13015-28030i198109-198211
O/S 1.00
sub13015-28031
main13015-28031i198211-198308
O/S 1.00
main13015-63010i198109-198707
sub13015-63011
main13015-63011i198707-198804
sub13015-63012
main13015-88262i198109-198305
O/S 1.00
main13015-88270i198109-198210
O/S 1.00
13041BEARING, CONNECTING ROD
main13041-13040-03i198308-198804
MARK"3",MARK 3
main13041-13040-04i198308-198804
MARK"4",MARK 4
main13041-13040-05i198308-198804
MARK"5",MARK 5
main13041-13040-06i198308-198804
MARK"6",MARK 6
main13041-13040-07i198308-198804
MARK"7",MARK 7
main13041-15011-01i198109-198310
MARK"1",MARK 1
main13041-15011-02i198109-198310
MARK"2",MARK 2
main13041-15011-03i198109-198310
MARK"3",MARK 3
main13041-15030-01i198310-198712
MARK"1",MARK 1
sub13041-15031
main13041-15030-02i198310-198712
MARK"2",MARK 2
sub13041-15031
main13041-15030-03i198310-198712
MARK"3",MARK 3
sub13041-15031
main13041-16010-01i198305-198307
MARK"1",MARK 1
main13041-16010-02i198305-198307
MARK"2",MARK 2
main13041-16010-03i198305-198307
MARK"3",MARK 3
main13041-16040-01i198307-198507
MARK"1",MARK 1
main13041-16040-02i198307-198507
MARK"2",MARK 2
main13041-16040-03i198307-198507
MARK"3",MARK 3
main13041-18010-03i198208-198304
MARK"3",MARK 3
sub13041-88281
sub13041-18011
main13041-18010-04i198208-198304
MARK"4",MARK 4
sub13041-88281
sub13041-18011
main13041-18010-05i198208-198304
MARK"5",MARK 5
sub13041-88281
sub13041-18011
main13041-18010-06i198208-198304
MARK"6",MARK 6
sub13041-88281
sub13041-18011
main13041-18010-07i198208-198304
MARK"7",MARK 7
sub13041-88281
sub13041-18011
main13041-18011-03i198304-198308
MARK"3",MARK 3
sub13041-88281
main13041-18011-04i198304-198308
MARK"4",MARK 4
sub13041-88281
main13041-18011-05i198304-198308
MARK"5",MARK 5
sub13041-88281
main13041-18011-06i198304-198308
MARK"6",MARK 6
sub13041-88281
main13041-18011-07i198304-198308
MARK"7",MARK 7
sub13041-88281
main13041-63020-01i198109-198804
MARK"1",MARK 1
main13041-63020-02i198109-198804
MARK"2",MARK 2
main13041-63020-03i198109-198804
MARK"3",MARK 3
main13041-64010-01i198202-198308
MARK"1",MARK 1
sub13041-64030
main13041-64010-02i198202-198308
MARK"2",MARK 2
sub13041-64030
main13041-64010-03i198202-198308
MARK"3",MARK 3
sub13041-64030
main13041-64030-01i198308-198502
MARK"1",MARK 1
sub13041-64031
main13041-64030-02i198308-198502
MARK"2",MARK 2
sub13041-64031
main13041-64030-03i198308-198502
MARK"3",MARK 3
sub13041-64031
main13041-64031-01i198502-198508
MARK"1",MARK 1
sub13041-64041
main13041-64031-02i198502-198508
MARK"2",MARK 2
sub13041-64041
main13041-64031-03i198502-198508
MARK"3",MARK 3
sub13041-64041
main13041-64050-01i198508-198804
MARK"1",MARK 1
main13041-64050-02i198508-198804
MARK"2",MARK 2
main13041-64050-03i198508-198804
MARK"3",MARK 3
main13041-88281-03i198209-198507
MARK"3",MARK 3
main13041-88281-04i198209-198507
MARK"4",MARK 4
main13041-88281-05i198209-198507
MARK"5",MARK 5
main13041-88281-06i198209-198507
MARK"6",MARK 6
main13041-88281-07i198209-198507
MARK"7",MARK 7
13101PISTON SUB-ASSY, W/PIN
main13101-13030i198308-198801
main13101-13030-01i198801-198804
sub13101-13030
main13101-13030-02i198801-198804
sub13101-13030
main13101-13030-03i198801-198804
sub13101-13030
main13101-15020i198109-198802
main13101-16020i198305-198507
main13101-27040i198109-198308
STD
main13101-28020i198109-198305
STD
main13101-63010i198109-198607
STD
main13101-63011i198607-198802
main13101-64010i198202-198508
STD
main13101-64050i198508-198609
main13101-64100i198609-198801
main13101-64100-01i198801-198804
sub13101-64100
main13101-64100-02i198801-198804
sub13101-64100
main13101-64100-03i198801-198804
sub13101-64100
main13101-88262i198109-198305
STD
main13101-88270i198109-198210
STD
main13101-88280i198210-198304
STD
sub13101-88282
main13101-88281i198210-198507
O/S 0.50
sub13101-88283
main13101-88282i198304-198507
STD
main13103-13030i198308-198804
main13103-15020i198109-198712
main13103-16020i198305-198507
main13103-27060i198109-198308
O/S 0.50
main13103-28020i198109-198305
O/S 0.50
main13103-63010i198109-198607
O/S 0.50
main13103-63011i198607-198804
main13103-64010i198202-198508
O/S 0.50
main13103-64050i198508-198703
main13103-64100i198703-198804
main13103-88262i198109-198305
O/S 0.50
main13103-88270i198109-198210
O/S 0.50
main13104-15020i198109-198712
main13104-27060i198109-198308
O/S 0.75
main13104-63010i198109-198607
O/S 0.75
main13104-63011i198607-198804
main13104-88262i198109-198305
O/S 0.75
main13105-15020i198109-198712
main13105-27060i198109-198308
O/S 1.00
main13105-28020i198109-198305
O/S 1.00
main13105-63010i198109-198607
O/S 1.00
main13105-63011i198607-198804
main13105-88262i198109-198305
O/S 1.00
main13105-88270i198109-198210
O/S 1.00
13201ROD SUB-ASSY, CONNECTING
main13201-13010i198308-198804
main13201-15010i198109-198204
sub13201-19015
main13201-19015i198204-198305
sub13201-19055
main13201-19016i198305-198306
sub13201-19045
main13201-19035i198305-198307
sub13201-19065
main13201-19045i198306-198310
sub13201-19055
main13201-19055i198310-198712
sub13201-19056
main13201-19065i198307-198507
sub13201-19066
main13201-25010i198109-198209
main13201-37011i198109-198210
sub13201-34012
main13201-63010i198109-198204
sub13201-69015
main13201-64010i198202-198204
sub13201-69025
main13201-69015i198204-198405
sub13201-69055
main13201-69025i198204-198308
sub13201-69026
main13201-69035i198308-198508
sub13201-69036
main13201-69036i198508-198508
sub13201-69037
main13201-69055i198405-198804
main13201-69065i198508-198804
sub13201-69135
main13201-71011i198208-198507
13202BEARING SET, CONNECTING ROD
main13202-25010i198109-198208
STD
sub13202-18030
main13202-33011i198109-198210
STD
sub13041-35030
main13202-88261i198109-198209
STD
main13203-25010i198109-198208
U/S 0.05
sub13203-18030
main13203-88261i198109-198209
U/S 0.05
main13203-88280i198209-198305
U/S 0.05
main13204-13040i198308-198804
main13204-15011i198109-198310
main13204-15030i198310-198712
sub13204-15031
main13204-16010i198305-198307
main13204-16040i198307-198507
main13204-18010i198208-198304
U/S 0.25
sub13204-18011
main13204-18011i198304-198308
U/S 0.25
sub13204-88280
main13204-25010i198109-198208
U/S 0.25
sub13204-18030
main13204-33011i198109-198210
U/S 0.25
sub13204-35040
main13204-63020i198109-198804
main13204-64031i198502-198508
sub13204-64041
main13204-64050i198508-198804
main13204-88261i198109-198209
U/S 0.25
main13204-88280i198209-198305
U/S 0.25
main13205-13040i198308-198804
main13205-18010i198208-198304
U/S 0.50
sub13205-18011
main13205-18011i198304-198308
U/S 0.50
sub13205-88280
main13205-25010i198109-198208
U/S 0.50
sub13205-18030
main13205-88261i198109-198209
U/S 0.50
main13205-88280i198209-198305
U/S 0.50
main13206-13040i198308-198804
13265BOLT, CONNECTING ROD
main13265-15020i198307-198708
sub13265-16010
sub90170-09003
main13265-16010i198708-198712
main13265-19015i198109-198310
main13265-29015i198308-198507
sub13265-70010
sub90170-09001
main13265-29025i198109-198507
main13265-39035i198109-198210
sub13265-39025
main13265-49015i198202-198804
main13265-63010i198109-198804
main13265-70010i198507-198804
sub13265-70020
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
main90170-09001i198303-198804
main90170-09003i198708-198712
main90170-09195i198109-198303
main90170-10198i198109-198210
main90179-08014i198109-198310
main90179-09001i198109-198804
main90179-10042i198202-198804
13405FLYWHEEL SUB-ASSY
main13405-15030i198708-198804
main13405-19075i198109-198708
sub13405-15030
main13405-19145i198305-198507
main13405-19155i198308-198804
main13405-29067i198109-198308
main13405-29115i198109-198305
main13405-39037i198109-198210
main13405-64012i198508-198804
main13405-69035i198109-198202
sub13405-69036
main13405-69036i198202-198804
sub13405-63010
main13405-69046i198202-198210
sub13405-69047
main13405-69047i198210-198508
sub13405-64011
main13405-79035i198210-198507
13405APIN, STRAIGHT(FOR FLYWHEEL)
main90250-08054i198109-198804
main90250-08120i198109-198804
13405BBOLT, FLYWHEEL SETTING
main90105-10030i198109-198507
main90105-10042i198109-198712
*10-1.25PX26-18
main90105-10045i198202-198804
main90105-10056i198109-198202
sub90105-10045
main90105-10076i198305-198507
main90913-01005i198308-198804
13411CRANKSHAFT
main13401-16010i198305-198507
main13411-13900i198308-198804
sub13411-13903
main13411-15011i198109-198208
sub13411-15010
main13411-15021i198208-198301
sub13411-15030
main13411-15030i198301-198701
sub13411-15040
main13411-15040i198701-198712
sub13411-15050
main13411-25012i198109-198308
sub13411-27901
main13411-27904i198109-198305
sub13411-27901
main13411-28010i198109-198305
sub13041-88281
main13411-28901i198210-198507
main13411-34906i198109-198210
main13411-63010i198109-198804
main13411-64010i198202-198412
sub13411-64011
main13411-64011i198412-198702
sub13411-64900
main13411-64900i198702-198804
sub13411-64901
sub13521-64011
13453GEAR, FLYWHEEL RING
main13453-10010i198109-198804
N=106
main13453-20010i198109-198804
main13453-64010i198202-198210
main13453-64011i198210-198804
13471PULLEY, CRANKSHAFT
main13407-15011i198109-198110
sub13407-15012
main13407-15012i198110-198201
sub13407-15013
main13407-15013i198201-198508
sub13470-15050
main13407-37014i198109-198210
main13407-88270i198202-198210
W/PS
main13407-88280i198210-198507
main13408-63010i198109-198212
sub13408-63011
main13408-63011i198212-198804
main13408-64011i198202-198211
sub13408-64012
main13408-64012i198211-198411
sub13408-64040
main13408-64040i198411-198804
main13470-13010i198308-198509
main13470-13011i198509-198804
main13470-15050i198508-198712
main13470-16010i198305-198507
main13471-18010i198109-198308
main13471-88260i198109-198305
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90105-12012i198109-198601
main90105-12051i198109-198804
*12-1.25PX24-18
main90105-14011i198109-198506
main90105-14048i198109-198210
main90119-12101i198601-198712
main90119-14015i198506-198804
main91511-61435i198202-198804
sub90105-14089
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
main13521-13020i198308-198804
main13521-33010i198109-198507
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
main90280-05010i198109-198609
main95161-10519i198109-198804
main95161-20622i198202-198804
sub95161-30622
13521PPULLEY, CRANKSHAFT TIMING
main13521-15010i198109-198712
N=18
main13521-16010i198305-198507
main13521-63010i198109-198804
main13521-64010i198202-198804
sub13521-64011
13566AGUIDE, TIMING BELT
main13566-15010i198109-198712
main13566-64010i198202-198804
sub13566-64011
main13567-63010i198109-198804
3101

22 parts on this diagram · 9 diagrams in section

CRANKSHAFT & PISTON — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
