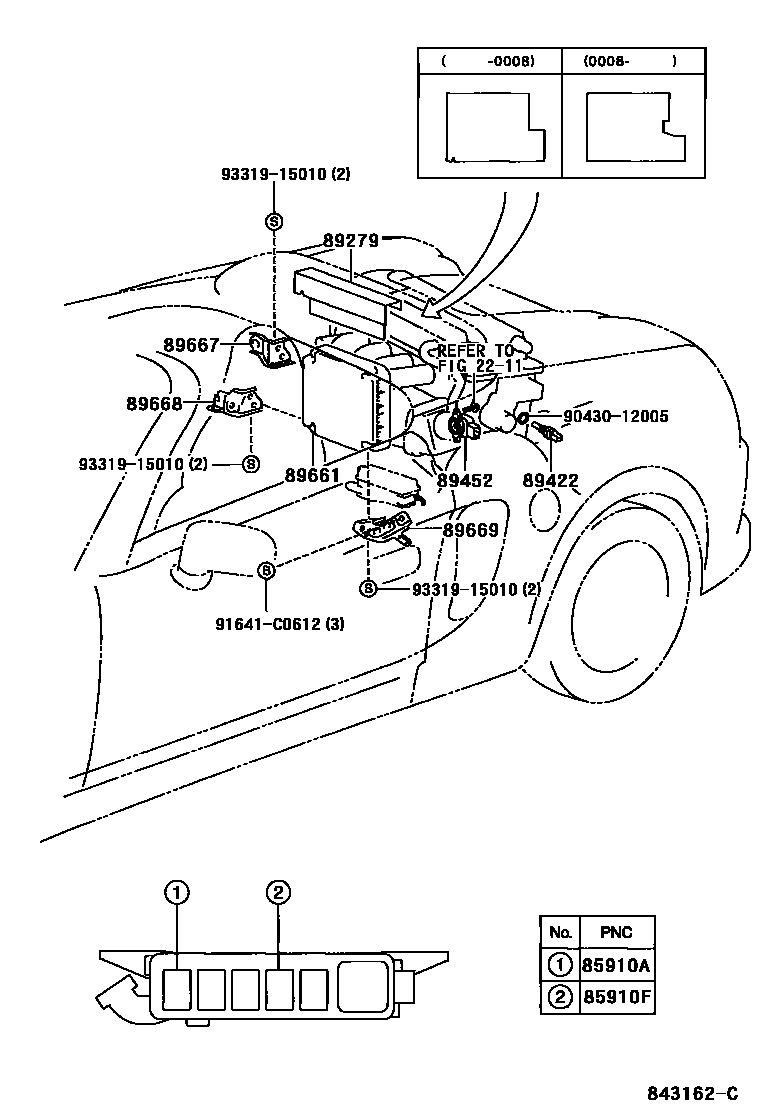

ELECTRONIC FUEL INJECTION SYSTEM

2211

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02012iZZW30199910-200208

main90987-02027iZZW30200208

85910FRELAY, COMPUTER (FOR EFI)

main90987-02012iZZW30199910-200208

main90987-02027iZZW30200208

89279COVER, ENGINE CONTROL COMPUTER

main89279-17030iZZW30199910-200008

main89279-17031iZZW30200008-200208

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-35010iZZW30199910-200208

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-20130iZZW30..5F199910-200208

main89452-30150iZZW30..5FS200008-200208

89661COMPUTER, ENGINE CONTROL

main89661-17590iZZW30..6F199910-200401

main89661-17620iZZW30..5FS200008-200102

sub89661-17621

main89661-17621iZZW30..5FS200102-200105

main89661-17622iZZW30..5FS200105-200208

main89661-17680iZZW30..6FS200208-200401

main89661-17790iZZW30..6FS200401

main89661-17800iZZW30..6F200401

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-17050iZZW30199910-200208

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-17080iZZW30199910-200208

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-17070iZZW30199910-200208

9043012005

main90430-12005

91641C0612

main91641-C0612

9331915010

main93319-15010

13 parts on this diagram · 1 diagram in section
