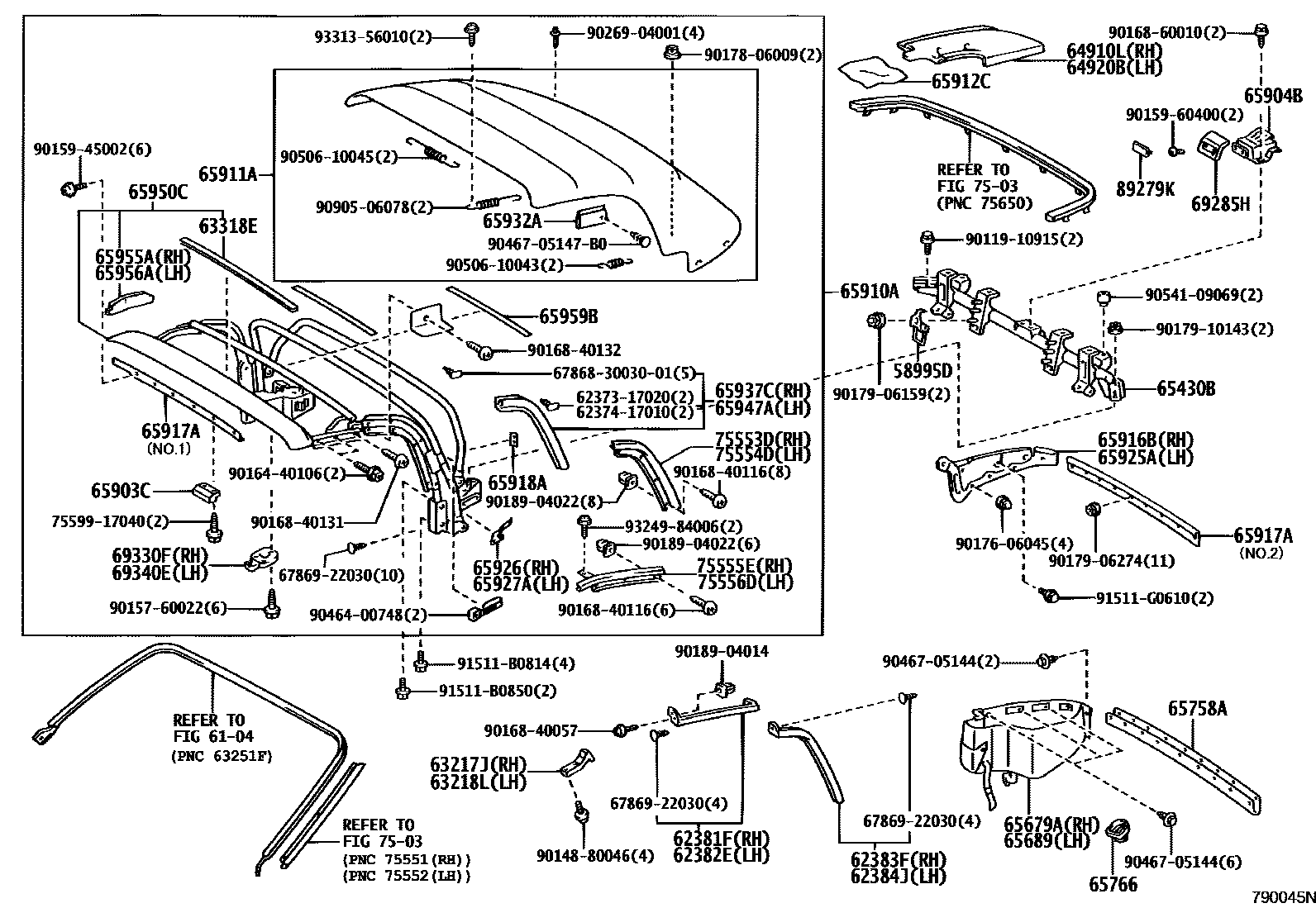

CONVERTIBLE PARTS
58995DBRACKET SUB-ASSY, CONSOLE BOX MOUNTING
6104
62381FWEATHERSTRIP, ROOF SIDE RAIL, FRONT RH
62382EWEATHERSTRIP, ROOF SIDE RAIL, FRONT LH
62383FWEATHERSTRIP, ROOF SIDE RAIL, REAR RH
62384JWEATHERSTRIP, ROOF SIDE RAIL, REAR LH
63217JHOOK, CONVERTIBLE ROOF, RH
63218LHOOK, CONVERTIBLE ROOF, LH
63318EMOULDING, ROOF HEADLINING SET, NO.1
64910LCOVER ASSY, SIDE OPENING, RH
BLACK,040 ,1E3 ,1E7 ,202 ,3P0 ,576 ,6R4 ,8M6 ,8R2
BLACK,040 ,1D0 ,202 ,3P0 ,576 ,6S1 ,8M6
BLACK,040 ,1D0 ,202 ,3P0 ,576 ,6R4 ,6S1 ,8M6
BLACK,040 ,1D0 ,202 ,3P0 ,576 ,6R4 ,8M6
V EDITION FINAL VERSION *(F),RED,1E3 ,202
TAN,040 ,1E3 ,1E7 ,202 ,3P0 ,6R4 ,8M6
TAN,6R4
64920BCOVER ASSY, SIDE OPENING, LH
BLACK,040 ,1D0 ,202 ,3P0 ,576 ,6R4 ,8M6
BLACK,040 ,1E3 ,1E7 ,202 ,3P0 ,576 ,6R4 ,8M6 ,8R2
BLACK,040 ,1D0 ,202 ,3P0 ,576 ,6S1 ,8M6
BLACK,040 ,1D0 ,202 ,3P0 ,576 ,6R4 ,6S1 ,8M6
V EDITION FINAL VERSION *(F),RED,1E3 ,202
TAN,040 ,1E3 ,1E7 ,202 ,3P0 ,6R4 ,8M6
TAN,6R4
65430BFRAME ASSY, TOP & TARPAULIN SUPPORT, FRONT
65758ASEAL, TAIL GATE, LOWER
65903CHANDLE SUB-ASSY, CENTER TARPAULIN BOW STAY CATCH
65910ATARPAULIN ASSY
BLACK,040 ,1D0 ,202 ,3P0 ,576 ,6S1 ,8M6
sub65910-17010
sub65910-17011
sub64330-17010
sub65430-17020
sub90119-10915
sub90179-10143
sub65910-17020
BLACK,040 ,1D0 ,202 ,3P0 ,576 ,6R4 ,6S1 ,8M6
sub65910-17010
sub65910-17011
sub64330-17010
sub65430-17020
sub90119-10915
sub90179-10143
sub65910-17020
BLACK,040 ,1D0 ,202 ,3P0 ,576 ,6R4 ,8M6
sub65910-17010
sub65910-17011
sub64330-17010
sub65430-17020
sub90119-10915
sub90179-10143
sub65910-17020
BLACK,040 ,1E3 ,1E7 ,202 ,3P0 ,576 ,6R4 ,8M6 ,8R2
sub65910-17012
BLACK,040 ,1E3 ,1E7 ,202 ,3P0 ,576 ,8M6 ,8R2
TAN,040 ,1E3 ,1E7 ,202 ,3P0 ,6R4 ,8M6
V EDITION FINAL VERSION *(F),RED,1E3 ,202
65911ACOVER, TARPAULIN
BLACK,040 ,1E3 ,1E7 ,202 ,3P0 ,576 ,8M6 ,8R2
sub65911-17021
sub65911-17021
sub65911-17021
V EDITION FINAL VERSION *(F),RED,1E3 ,202
65912CPAD, TARPAULIN COVER
65916BRETAINER, TARPAULIN COVER SIDE, RH
65917ARETAINER, TARPAULIN COVER, UPPER
NO.2
NO.1
65918ARETAINER, TARPAULIN COVER, LOWER
65925ARETAINER, TARPAULIN COVER SIDE, LH
65926BRACKET, TARPAULIN RAIL PIVOT, RH
65927ABRACKET, TARPAULIN RAIL PIVOT, LH
65932ATARPAULIN, SIDE COVER, LH
65937CWEATHERSTRIP, TARPAULIN REAR RAIL, RH
65947AWEATHERSTRIP, TARPAULIN REAR RAIL, LH
65950CLINK ASSY, TARPAULIN, RH
65955ACOVER, TARPAULIN LINK, RH
65956ACOVER, TARPAULIN LINK, LH
65959BTAPE, TARPAULIN TO LINK
69285HHANDLE, PULL
69330FLOCK ASSY, TARPAULIN, RH
69340ELOCK ASSY, TARPAULIN, LH
7503
75553DMOULDING, ROOF DRIP SIDE FINISH, REAR RH
75554DMOULDING, ROOF DRIP SIDE FINISH, REAR LH
75555EMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75556DMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
89279KCOVER
6237317020RETAINER, DOOR OPENING WEATHERSTRIP, RH
main62373-17020
6237417010RETAINER, DOOR OPENING WEATHERSTRIP, LH
main62374-17010
678683003001CLIP, FRONT DOOR GLASS WEATHERSTRIP
main67868-3003001
6786922030PLATE, WEATHERSTRIP, CENTER DOOR, UPPER
main67869-22030
7559917040PLATE, BACK DOOR FINISH
main75599-17040
9011910915
main90119-10915
9014880046
main90148-80046
9015760022
main90157-60022
9015945002
main90159-45002
9015960400
main90159-60400
9016440106
main90164-40106
9016840057
main90168-40057
9016840116
main90168-40116
9016840131
main90168-40131
9016840132
main90168-40132
9016860010
main90168-60010
9017606045
main90176-06045
9017806009
main90178-06009
9017906159
main90179-06159
9017906274
main90179-06274
9017910143
main90179-10143
9018904014
main90189-04014
9018904022
main90189-04022
9026904001
main90269-04001
9046400748
main90464-00748
9046705144
main90467-05144
9046705147B0
main90467-05147B0
9050610043
main90506-10043
9050610045
main90506-10045
9054109069
main90541-09069
9090506078
main90905-06078
91511B0814
main91511-B0814
91511B0850
main91511-B0850
91511G0610
main91511-G0610
9324984006
main93249-84006
9331356010
main93313-56010
79 parts on this diagram · 1 diagram in section
