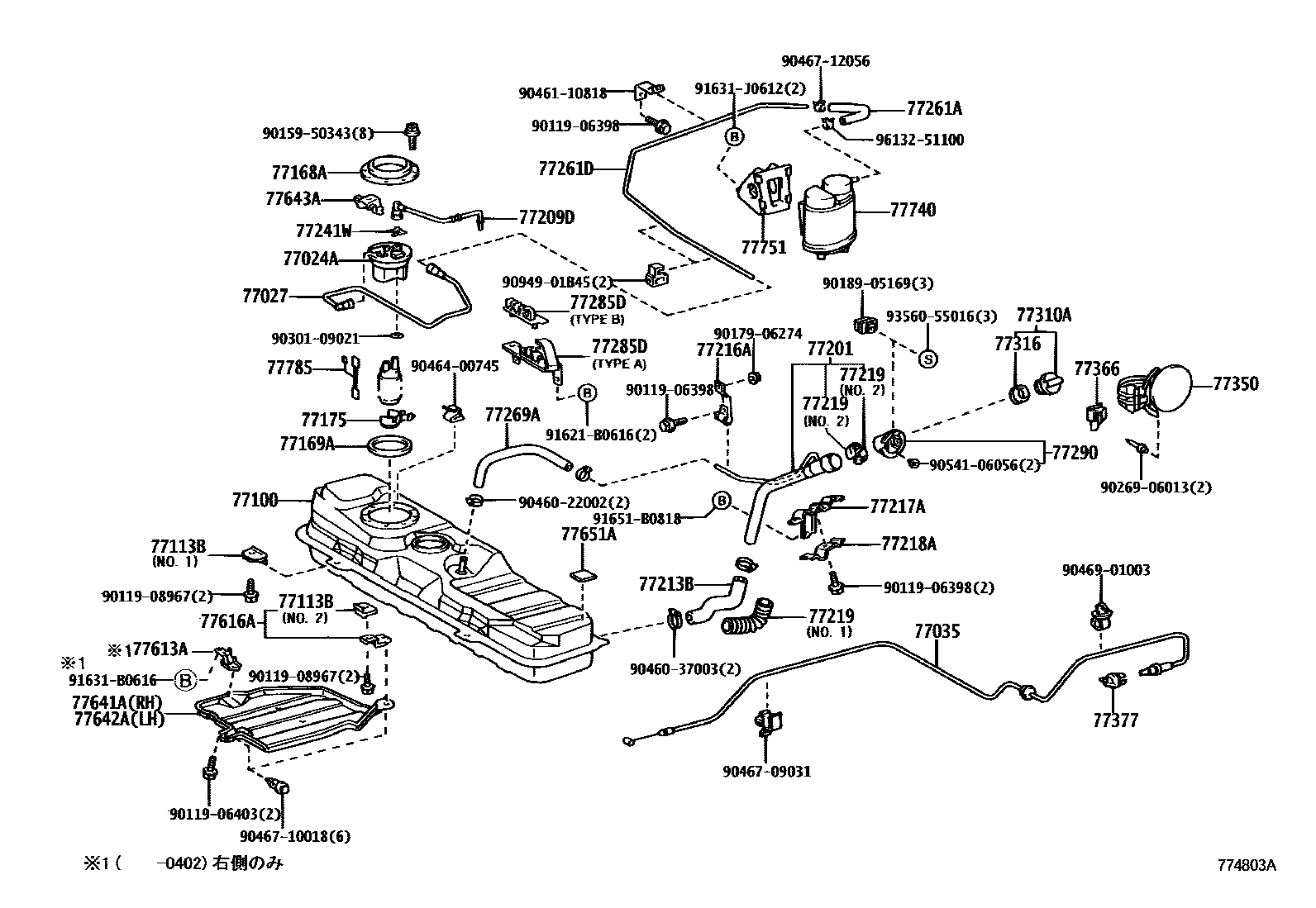

FUEL TANK & TUBE
77024APLATE SUB-ASSY, FUEL SUCTION
77027TUBE SUB-ASSY, FUEL EVAPORATION, NO.2
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77175SUPPORT, FUEL SUCTION, NO.2
77201PIPE SUB-ASSY, FUEL TANK INLET
77209DTUBE SUB-ASSY, FUEL TANK MAIN
77213BHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3
77219COVER, FUEL TANK FILLER PIPE
77241WCLIP, TUBE JOINT
77261AHOSE, FUEL, NO.1 (FOR FUEL EMISSION TUBE)
77261DTUBE, FUEL TANK TO CANISTER
77269AHOSE, FUEL TANK BREATHER
77285DCLAMP, FUEL TUBE, NO.1
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
77377RETAINER, FUEL FILLER OPENING LID LOCK
77613ABRACKET, FUEL TANK BAND, NO.1
77616ABRACKET, FUEL TANK BAND, NO.4
77641APROTECTOR, FUEL TANK, NO.1
77642APROTECTOR, FUEL TANK, NO.2
77643APROTECTOR, FUEL TANK, NO.3
77651ACUSHION, FUEL TANK, NO.1
77751BRACKET, CHARCOAL CANISTER BASE
77785HARNESS, FUEL PUMP
9011906398
main90119-06398
9011906403
main90119-06403
9011908967
main90119-08967
9015950343
main90159-50343
9017906274
main90179-06274
9018905169
main90189-05169
9026906013
main90269-06013
9030109021
main90301-09021
9046022002
main90460-22002
9046037003
main90460-37003
9046110818
main90461-10818
9046400745
main90464-00745
9046709031
main90467-09031
9046710018
main90467-10018
9046712056
main90467-12056
9046901003
main90469-01003
9054106056
main90541-06056
9094901B45
main90949-01B45
91621B0616
main91621-B0616
91631B0616
main91631-B0616
91631J0612
main91631-J0612
91651B0818
main91651-B0818
9356055016
main93560-55016
9613251100
main96132-51100
59 parts on this diagram · 1 diagram in section
