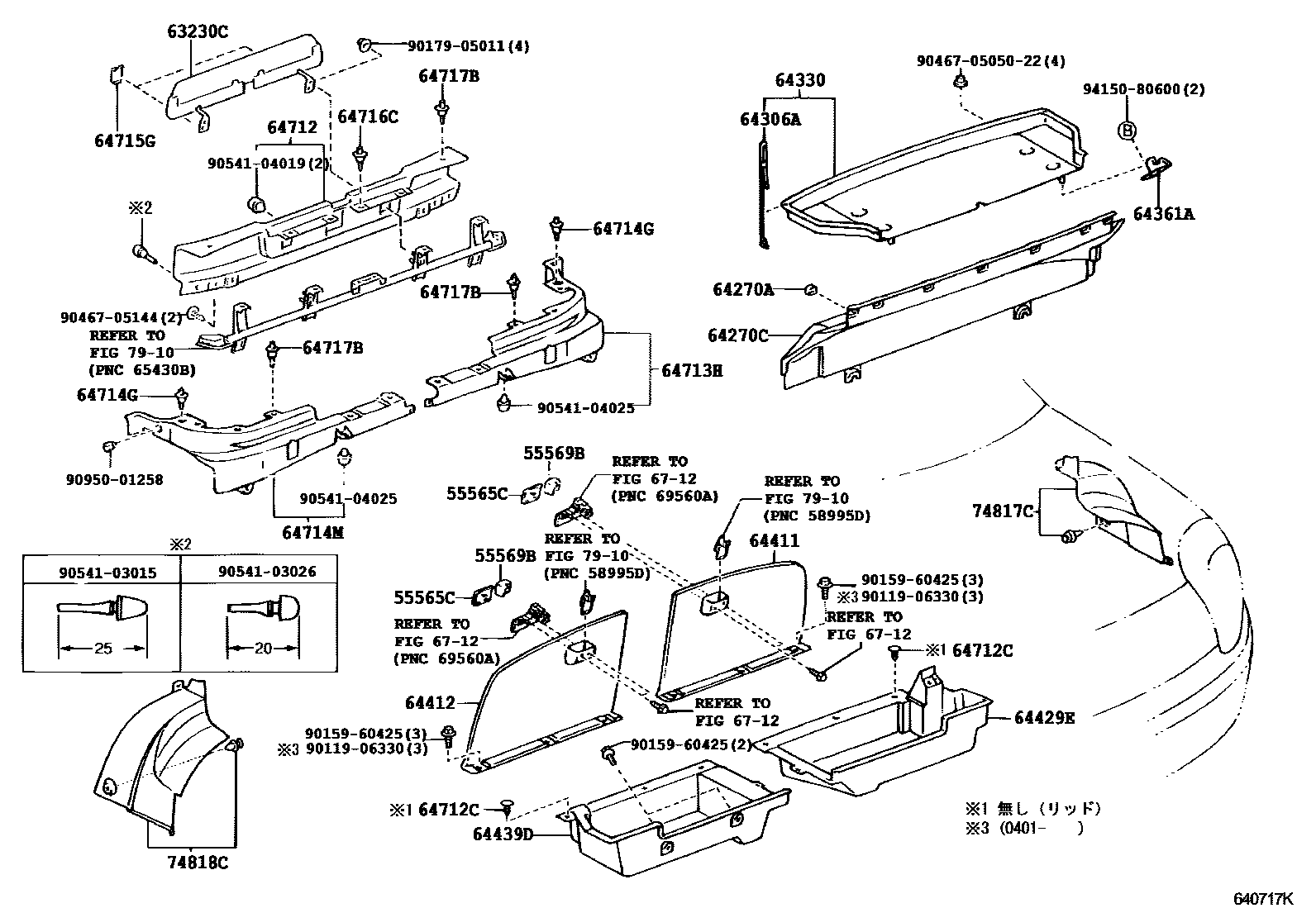

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
55565CHANDLE, GLOVE COMPARTMENT DOOR LH
55569BCOVER, GLOVE COMPARTMENT DOOR LOCK
64270ACLIP(FOR ROOM PARTITION BOARD SETTING)
BLACK,TRIM2#,3#,5#
BLACK,TRIM1#,2#,3#,4#
64270CBOARD ASSY, ROOM PARTITION
BLACK
64306ASUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
64330PANEL ASSY, PACKAGE TRAY TRIM
64361AHINGE, PACKAGE TRAY TRIM, NO.1
64411LID, LUGGAGE COMPARTMENT, RH
BLACK,TRIM2#,3#,4#,5#
BLACK,TRIM2#,3#,5#
BLACK,TRIM1#,2#,3#,4#
64412LID, LUGGAGE COMPARTMENT, LH
BLACK,TRIM2#,3#,5#
BLACK,TRIM2#,3#,4#,5#
BLACK,TRIM1#,2#,3#,4#
64429EBOX, LUGGAGE COMPARTMENT, RH
BLACK,TRIM2#,3#,4#,5#
BLACK,TRIM2#,3#,5#
BLACK,TRIM1#,2#,3#,4#
64439DBOX, LUGGAGE COMPARTMENT, LH
BLACK,TRIM2#,3#,5#
BLACK,TRIM2#,3#,4#,5#
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM2#,3#,4#,5#
BLACK,TRIM1#,2#,3#,4#
64712COVER, LUGGAGE COMPARTMENT TRIM, RH
BLACK,TRIM1#,2#,3#
BLACK,TRIM2#,3#,5#
64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
64713HCOVER, LUGGAGE COMPARTMENT UPPER, RH
BLACK,TRIM2#,3#,5#
BLACK,TRIM2#,3#,4#,5#
BLACK,TRIM1#,2#,3#,4#
64714GCLIP(FOR LUGGAGE COMPARTMENT TRIM SIDE COVER)
64714MCOVER, LUGGAGE COMPARTMENT UPPER, LH
BLACK,TRIM2#,3#,5#
BLACK,TRIM2#,3#,4#,5#
BLACK,TRIM1#,2#,3#,4#
64715GCOVER, WIND DEFLECTOR
BLACK,TRIM2#,3#,5#
BLACK,TRIM2#,3#,4#,5#
BLACK,TRIM1#,2#,3#,4#
64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
6712
74817CCOVER, SEPARATOR BOARD, RH
BLACK,TRIM2#,3#,5#
BLACK,TRIM2#,3#,4#,5#
BLACK,TRIM1#,2#,3#,4#
74818CCOVER, SEPARATOR BOARD, LH
BLACK,TRIM2#,3#,5#
BLACK,TRIM1#,2#,3#,4#
BLACK,TRIM2#,3#,4#,5#
7910
9011906330
main90119-06330
9015960425
main90159-60425
9017905011
main90179-05011
904670505022
main90467-0505022
9046705144
main90467-05144
9054103015
main90541-03015
9054103026
main90541-03026
9054104019
main90541-04019
9054104025
main90541-04025
9095001258
main90950-01258
9415080600
main94150-80600
35 parts on this diagram · 1 diagram in section
