SIDE MEMBER
5202
53821BBRACKET, FRONT FENDER, REAR RH
53822BBRACKET, FRONT FENDER, REAR LH
53877CBRACKET, FRONT FENDER LINER, RH
53878FBRACKET, FRONT FENDER LINER, LH
53879LRETAINER, FRONT FENDER LINER
58741FPROTECTOR, REAR WHEEL EXTENSION, RH
58742FPROTECTOR, REAR WHEEL EXTENSION, LH
58747BPROTECTOR, QUARTER PANEL, REAR
61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH
6104
61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH
61107BREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH
61123DPANEL, COWL SIDE, INNER RH
61124DPANEL, COWL SIDE, INNER LH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61131BSEAL, FRONT FENDER
61132PILLAR, FRONT BODY, UPPER OUTER LH
61161PILLAR, FRONT BODY, UPPER INNER RH
61162PILLAR, FRONT BODY, UPPER INNER LH
61311BPILLAR, CENTER BODY, OUTER RH
61312BPILLAR, CENTER BODY, OUTER LH
61323CREINFORCEMENT, CENTER BODY PILLAR, LOWER RH
61324CREINFORCEMENT, CENTER BODY PILLAR, LOWER LH
61343APILLAR, CENTER BODY, INNER RH
61344APILLAR, CENTER BODY, INNER LH
61345BPILLAR, CENTER BODY, INNER LOWER RH
61346BPILLAR, CENTER BODY, INNER LOWER LH
61395SEAL, CENTER BODY PILLAR, RH
61396BSEAL, CENTER BODY PILLAR, LH
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61413CREINFORCEMENT, ROCKER PANEL, NO.2 RH
61414CREINFORCEMENT, ROCKER PANEL, NO.2 LH
61415BEXTENSION, ROCKER, OUTER RH
61416BEXTENSION, ROCKER, OUTER LH
61418AREINFORCEMENT, ROCKER PANEL, RH
61419AREINFORCEMENT, ROCKER PANEL, LH
61423BREINFORCEMENT, ROCKER PANEL, NO.3 RH
61424BREINFORCEMENT, ROCKER PANEL, NO.3 LH
61505REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, RH
61506REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, LH
61601BPANEL SUB-ASSY, QUARTER, RH
61602CPANEL SUB-ASSY, QUARTER, LH
61617APANEL, QUARTER INNER, REAR RH
61618APANEL, QUARTER, INNER REAR LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61637EBRACKET, QUARTER WHEEL HOUSE
61643EREINFORCEMENT, REAR FENDER APRON, RH
61644DREINFORCEMENT, REAR FENDER APRON, LH
61647CREINFORCEMENT, WHEEL HOUSE, RH
61648CREINFORCEMENT, WHEEL HOUSE, LH
61671GSUPPORT, REAR SUSPENSION SPRING, RH
61672BRACKET, REAR SEATBACK HINGE, LH
61824CPAD, NOISE SHUTTER, NO.1
61825APLATE, NOISE CONTROL, NO.2
61825CPAD, NOISE SHUTTER, NO.2
61826DPLATE, NOISE CONTROL, NO.3
62613BCOVER, QUARTER WHEEL HOUSE, RH
62614BCOVER, QUARTER WHEEL HOUSE, LH
65545REINFORCEMENT, SIDE PANEL, NO.1
65546REINFORCEMENT, SIDE PANEL, NO.2
65547REINFORCEMENT, SIDE PANEL, NO.3
65548REINFORCEMENT, SIDE PANEL, NO.4
65637LINER, REAR WHEEL HOUSE, RH
65638LINER, REAR WHEEL HOUSE, LH
5257917010RETAINER, REAR BUMPER SIDE, NO.3
5573617010SEAL, WATER GUARD PLATE
6786922030PLATE, WEATHERSTRIP, CENTER DOOR, UPPER
9011906403
9014860033
9015960434
9015960525
9017908102
9033325001
9033325003
9046707166
9095001518
9095001743
9095001866
91511G0614
9162140614
9163560816

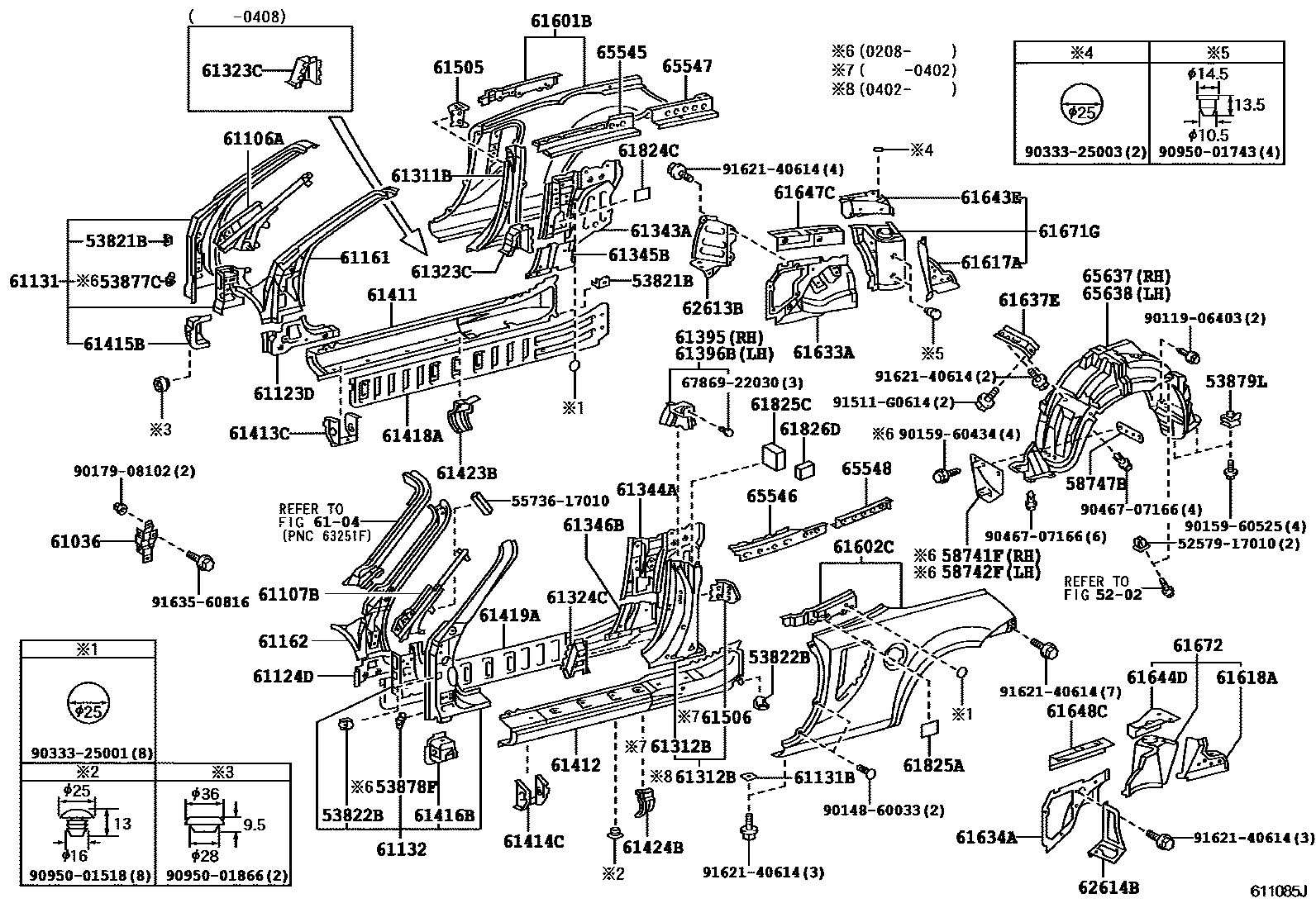

84 parts on this diagram · 1 diagram in section
