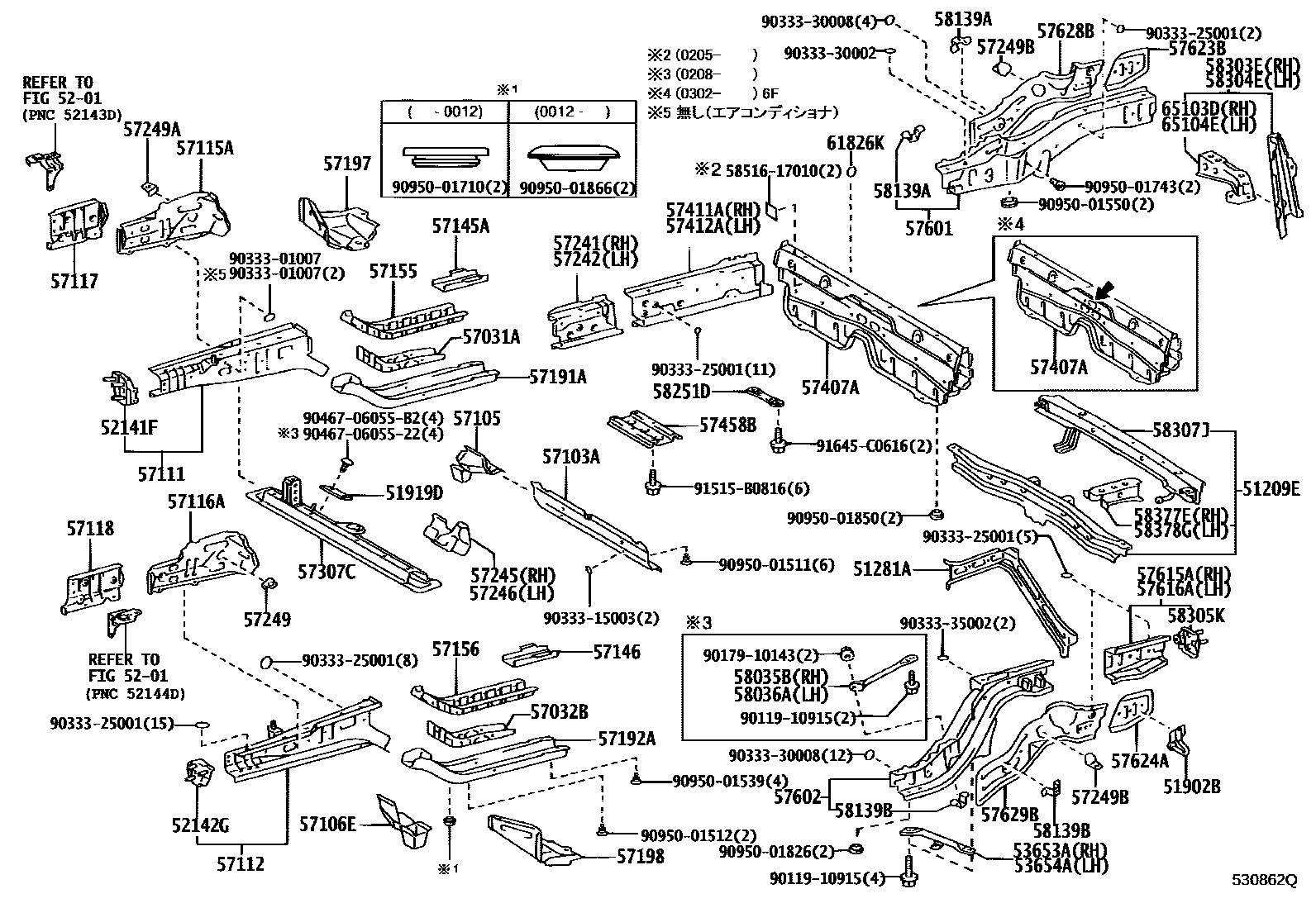

FLOOR SIDE MEMBER
51209ECROSSMEMBER, FRAME, REAR UPPER
51281AMEMBER, REAR DIAGONAL
51902BHANGER SUB-ASSY, EXHAUST PIPE, NO.2
51919DPLATE, SPARE WHEEL MOUNTING
5201
52141FARM, FRONT BUMPER, RH
52142GARM, FRONT BUMPER, LH
53653ABRACE, REAR SUSPENSION, LOWER RH
53654ABRACE, REAR SUSPENSION, LOWER LH
57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH
57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH
57103ACROSSMENBER SUB-ASSY, FLOOR, NO.3
57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH
57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH
57111MEMBER, FRONT SIDE, RH
57112MEMBER, FRONT SIDE, LH
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
57117PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH
57118PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH
57145AREINFORCEMENT, FRONT SIDE MEMBER, REAR RH
57146PLATE, FRONT SIDE MEMBER, CENTER LH
57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH
57156REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH
57191AMEMBER, FRONT SIDE, INNER REAR RH
57192AMEMBER, FRONT SIDE, INNER REAR LH
57197BOX, TORQUE, FRONT RH
57198BOX, TORQUE, FRONT LH
57241REINFORCEMENT, FRONT SIDE MEMBER, NO.5 RH
57242REINFORCEMENT, FRONT SIDE MEMBER, NO.5 LH
57245REINFORCEMENT, FRONT SIDE MEMBER, NO.9 RH
57246REINFORCEMENT, FRONT SIDE MEMBER, NO.9 LH
57249BRACKET, FLEXIBLE HOSE, NO.1
57249ABRACKET, FREXIBLE HOUSE, NO.1, LH
57249BBRACKET, FLEXIBLE HOSE, NO.1
57307CPANEL SUB-ASSY, FRONT LUGGAGE END
57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS
57411AMEMBER, FLOOR SIDE, INNER RH
57412AMEMBER, FLOOR SIDE, INNER LH
57458BPATCH, FLOOR SIDE MEMBER, REAR LH
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57615AMEMBER, REAR FLOOR SIDE, REAR RH
57616AMEMBER, REAR FLOOR SIDE, REAR LH
57623BPLATE. REAR FLOOR SIDE MEMBER, REAR RH
57624APLATE. REAR FLOOR SIDE MEMBER, REAR LH
57628BPLATE, REAR FLOOR SIDE MEMBER, RH
57629BPLATE, REAR FLOOR SIDE MEMBER, LH
58035BBRACE SUB-ASSY, REAR FLOOR PANEL, RH
58036ABRACE SUB-ASSY, REAR FLOOR PANEL, LH
58139APLATE, FRONT FLOOR SIDE, REAR RH
58139BBRACKET, FENDER LINER, LH
58251DBRACE, FLOOR PANEL, FRONT
58303EREINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, RH
58304EREINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, LH
58305KBRACKET SUB-ASSY, REAR BUMPER ARM
58307JPANEL SUB-ASSY, BODY LOWER BACK
58377EPANEL, BODY LOWER BACK, RH
58378GPANEL, BODY LOWER BACK, LH
61826KPLATE, NOISE CONTROL
65103DBRACKET SUB-ASSY, MOUNTING, RH
65104EBRACKET SUB-ASSY, MOUNTING, LH
5851617010MAT, FLOOR, REAR END
9011910915
9017910143
9033301007
9033315003
9033325001
9033330002
9033330008
9033335002
904670605522
main90467-0605522
9046706055B2
main90467-06055B2
9095001511
9095001512
9095001539
9095001550
9095001710
9095001743
9095001826
9095001850
9095001866
91515B0816
91645C0616
84 parts on this diagram · 2 diagrams in section
