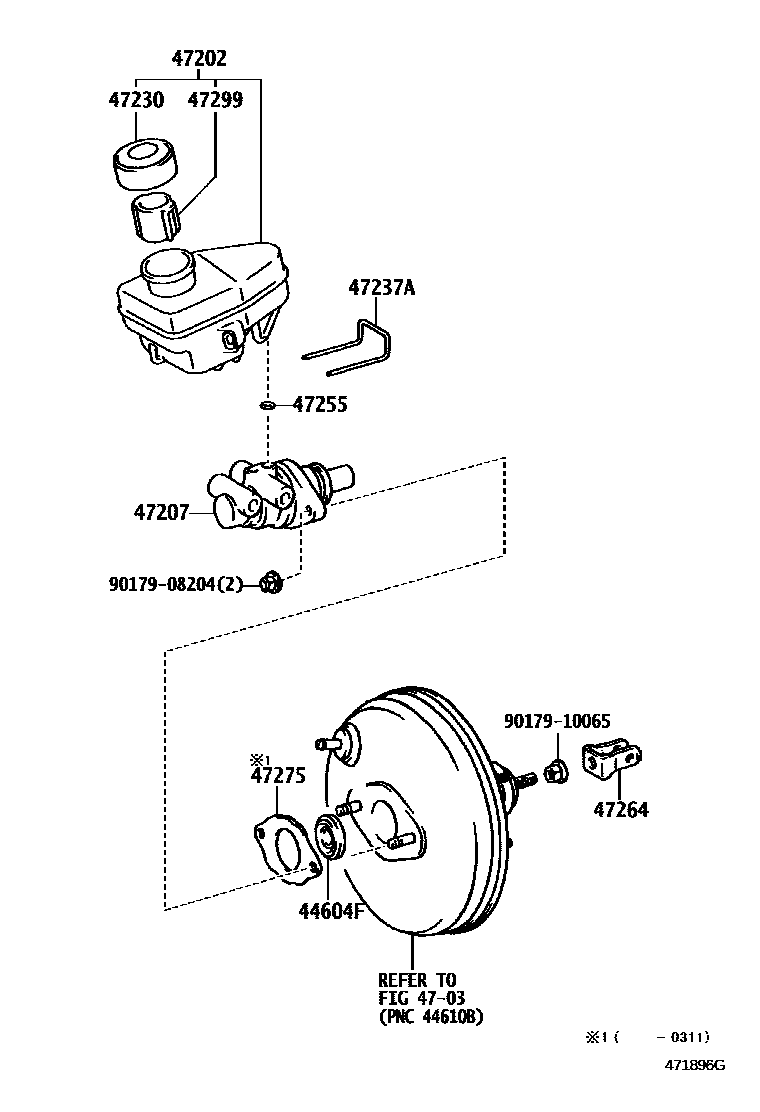

BRAKE MASTER CYLINDER

44604FSEAL, BRAKE BOOSTER BODY

main44604-52070iZZW30199910-200106

main44605-48010iZZW30200106-200208

4703

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-12110iZZW30199910-200203

sub47220-12111

main47220-12111iZZW30200203-200208

47207CYLINDER SUB-ASSY, BRAKE MASTER LESS RESERVOIR TANK

main47207-17010iZZW30199910-200311

main47207-17011iZZW30200311-200707

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-52030iZZW30199910-200208

sub47230-33071

47237ASTOPPER, BREKE MASTER CYLINDER RESERVOIR TANK

main47237-52010iZZW30199910-200208

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-52010iZZW30199910-200208

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-52020iZZW30199910-200208

47275GASKET, BRAKE MASTER CYLINDER

main47275-52010iZZW30199910-200311

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-35010iZZW30199910-200106

sub47299-52010

main47299-52010iZZW30200106-200208

9017908204

main90179-08204

9017910065

main90179-10065

12 parts on this diagram · 1 diagram in section
