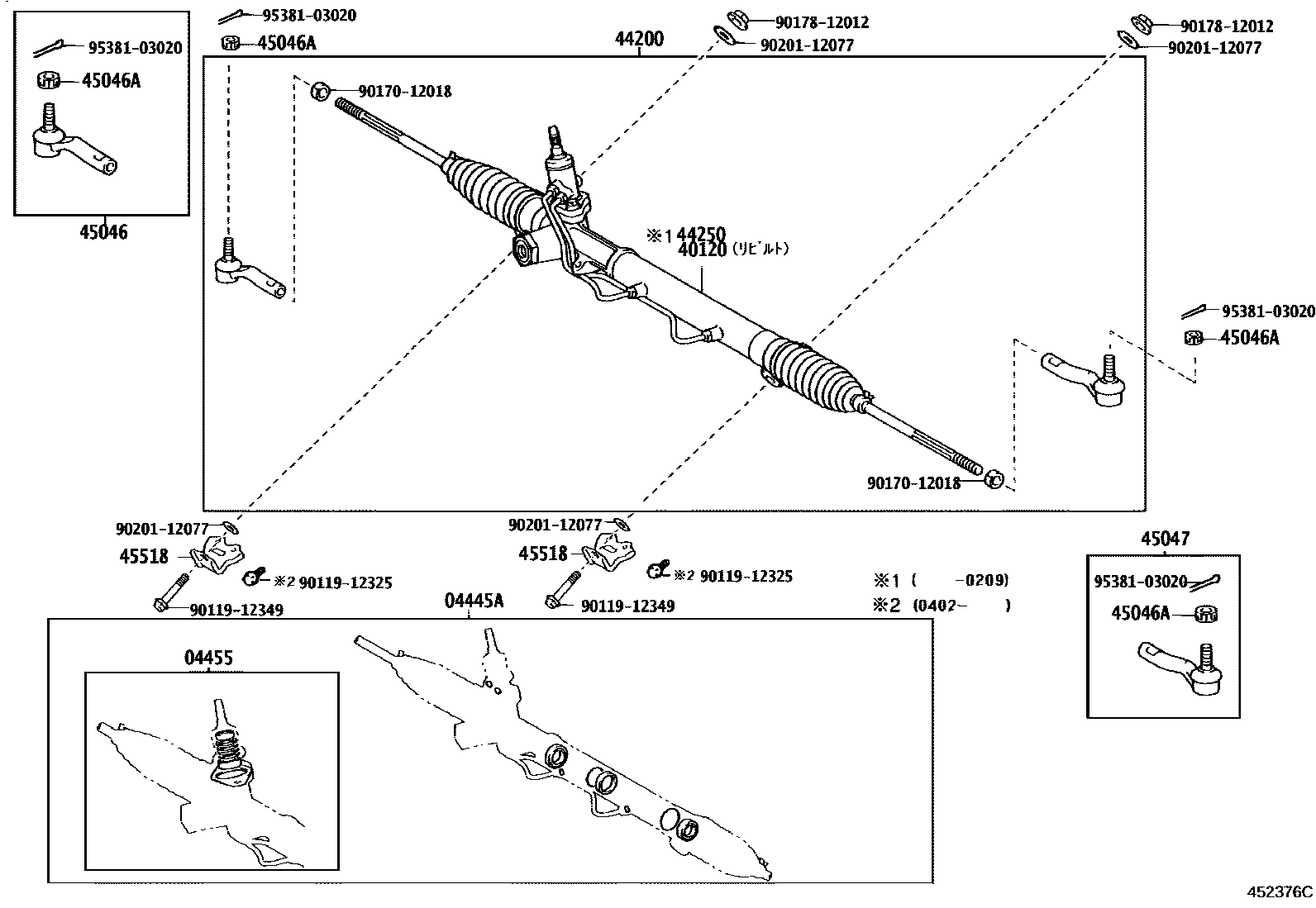

FRONT STEERING GEAR & LINK

0001 1 0002 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-17020iZZW30199910-200208

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-17020iZZW30199910-200208

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-17070iZZW30199910-200005

sub40120-17071

main40120-17071iZZW30200005-200208

44200LINK ASSY, POWER STEERING

main44200-17071iZZW30200208

sub44250-17071

sub45046-19206

sub90170-12018

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-17070iZZW30199910-200005

sub44250-17071

main44250-17071iZZW30200005-200208

45046END SUB-ASSY, TIE ROD, RH

main45046-19206iZZW30199910-200208

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iZZW30199910-200208

45047END SUB-ASSY, TIE ROD, LH

main45046-19206iZZW30199910-200208

45518BRACKET, STEERING RACK HOUSING, NO.3

main45518-17010iZZW30199910-200402

main45518-17020iZZW30200402

9011912325

main90119-12325

9011912349

main90119-12349

9017012018

main90170-12018

9017812012

main90178-12012

9020112077

main90201-12077

9538103020

main95381-03020

15 parts on this diagram · 2 diagrams in section
