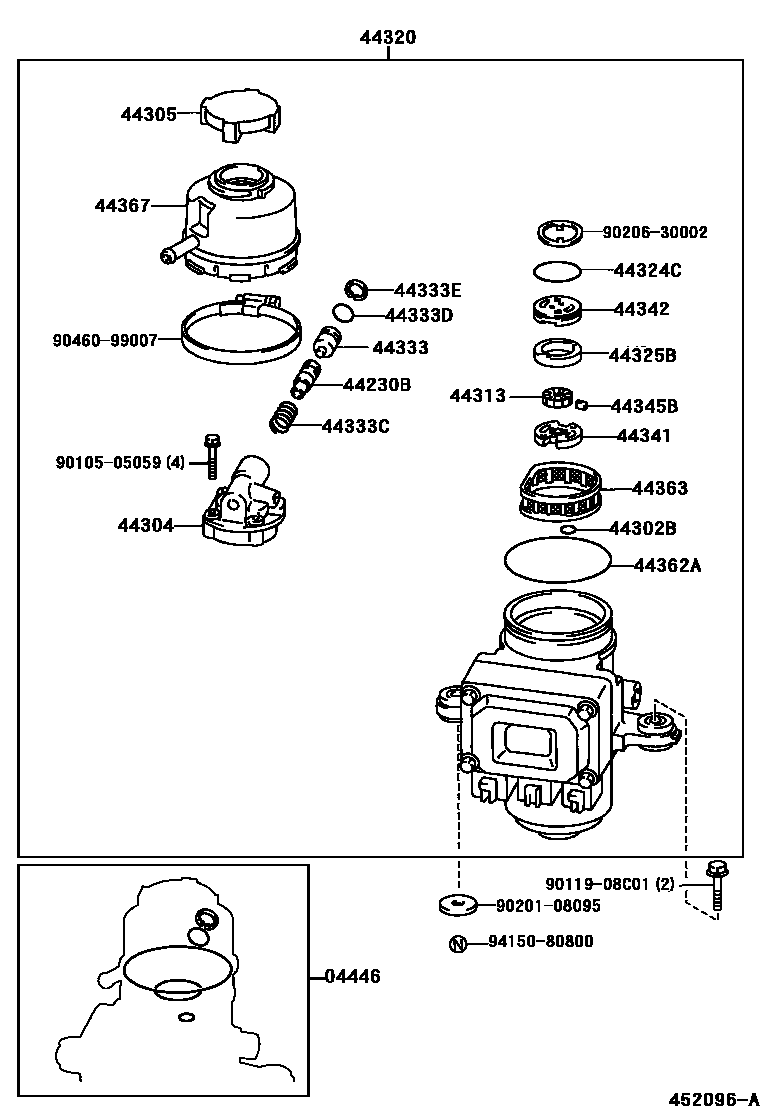

VANE PUMP & RESERVOIR (POWER STEERING)
04446GASKET KIT, POWER STEERING PUMP
44230BVALVE ASSY, PRESSURE CONTROL RELIEF
44302BRING, O, NO.1(FOR VANE PUMP HOUSING)
44304HOUSING SUB-ASSY, VANE PUMP, REAR
44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44313ROTOR, VANE PUMP
44320PUMP ASSY, VANE
44324CRING, O(FOR PUMP HOUSING REAR)
44333SEAT, RELIEF SPRING
44333CSPRING, COMPRESSION(FOR PRESSURE CONTROL RELIEF VALVE)
44333DRING, O(FOR PRESSURE CONTROL RELIEF VALVE)
44333ERING, SNAP(FOR PRESSURE CONTROL RELIEF VALVE)
44341PLATE, VANE PUMP SIDE, FRONT
44342PLATE, VANE PUMP SIDE, REAR
44345BPLATE, VANE PUMP
44362ARING, O(FOR VANE PUMP OIL RESERVOIR)
44363STRAINER, OIL(FOR VANE PUMP)
44367COVER, RESERVOIR
9010505059
main90105-05059
9011908C01
main90119-08C01
9020108095
main90201-08095
9020630002
main90206-30002
9046099007
main90460-99007
9415080800
main94150-80800
25 parts on this diagram · 1 diagram in section
