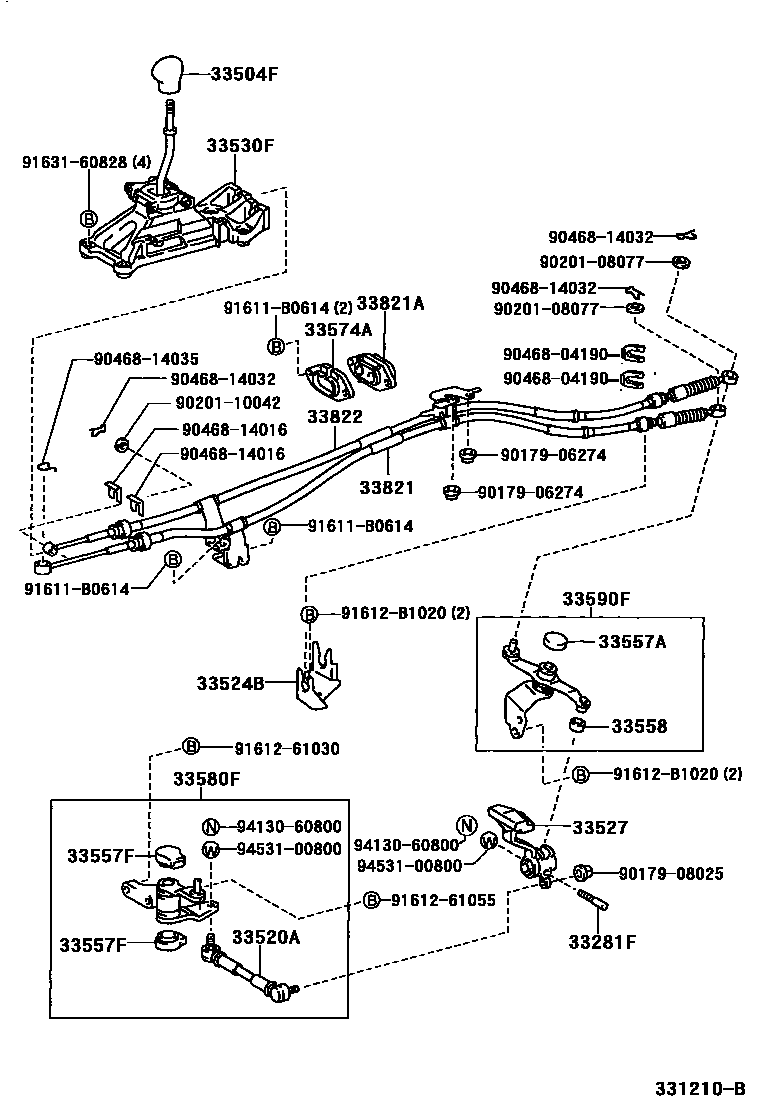

SHIFT LEVER & RETAINER

0001 1 0002 1

33281FPIN, LEVER LOCK (FOR FLOOR SHIFT)

main33281-16020iZZW30..6F¥160199910-200208

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-14120-C1iZZW30..5F200008-200208

sub33504-14120¥6,400

main33504-14120-C1iZZW30199910-200008

sub33504-14120¥6,400

main33504-14140-C1iZZW30199910-200008

BLACK,TRIM2#,3#,5#

sub33504-14140¥2,730

sub33504-17061¥3,030

main33504-14140-C1iZZW30..5F200008-200208

BLACK,TRIM2#,3#,4#,5#

sub33504-14140¥2,730

sub33504-17061¥3,030

main33504-20150-C0iZZW30..6F200208-200707

BLACK,TRIM1#,2#,3#,4#

main33504-53020iZZW30..5FS¥3,330200008-200707

33520ASHAFT ASSY, FLOOR SHIFT CONTROL

main33520-17010iZZW30..5F¥1,620199910-200208

33524BBRACKET, CONTROL CABLE

main33524-17010iZZW30..5F¥1,530199910-200208

33527LEVER, CONTROL SHIFT (FOR FLOOR SHIFT)

main33527-17110iZZW30..5F¥4,960199910-200208

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-17100iZZW30..5F¥15,200199910-200208

main33530-17110iZZW30..5FS¥31,100200008-200208

sub33530-17140¥31,100

main33530-17120iZZW30..6F¥15,200200208

main33530-17140iZZW30..6FS¥31,100200208

33557ACOVER, SELECTING BELLCRANK DUST, NO.1

main33557-20010iZZW30..5F¥370199910-200208

33557FCOVER, CONTROL BELLCRANK DUST (FOR FLOOR SHIFT)

main33557-17020iZZW30..5F¥1,170199910-200208

33558COVER, SELECTING BELLCRANK DUST, NO.2

main33557-17010iZZW30..5F¥240199910-200208

33574ARETAINER, SHIFT CABLE GROMMET, NO.1

main33574-17030iZZW30..5F¥1,070199910-200208

33580FBELLCRANK ASSY, SHIFTING (FOR FLOOR SHIFT)

main33580-17010iZZW30..5F¥7,400199910-200303

sub33580-17011¥7,400

main33580-17011iZZW30..6F¥7,400200303

33590FCRANK ASSY, SELECTING BELL (FOR FLOOR SHIFT)

main33590-17060iZZW30..5F¥1,960199910-200303

sub33590-17061¥1,970

main33590-17061iZZW30..6F¥1,970200303

33821CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)

main33821-17100iZZW30..5F¥14,900199910-200208

sub33821-17110¥17,200

main33821-17110iZZW30..6F¥17,200200208

33821AGROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE)

main33577-17010iZZW30..5F¥950199910-200208

sub33577-17020¥930

main33577-17020iZZW30..6F¥930200208

33822CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)

main33822-17070iZZW30..5F¥14,900199910-200208

sub33822-17080¥17,200

main33822-17080iZZW30..6F¥17,200200208

9017906274

main90179-06274¥70

9017908025

main90179-08025¥80

9020108077

main90201-08077¥230

9020110042

main90201-10042¥90

9046804190

main90468-04190¥260

9046814016

main90468-14016¥160

9046814032

main90468-14032¥90

9046814035

main90468-14035¥160

91611B0614

main91611-B0614¥110

9161261030

main91612-61030¥110

9161261055

main91612-61055¥130

91612B1020

main91612-B1020¥130

9163160828

main91631-60828¥80

9413060800

main94130-60800¥60

9453100800

main94531-00800¥160

30 parts on this diagram · 2 diagrams in section
