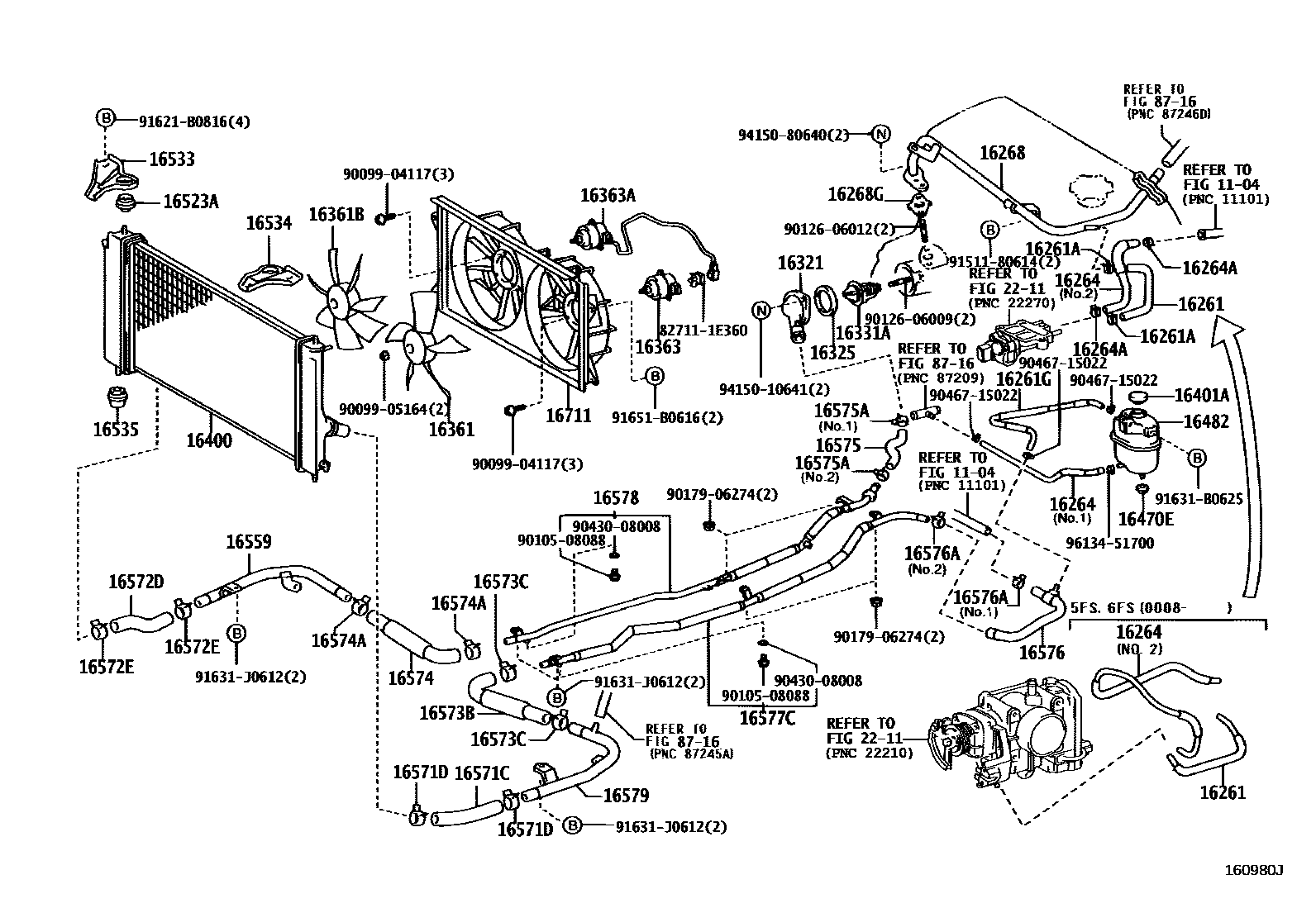

RADIATOR & WATER OUTLET
1104
16261HOSE, WATER BY-PASS
16261GHOSE, WATER BY-PASS, NO.1
16264HOSE, WATER BY-PASS, NO.2
16268PIPE, WATER BY-PASS, NO.1
sub16268-22061
16268GGASKET(FOR WATER BY-PASS PIPE)
16325GASKET, WATER INLET HOUSING, NO.1
16361FAN
16361BFAN, NO.2
16363MOTOR, COOLING FAN
16363AMOTOR, COOLING FAN, NO.2
16400RADIATOR ASSY
16401ACAP SUB-ASSY, RADIATOR RESERVE TANK
sub16475-51010
16470EGROMMET, RADIATOR RESERVE TANK HOSE
16482TANK SUB-ASSY, RADIATOR RESERVE
16523ACUSHION, RADIATOR SUPPORT
16533SUPPORT, RADIATOR, UPPER
16534SUPPORT, RADIATOR, NO.2
16535SUPPORT, RADIATOR, LOWER
16559PIPE, RADIATOR, NO.4
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
16573BHOSE, RADIATOR, NO.3
16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3
16574HOSE, RADIATOR, NO.4
16574ACLIP, RADIATOR HOSE, NO.4
16575HOSE, RADIATOR, NO.5
16575ACLIP, RADIATOR HOSE, NO.5
16576HOSE, RADIATOR, NO.6
16577CPIPE, RADIATOR
16578PIPE, RADIATOR, NO.2
16579PIPE, RADIATOR, NO.3
16711SHROUD, FAN
2211
8716
827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E360
9009904117
main90099-04117
9009905164
main90099-05164
9010508088
main90105-08088
9012606009
main90126-06009
9012606012
main90126-06012
9017906274
main90179-06274
9043008008
main90430-08008
9046715022
main90467-15022
9151180614
main91511-80614
91621B0816
main91621-B0816
91631B0625
main91631-B0625
91631J0612
main91631-J0612
91651B0616
main91651-B0616
9415010641
main94150-10641
9415080640
main94150-80640
9613451700
main96134-51700
59 parts on this diagram · 2 diagrams in section
