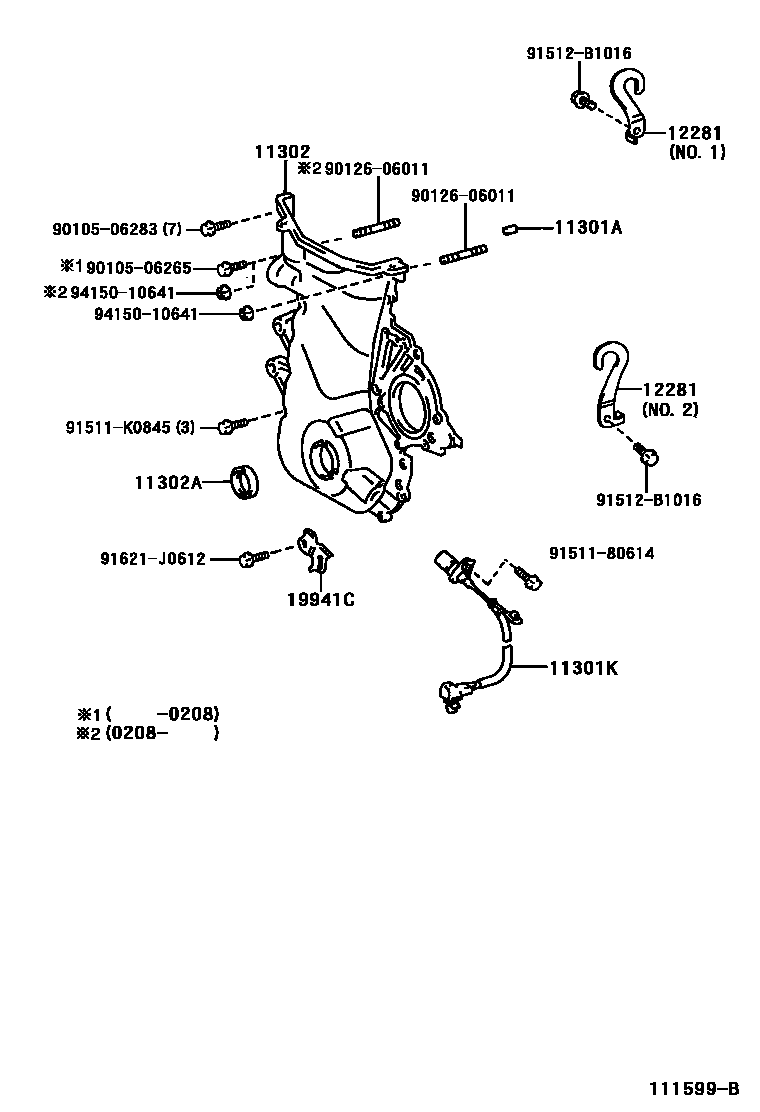

TIMING GEAR COVER & REAR END PLATE

11301APIN, STRAIGHT(FOR TIMING GEAR CASE)

main90250-08074i1ZZFE..ZZW30199910-200208

11301KSENSOR, CRANK POSITION

main90919-05030i1ZZFE..ZZW30199910-200208

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11321-0D030i1ZZFE..ZZW30200206-200208

main11321-22021i1ZZFE..ZZW30200206-200208

main11321-22021i1ZZFE..ZZW30199910-200206

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-38059i1ZZFE..ZZW30199910-200501

main90311-38089i1ZZFE..ZZW30200501

12281HANGER, ENGINE, NO.1

main12281-15040i1ZZFE..ZZW30199910-200212

main12281-15050i1ZZFE..ZZW30200212

main12281-22021i1ZZFE..ZZW30199910-200208

19941CCLAMP, CORD(FOR CRANK POSITION SENSOR)

main19941-22010i1ZZFE..ZZW30199910-200208

9010506265

main90105-06265

9010506283

main90105-06283

9012606011

main90126-06011

9151180614

main91511-80614

91511K0845

main91511-K0845

91512B1016

main91512-B1016

91621J0612

main91621-J0612

9415010641

main94150-10641

14 parts on this diagram · 1 diagram in section
