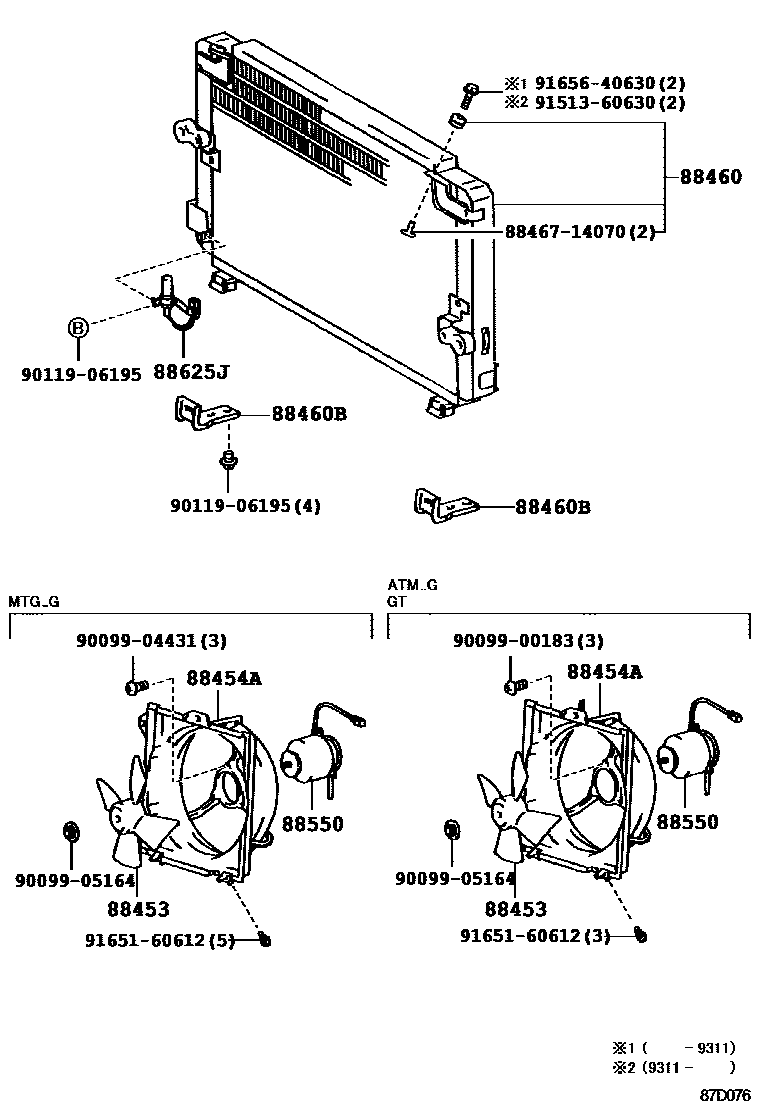

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

88453FAN, COOLING (FOR CONDENSER)

main16361-16020iSW20..5F..G198912

main16361-64010iSW20..GT;SW20..4FC198912

88454ASHROUD, FAN

main16711-74300iSW20..GT;SW20..4FC198912

main88454-17010iSW20..5F..G198912

88460CONDENSER ASSY, COOLER

main88460-17060iSW20198912-199311

main88460-17080iSW20199311

88460BBRACKET, COOLER CONDENSER, NO.1

main88688-17270iSW20198912

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main16363-74020iSW20198912

88625JTHERMISTOR, COOLER

main88625-17120iSW20198912

8846714070CUSHION, COOLER CONDENSER, NO.1

main88467-14070

9009900183

main90099-00183

9009904431

main90099-04431

9009905164

main90099-05164

9011906195

main90119-06195

9151360630

main91513-60630

9165160612

main91651-60612

9165640630

main91656-40630

14 parts on this diagram · 7 diagrams in section
