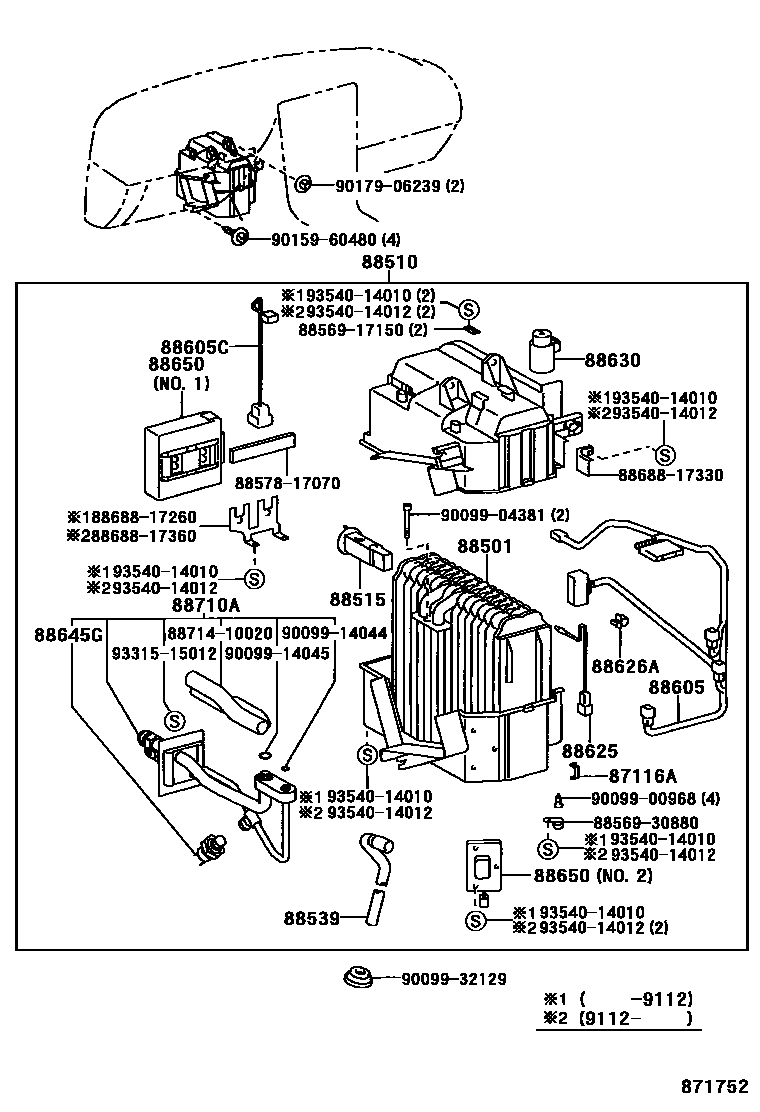

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-14010×2iSW20198912

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-17040iSW20198912-199311

main88501-17050iSW20199311-199501

main88501-17051iSW20199501

88510UNIT ASSY, COOLER

main88510-17170iSW20198912-199112

main88510-17171iSW20199112-199208

main88510-17180iSW20199208-199310

main88510-17181iSW20199310-199311

main88510-17260iSW20199311

88515VALVE, COOLER EXPANSION

main88515-14060iSW20198912-199102

main88515-14061iSW20199102-199108

main88515-14062iSW20199108-199112

main88515-20100iSW20199311

sub88515-22240

main88515-33010iSW20199112-199311

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-17030iSW20198912

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-17290iSW20198912-199112

main88605-17291iSW20199112-199311

main88605-17310iSW20199311

88605CHARNESS SUB-ASSY, COOLER WIRING, NO.2

main88648-17030iSW20198912-199311

88625THERMISTOR, COOLER, NO.1

main88625-20350iSW20199112-199311

main88625-24050iSW20198912-199112

88626AHOLDER, THERMISTOR

main88626-28010iSW20198912

88630RELAY ASSY, COOLER

main88630-95702iSW20198912

88645GSWITCH, PRESSURE

main88645-30281iSW20198912-199311

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-17100iSW20198912-199112

main88650-17130iSW20199112

main88650-20590iSW20198912

88710ATUBE ASSY, AIR CONDITIONER

main88710-17080iSW20198912-199112

main88710-17090iSW20199112-199311

main88710-17100iSW20199311

8856917150CLAMP (FOR COOLER RELAY)

main88569-17150

8856930880CLAMP (FOR COOLER RELAY)

main88569-30880

8857817070PAKING, COOLER AIR DUCT

main88578-17070

8868817260BRACKET, COOLER DIAPHRAGM

main88688-17260

8868817330BRACKET, COOLER DIAPHRAGM

main88688-17330

8868817360BRACKET, COOLER DIAPHRAGM

main88688-17360

8871410020HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-10020

9009900968

main90099-00968

9009904381

main90099-04381

9009914044

main90099-14044

9009914045

main90099-14045

9009932129

main90099-32129

9015960480

main90159-60480

9017906239

main90179-06239

9331515012

main93315-15012

9354014010

main93540-14010

9354014012

main93540-14012

30 parts on this diagram · 2 diagrams in section
