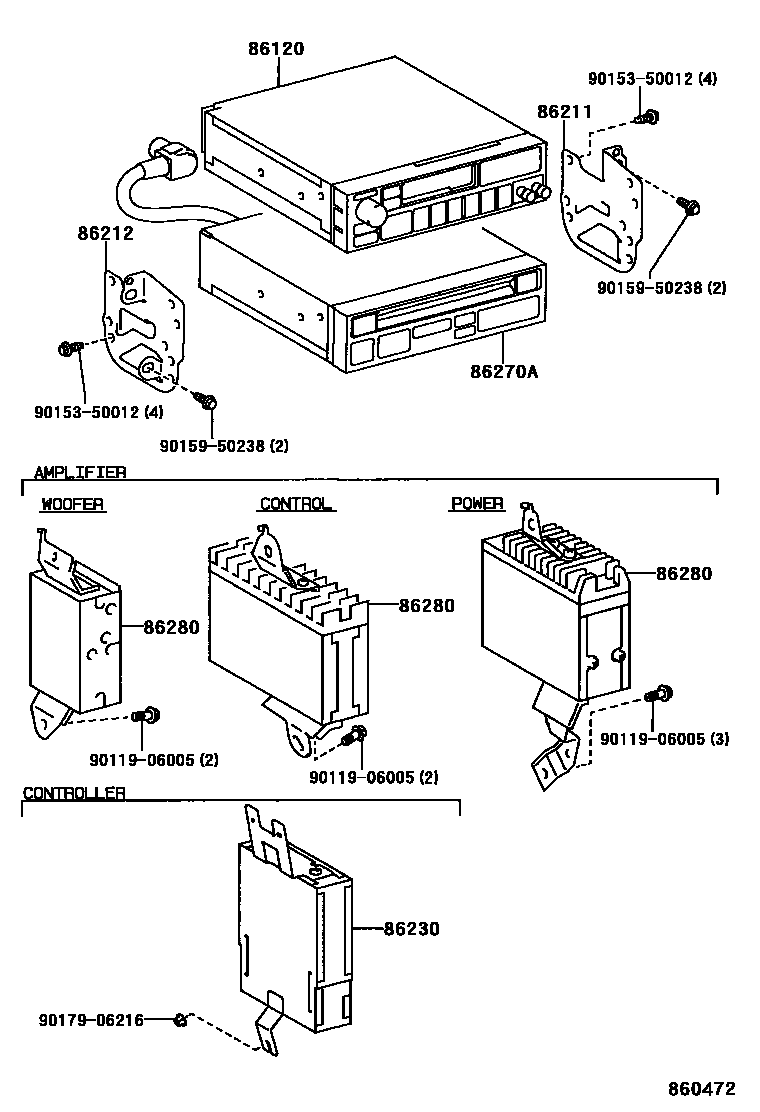

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1

86120RECEIVER ASSY, RADIO

main86120-14860iSW20199606

main86120-2B020iSW20..G198912-199112

main86120-2B050iSW20198912-199311

main86120-2B330iSW20199112-199311

main86120-2B490iSW20199311-199606

main86120-2B500iSW20199311

86211BRACKET, RADIO, NO.1

main86211-17040iSW20198912

86212BRACKET, RADIO, NO.2

main86212-17040iSW20198912

86230CONTROLLER ASSY, STEREO COMPONENT

main86230-17010iSW20199112

86270ADISC PLAYER ASSY

main86270-20050iSW20198912-199112

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-17040iSW20198912-199112

WOOFER

main86280-17041iSW20199112

WOOFER,LH

main86280-17050iSW20198912-199112

CONTROL

main86280-17070iSW20199112

WOOFER,RH

main86280-17080iSW20..G199112-199311

POWER

main86280-17080iSW20..G199112-199311

main86280-17090iSW20199112-199311

main86280-17090iSW20199311

POWER

9011906005

main90119-06005

9015350012

main90153-50012

9015950238

main90159-50238

9017906216

main90179-06216

10 parts on this diagram · 3 diagrams in section
