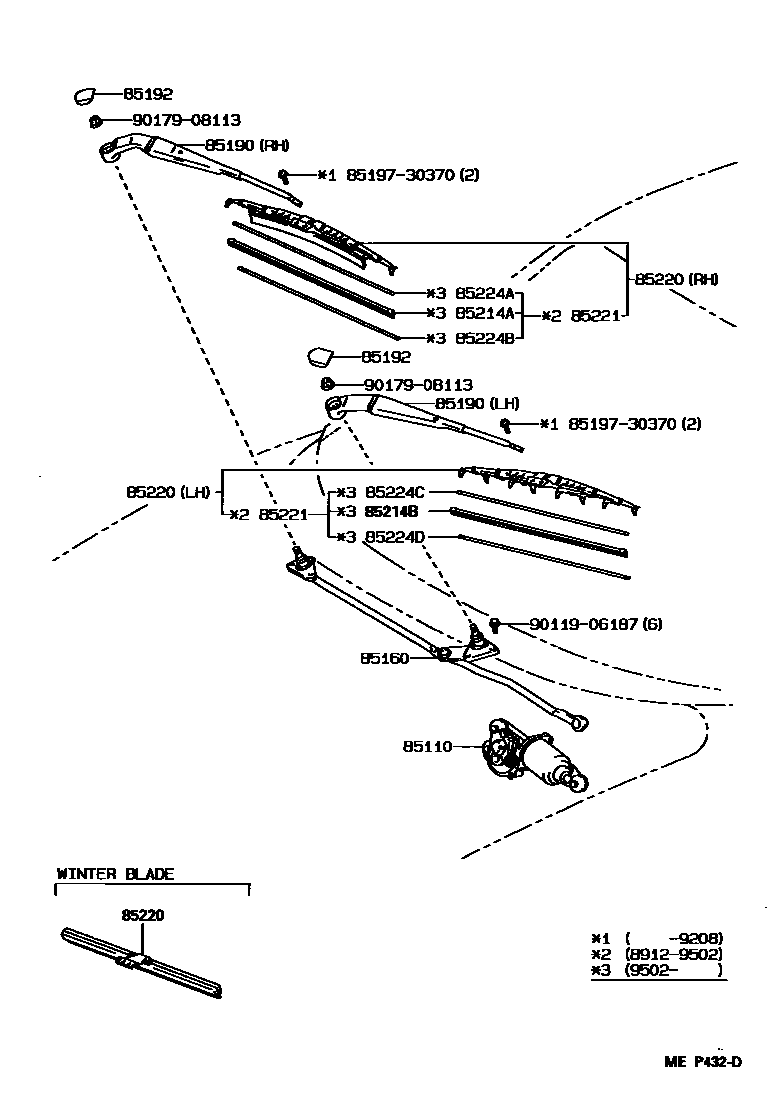

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85070-17040iSW20198912-199205

main85070-17041iSW20199205

main85070-17120iSW20..GT199311-199712

85160LINK ASSY, WINDSHIELD WIPER

main85150-17010iSW20198912-199205

sub85150-17011

main85150-17011iSW20199205

85190ARM ASSY, WINDSHIELD WIPER

main85211-17040iSW20198912-199208

main85211-17041iSW20199208

main85221-17050iSW20198912-199208

main85221-17051iSW20199208

85192COVER, WINDSHIELD WIPER ARM

main85192-12800iSW20198912-199205

main85292-12020iSW20199206

85214ARUBBER, WIPER, RH

main85214-30250iSW20199502

85214BRUBBER, WIPER, LH

main85214-60020iSW20199502

85220BLADE ASSY, WINDSHIELD WIPER

main85212-17040iSW20198912-199208

main85212-17080iSW20199208-199301

sub85212-17081

main85212-17081iSW20199301

main85220-32550iSW20198912-199003

sub85291-32030

main85220-32560iSW20198912-199003

sub85291-32020

main85222-17020iSW20198912-199208

main85222-3H010iSW20199208-199301

sub85222-3H080

main85222-3H051iSW20199301

sub85222-33051

main85291-22050iSW20199208

sub85291-33060

main85291-30030iSW20199208

sub85291-22080

main85291-32020iSW20199003-199208

main85291-32030iSW20199003-199208

85221BLADE, WINDSHIELD WIPER

main85213-16090iSW20199208-199301

sub85213-30250

main85213-17040iSW20198912-199208

sub85213-12280

main85213-30250iSW20199301-199502

sub85214-30250

main85223-17010iSW20198912-199208

sub85221-30130

main85223-33050iSW20199301-199502

sub85214-60020

main85223-3H011iSW20199208-199301

sub85213-33041

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-30380iSW20199502

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-30380iSW20199502

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-28090iSW20199502

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-28080iSW20199502

8519730370

main85197-30370

9011906187

main90119-06187

9017908113

main90179-08113

15 parts on this diagram · 1 diagram in section
