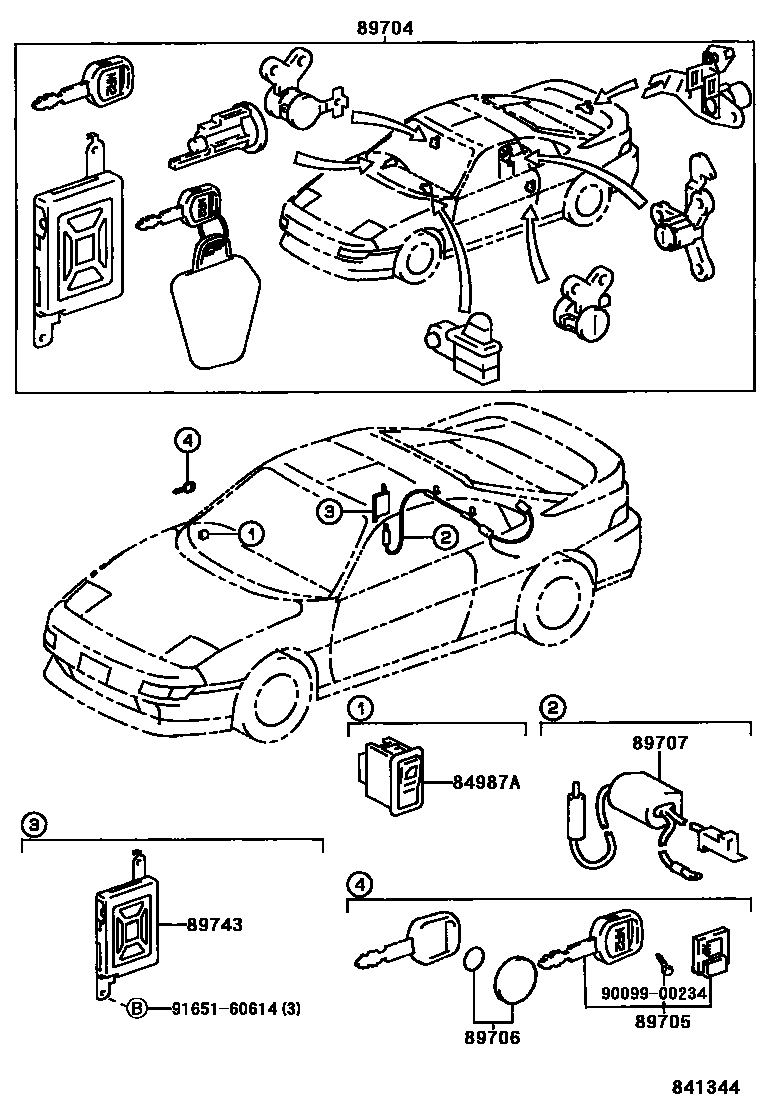

WIRELESS DOOR LOCK

0001 1 0002 1

84987ASWITCH, KEYLESS ENTRY CANCEL

main84987-17010iSW20198912-199311

89704CONTROL SET, WIRELESS DOOR LOCK

main89704-17010iSW20198912-199112

sub89708-17010

main89704-17101iSW20199112-199311

sub89708-17020

main89704-17110iSW20199311-199503

89705TRANSMITTER, DOOR CONTROL

main89705-17010iSW20198912-199112

main89705-17011iSW20199112-199311

89706BATTERY SET, TRANSMITTER

main89706-30010iSW20..GT198912-199112

sub89745-48020

sub90301-15006

main89706-50010iSW20199112

sub89745-48020

sub90151-20002

sub90301-14005

89707CORD SUB-ASSY, WIRELESS DOOR LOCK

main89707-17010iSW20198912

89743RECEIVER, DOOR CONTROL

main89743-17010iSW20198912-199311

9009900234

main90099-00234

9165160614

main91651-60614

8 parts on this diagram · 2 diagrams in section
