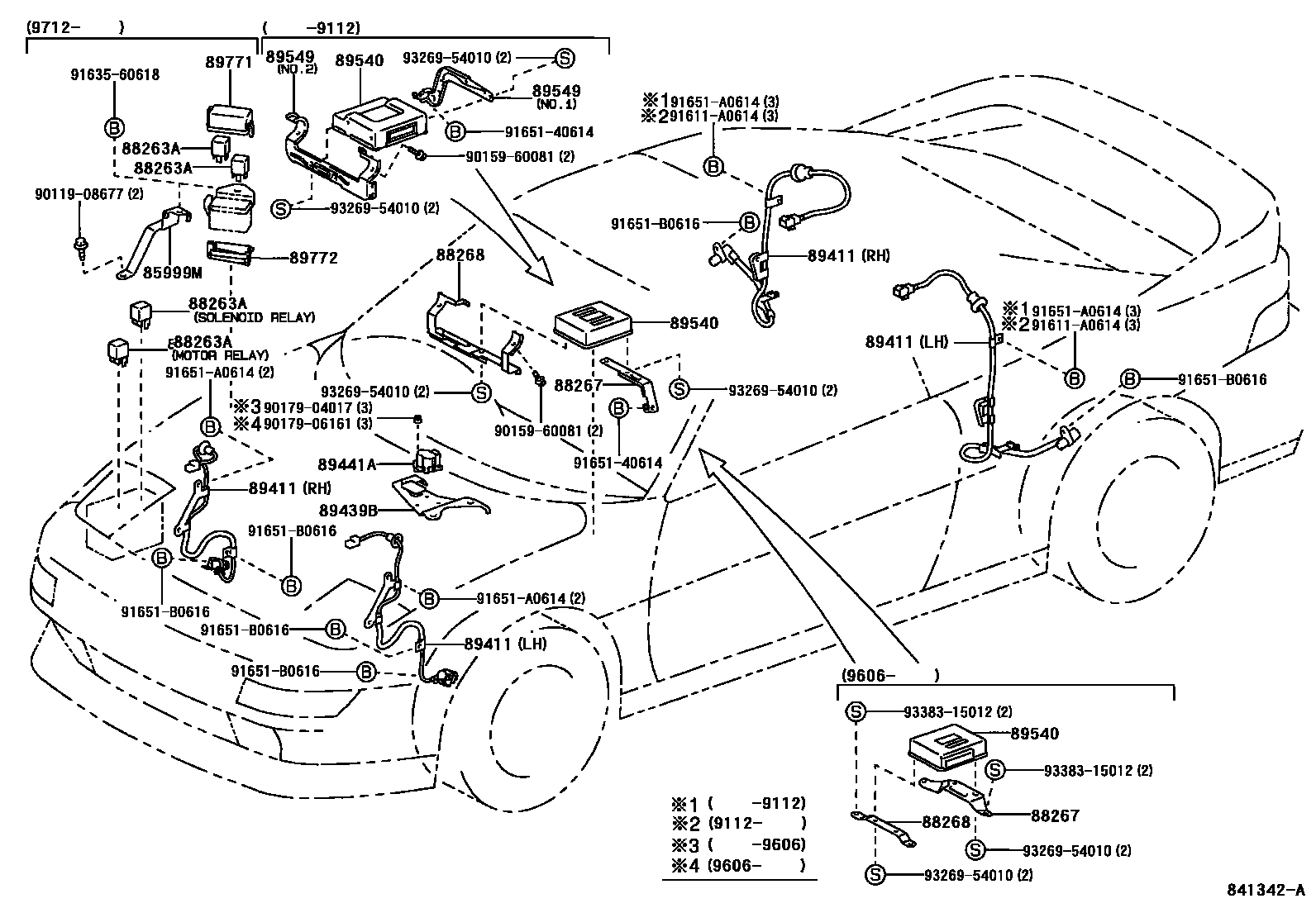

ABS & VSC

85999MBRACKET, RELAY

main85999-17110iSW20199712

88263ARELAY, SKID CONTROL

main88263-14110iSW20198912

MOTOR

main88263-14120iSW20198912-199712

SOLENOID

main88263-24030iSW20199712

SOLENOID

88267BRACKET, SKID CONTROL COMPUTER, NO.1

main88267-17060iSW20199112-199606

main88267-17070iSW20..GT199112-199606

main88267-17090iSW20199606-199712

main88267-17091iSW20199712

88268BRACKET, SKID CONTROL COMPUTER, NO.2

main88268-17060iSW20199112-199606

main88268-17070iSW20..GT199112-199606

main88268-17090iSW20199606-199712

main88268-17100iSW20..GT199606-199712

main88268-17110iSW20199712

89411SENSOR, SPEED

main89542-17010iSW20198912-199112

FRONT RH

main89542-17020iSW20199112

FRONT RH

main89543-17010iSW20198912-199112

FRONT LH

main89543-17020iSW20199112

FRONT LH

main89545-17010iSW20198912

REAR RH

main89546-17010iSW20198912

REAR LH

89439BBRACKET, SENSOR

main89439-17040iSW20..GT199311-199606

89441ASENSOR, DECELERATION

main89440-17020iSW20199606-199712

main89440-17030iSW20199712

main89441-20050iSW20..GT199311-199606

sub89441-42010

89540COMPUTER ASSY, SKID CONTROL

main89541-17010iSW20198912-199112

main89541-17020iSW20199112-199311

main89541-17030iSW20..GT199112-199712

main89541-17040iSW20..GT199311-199606

main89541-17050iSW20199606-199712

main89541-17060iSW20199712

89549BRACKET, SKID CONTROL COMPUTER

main88267-17040iSW20198912-199112

main88268-17040iSW20198912-199112

89771COVER, ABS RELAY BLOCK, UPPER

main89771-12010iSW20199712

89772COVER, ABS RELAY BLOCK, LOWER

main89772-12010iSW20199712

9011908677

main90119-08677

9015960081

main90159-60081

9017904017

main90179-04017

9017906161

main90179-06161

91611A0614

main91611-A0614

9163560618

main91635-60618

9165140614

main91651-40614

91651A0614

main91651-A0614

91651B0616

main91651-B0616

9326954010

main93269-54010

9338315012

main93383-15012

22 parts on this diagram · 1 diagram in section
