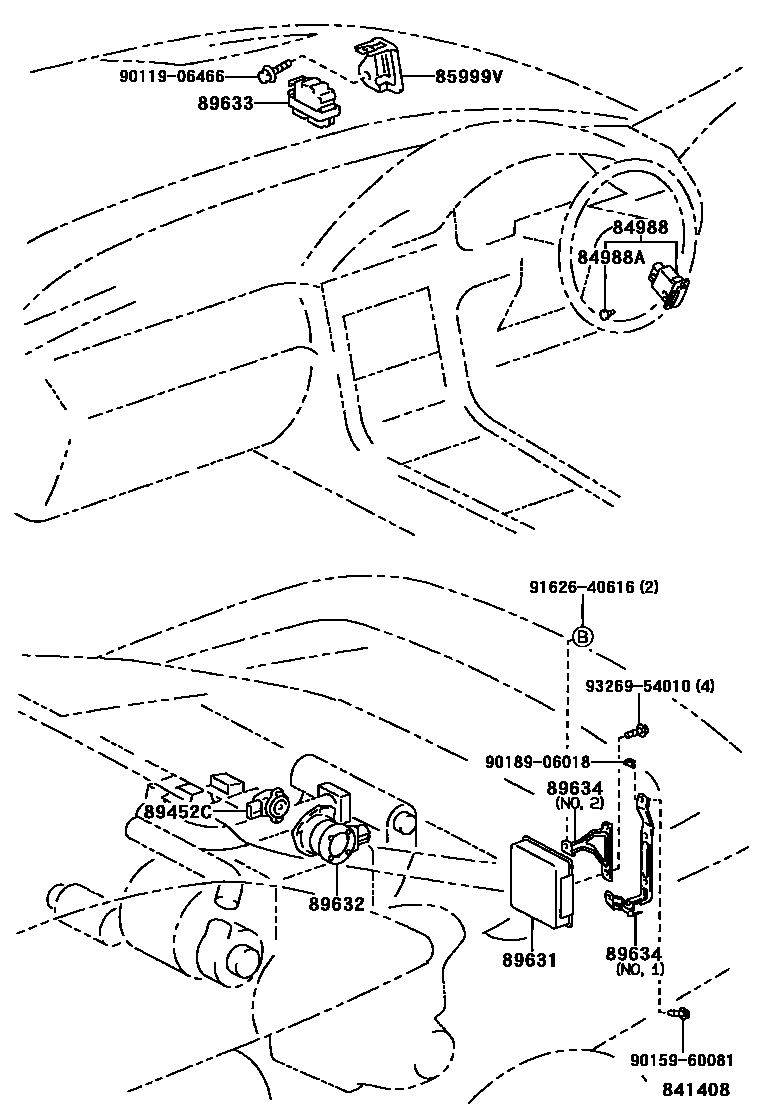

TRACTION CONTROL

84988SWITCH, TRACTION CONTROL

main84988-17010iSW20..GT199112-199712

84988ABULB, TRACTION CONTROL SWITCH

main84999-10320iSW20..GT199112-199712

85999VBRACKET, RELAY

main85999-17090iSW20..GT199112-199712

89452CSENSOR, THROTTLE POSITION

main89452-12040iSW20..GT199112-199311

main89452-22090iSW20..GT199311-199712

89631COMPUTER, TRACTION CONTROL

main89631-17010iSW20..GT199112-199311

main89631-17020iSW20..GT199311-199712

89632MOTOR, TRACTION THROTTLE VALVE

main89632-17010iSW20..GT199112-199311

main89632-20010iSW20..GT199311-199712

89633RELAY, TRACTION CONTROL

main88263-12070iSW20..GT199112-199603

sub88263-12080

main88263-35090iSW20..GT199603-199712

89634BRACKET, TRACTION CONTROL COMPUTER

main89634-17011iSW20..GT199112-199712

main89634-17021iSW20..GT199112-199712

9011906466

main90119-06466

9015960081

main90159-60081

9018906018

main90189-06018

9162640616

main91626-40616

9326954010

main93269-54010

13 parts on this diagram · 1 diagram in section
