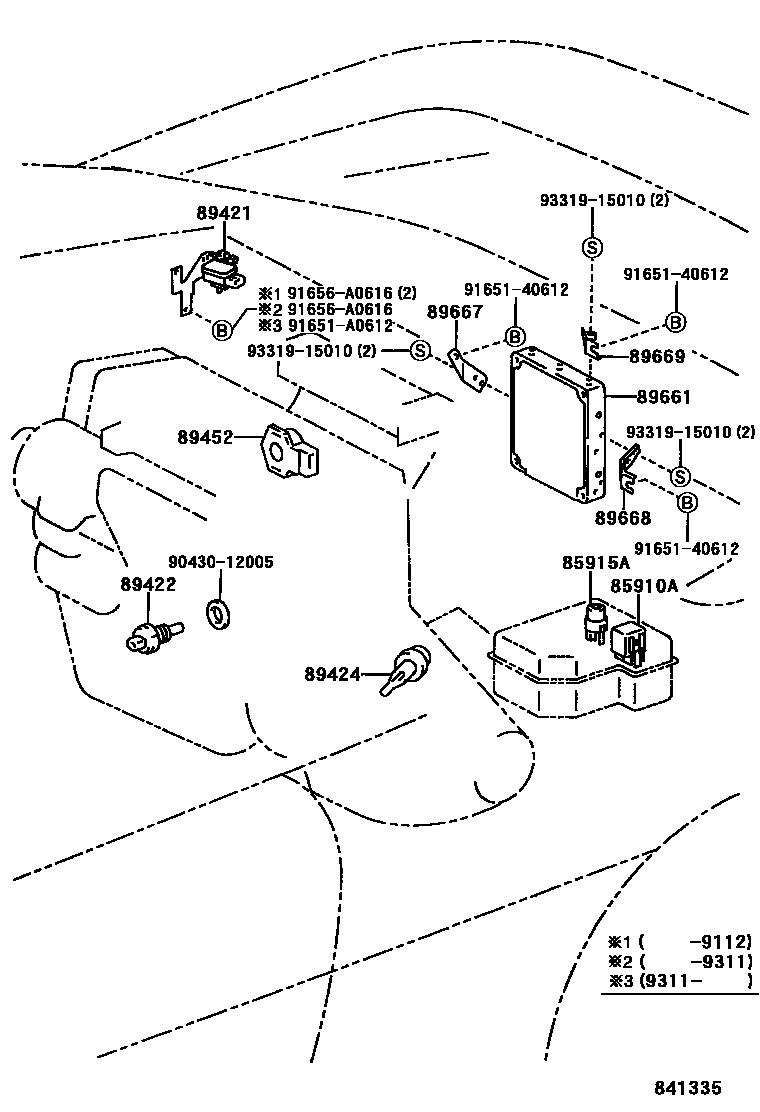

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-30050iSW20198912

85915ARELAY, MAIN

main90987-02004iSW20198912

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89420-17040iSW20..G198912-199712

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-16010iSW20..G199712

main89422-20010iSW20198912-199311

main89422-22030iSW20..G199712

main89422-35010iSW20..GT199311-199712

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iSW20..GT198912-199712

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-12040iSW20198912-199311

main89452-20130iSW20..G199712

main89452-22090iSW20199311-199712

89661COMPUTER, ENGINE CONTROL

main89661-17280iSW20..5F..G198912-199112

main89661-17290iSW20..4FC198912-199112

main89661-17320iSW20..GT198912-199003

sub89661-17321

main89661-17321iSW20..GT199003-199101

sub89661-17322

main89661-17322iSW20..GT199101-199112

main89661-17350iSW20..5F..G199112-199311

main89661-17360iSW20..4FC199112-199311

main89661-17380iSW20..GT199112-199311

main89661-17460iSW20..GT199311

main89661-17480iSW20..5F..G199311-199712

main89661-17490iSW20..4FC199311-199712

main89661-17560iSW20..5F..G199712-199802

sub89661-17561

main89661-17561iSW20..5F..G199802

main89661-17570iSW20..4FC199712-199802

sub89661-17571

main89661-17571iSW20..4FC199802

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-17030iSW20198912-199712

main89667-17040iSW20..G199712

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-17050iSW20198912-199112

main89668-17060iSW20199112-199712

main89668-17070iSW20..G199712

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-17060iSW20198912

9043012005

main90430-12005

9165140612

main91651-40612

91651A0612

main91651-A0612

91656A0616

main91656-A0616

9331915010

main93319-15010

15 parts on this diagram · 2 diagrams in section
