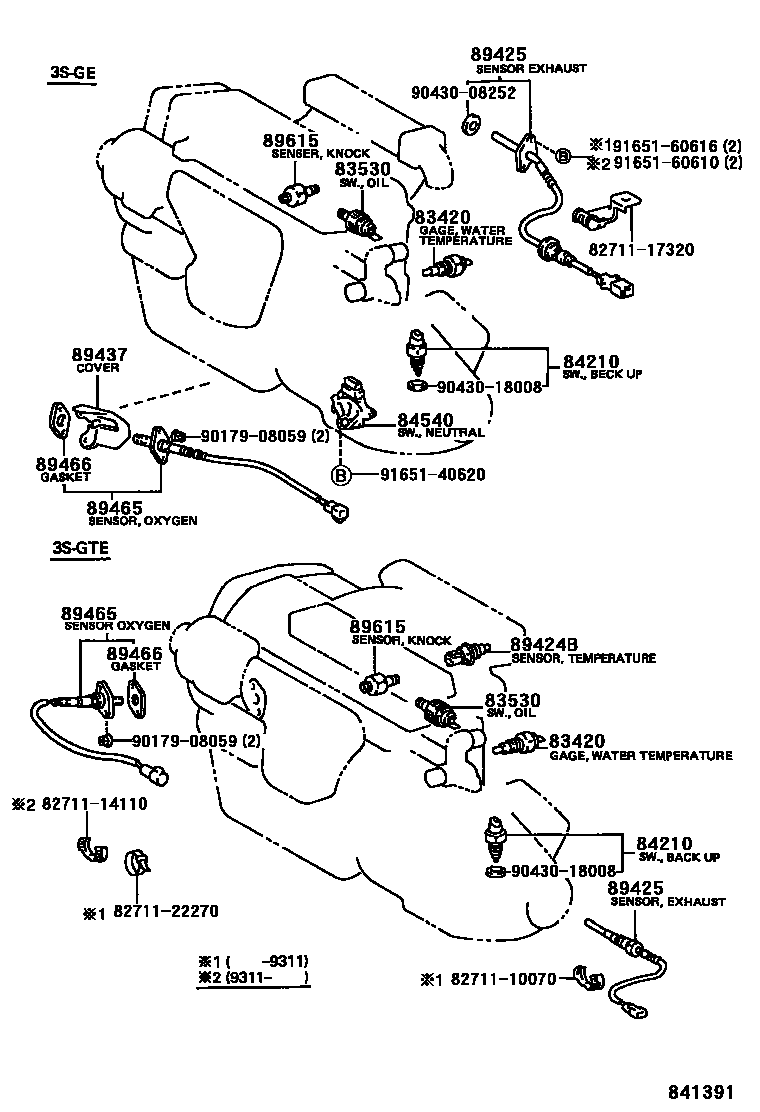

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1FRONT LUGGAGE 0004 1INSTRUMENT PANEL SWITCH 0005 1COMBINATION & IGNITION SWITCH0006 1COMBINATION & IGNITION SWITCH0007 1COWL RELAY & SWITCH 0008 1DOOR SWITCH & RELAY 0009 1REAR LUGGAGE

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iSW20..GT199211-199712

main83420-16040iSW20..G199311-199908

main83420-20020iSW20198912-199211

main83420-20030iSW20199211-199311

sub83420-16040

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14060iSW20199211-199311

sub83530-30090

main83530-28020iSW20199802

main83530-30080iSW20198912-199211

sub83530-60040

main83530-30090iSW20199311-199802

sub83530-60020

main83530-60020iSW20199802

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iSW20..5F198912

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-12170iSW20..4FC198912-199311

main84540-16040iSW20..4FC199311-199712

main84540-16050iSW20..4FC199712

89424BSWITCH, INLET AIR TEMPERATURE

main89424-24010iSW20..GT199311

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-17050iSW20..GT198912-199112

main89425-17060iSW20..GT199112-199311

main89425-17080iSW20..GT199311-199712

main89425-19425iSW20..G198912-199112

main89425-19475iSW20..G199112-199311

main89425-19555iSW20..G199311-199712

89437COVER, SENSOR

main89437-17020iSW20..G198912

89465SENSOR, OXYGEN

main89465-19415iSW20..G198912-199112

main89465-19515iSW20..G199112-199311

main89465-19705iSW20..G199511

MARK = 89465-17170

main89465-29355iSW20..GT198912-199311

main89465-29805iSW20..GT199311

main89465-29815iSW20..G199311-199511

MARK = 89465-17140

89466GASKET, OXYGEN SENSOR

main89466-20020iSW20..G198912

main89466-20030iSW20..GT198912

89615SENSOR, KNOCK CONTROL

main89615-20010iSW20198912-199108

main89615-20060iSW20199311-199908

main89615-50010iSW20199108-199311

8271110070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10070

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

8271117320WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-17320

8271122270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22270

9017908059

main90179-08059

9043008252

main90430-08252

9043018008

main90430-18008

9165140620

main91651-40620

9165160610

main91651-60610

9165160616

main91651-60616

20 parts on this diagram · 9 diagrams in section
