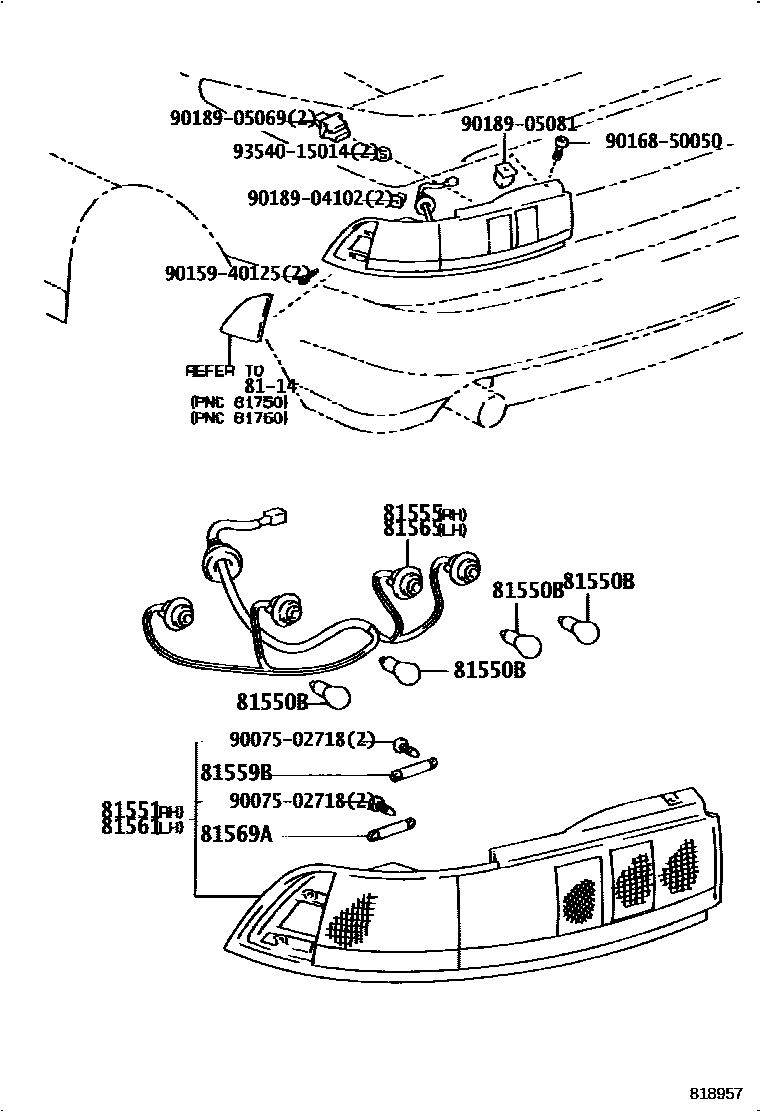

REAR COMBINATION LAMP

0001 1 0002 1

8114

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210iSW20198912

main99132-21210iSW20198912-199311

81551LENS, REAR COMBINATION LAMP, RH

main81551-17060iSW20198912-199311

main81551-17100iSW20199311

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-17060iSW20198912-199311

main81555-17100iSW20199311

81559BBRACKET, REAR COMBINATION LAMP, RH

main81559-17060iSW20198912-199311

main90904-62001iSW20199311

81561LENS, REAR COMBINATION LAMP, LH

main81561-17100iSW20198912-199311

main81561-17140iSW20199311

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-17060iSW20198912-199311

main81555-17100iSW20199311

81569ABRACKET, REAR COMBINATION LAMP, LH

main81559-17060iSW20198912-199311

main90904-62001iSW20199311

9007502718

main90075-02718

9015940125

main90159-40125

9016850050

main90168-50050

9018904102

main90189-04102

9018905069

main90189-05069

9018905081

main90189-05081

9354015014

main93540-15014

15 parts on this diagram · 2 diagrams in section
