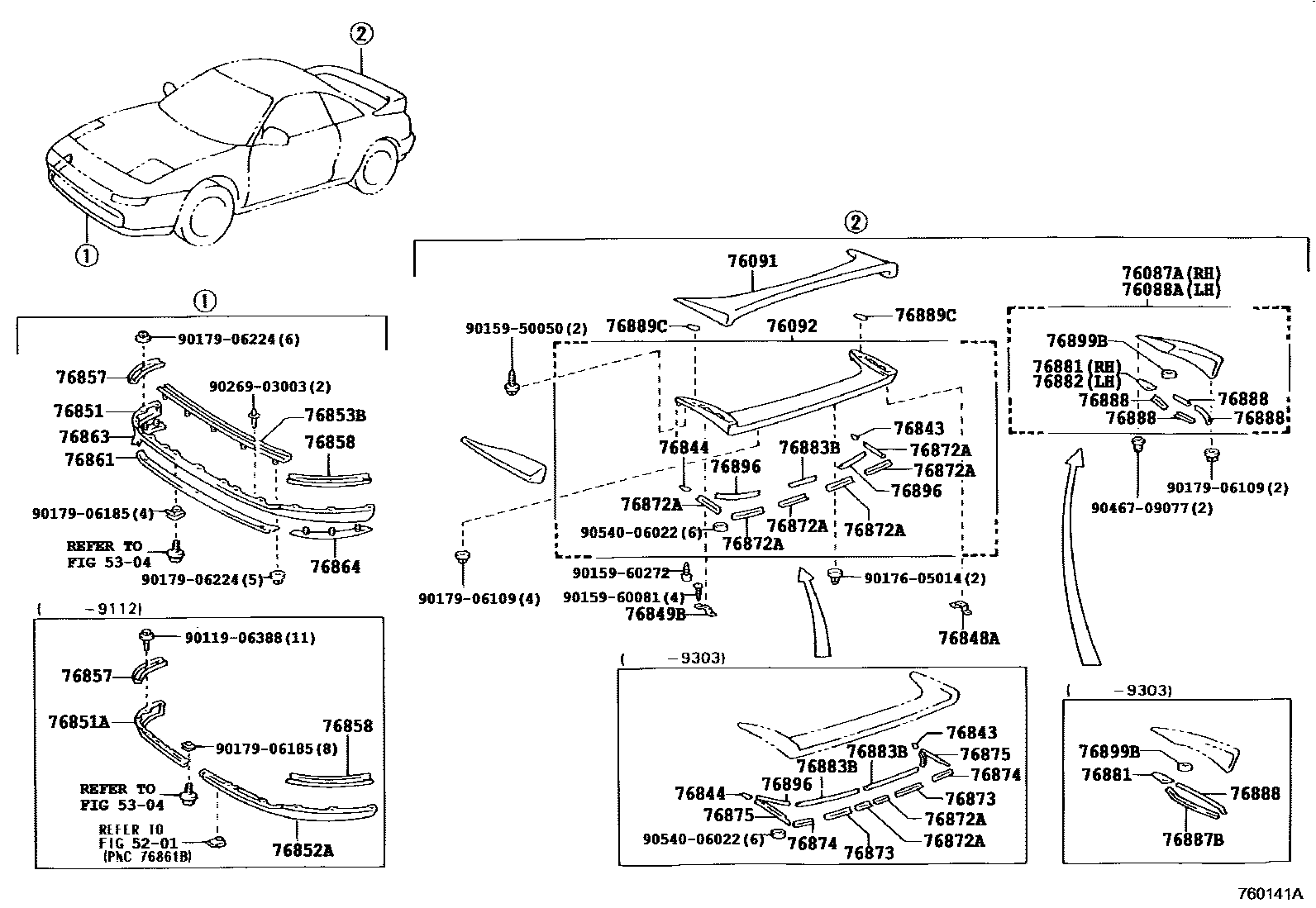

MUDGUARD & SPOILER
5201
5304
76087ASPOILER SUB-ASSY, REAR SIDE
76088ASPOILER SUB-ASSY, REAR SIDE
76091SPOILER SUB-ASSY, REAR UPPER
76092SPOILER SUB-ASSY, REAR LOWER
76843PROTECTOR, REAR SPOILER, NO.11 RH
76844PROTECTOR, REAR SPOILER, NO.11 LH
76848ASUPPORT, REAR SPOILER
76849BSUPPORT, REAR SPOILER
76851COVER, FRONT SPOILER
sub76851-17062
SUPER WHITE 2,040
SILVER ME,2CE
BLACK,202
SUPER RED II,3E5
ORANGE MM,3L1
BEIGE M.M.,4N3
DK.PURPLE MC.,943
76851ACOVER, FRONT SPOILER, RH
76852ACOVER, FRONT SPOILER, LH
76853BCOVER, FRONT SPOILER, CENTER
76857RETAINER, FRONT SPOILER SIDE, RH
76858RETAINER, FRONT SPOILER SIDE, LH
76861RETAINER, FRONT SPOILER, LOWER NO.1
76863RETAINER, FRONT SPOILER, LOWER NO.2 RH
76864RETAINER, FRONT SPOILER, LOWER NO.2 LH
76872PROTECTOR, REAR SPOILER, NO.1
76872APROTECTOR, REAR SPOILER, NO.1
sub90999-91054
76873PROTECTOR, REAR SPOILER, NO.2
sub90999-91055
76874PROTECTOR, REAR SPOILER, NO.3
sub90999-91054
76875PROTECTOR, REAR SPOILER, NO.4
sub90999-91055
76881PROTECTOR, REAR SPOILER SIDE, NO.1 RH
76882PROTECTOR, REAR SPOILER SIDE, NO.1 LH
76887BPROTECTOR, REAR SPOILER SIDE, NO.2
sub90999-91056
76888PROTECTOR, REAR SPOILER SIDE, NO.3
76889CADHESIVE, REAR SPOILER
76896PROTECTOR, REAR SPOILER, NO.6
sub90999-91055
76899PROTECTOR, REAR SPOILER, SIDE NO.6
76899BPROTECTOR, REAR SPOILER, SIDE NO.6
9011906388
main90119-06388
9015950050
main90159-50050
9015960081
main90159-60081
9015960272
main90159-60272
9017605014
main90176-05014
9017906109
main90179-06109
9017906185
main90179-06185
9017906224
main90179-06224
9026903003
main90269-03003
9046709077
main90467-09077
9054006022
main90540-06022
44 parts on this diagram · 3 diagrams in section
