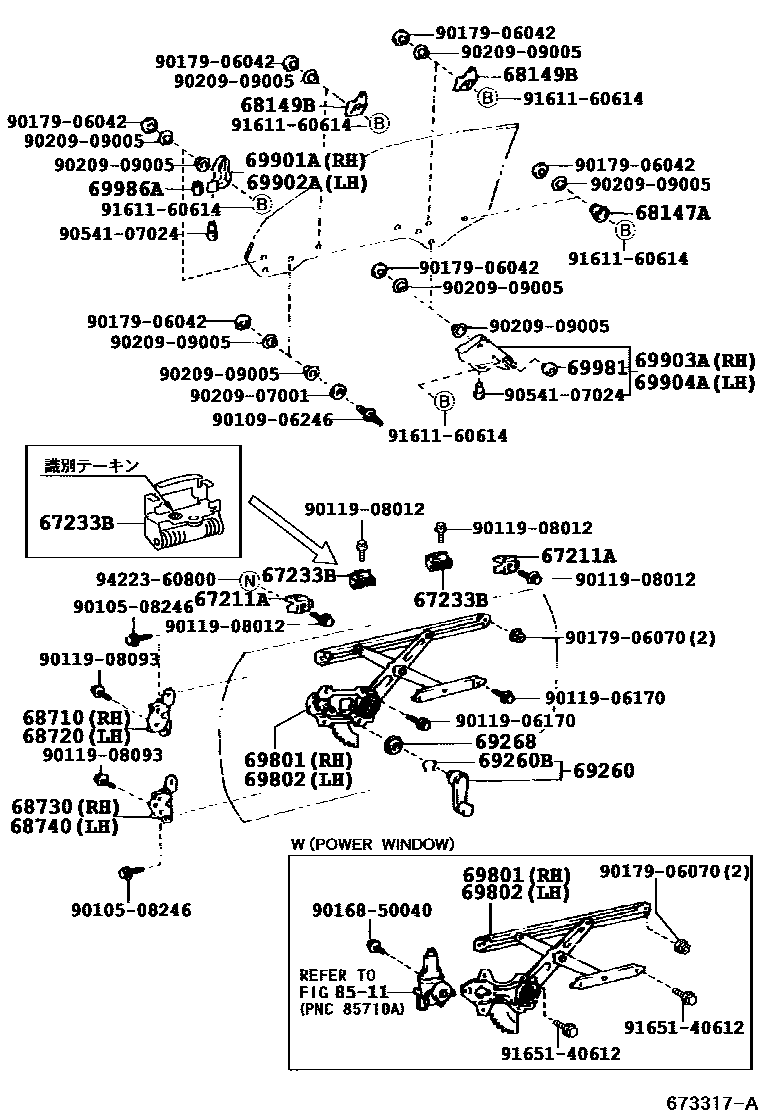

FRONT DOOR WINDOW REGULATOR & HINGE
68147ASTOP, FRONT DOOR GLASS, UPPER
68149BSTABILIZER, FRONT DOOR GLASS MALE
68710HINGE ASSY, FRONT DOOR, UPPER RH
68720HINGE ASSY, FRONT DOOR, UPPER LH
68730HINGE ASSY, FRONT DOOR, LOWER RH
68740HINGE ASSY, FRONT DOOR, LOWER LH
69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
69268PLATE, WINDOW REGULATOR HANDLE
sub69268-20020
69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69901ABRACKET SUB-ASSY, FRONT DOOR GLASS, RH
69902ABRACKET SUB-ASSY, FRONT DOOR GLASS, LH
69903ABRACKET SUB-ASSY, FRONT DOOR GLASS, REAR RH
69904ABRACKET SUB-ASSY, FRONT DOOR GLASS, REAR LH
69981ROLLER, FRONT DOOR GLASS GUIDE
69986APIECE, FRONT DOOR GLASS GUIDE
8511
9010508246
main90105-08246
9010906246
main90109-06246
9011906170
main90119-06170
9011908012
main90119-08012
9011908093
main90119-08093
9016850040
main90168-50040
9017906042
main90179-06042
9017906070
main90179-06070
9020907001
main90209-07001
9020909005
main90209-09005
9054107024
main90541-07024
9161160614
main91611-60614
9165140612
main91651-40612
9422360800
main94223-60800
34 parts on this diagram · 1 diagram in section
