SIDE MEMBER
55164BRACKET, HEATER BLOWER MOUNTING, NO.2 LH
57625REINFORCEMENT, REAR FLOOR SIDE MEMBER, RH
57626REINFORCEMENT, REAR FLOOR SIDE MEMBER, LH
57628DPLATE, REAR FLOOR SIDE MEMBER, RH
57629CPLATE, REAR FLOOR SIDE MEMBER, LH
61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH
61063CTROUGH SUB-ASSY, LUGGAGE DOOR OPENING, FRONT RH
61064CTROUGH SUB-ASSY, LUGGAGE DOOR OPENING, FRONT LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61261CHANNEL, ROOF DRIP, RH
61262CHANNEL, ROOF DRIP, LH
61301PILLAR SUB-ASSY, CENTER BODY, RH
61302PILLAR SUB-ASSY, CENTER BODY, LH
61315CRETAINER, DOOR LOCK STRIKER, RH
61315DRETAINER, DOOR LOCK STRIKER, LH
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61413CREINFORCEMENT, ROCKER PANEL, NO.2 RH
61414CREINFORCEMENT, ROCKER PANEL, NO.2 LH
61415BEXTENSION, ROCKER, OUTER RH
61416BEXTENSION, ROCKER, OUTER LH
61423BREINFORCEMENT, ROCKER PANEL, NO.3 RH
61424BREINFORCEMENT, ROCKER PANEL, NO.3 LH
61425REINFORCEMENT, ROCKER PANEL, NO.4 RH
61426AREINFORCEMENT, ROCKER PANEL, NO.4 LH
61601BPANEL SUB-ASSY, QUARTER, RH
61603CPANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH
61604DPANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH
61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH
61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61635ABRACE, QUARTER WHEEL HOUSE, RH
61636ABRACE, QUARTER WHEEL HOUSE, LH
61667CSEAL, QAURTER PANEL, NO.1
61668CSEAL, QUARTER PANEL, NO.2
61697DHOUSING, QUARTER PANEL END, RH
61698DHOUSING, QUARTER PANEL END, LH
61705PANEL SUB-ASSY, ROOF SIDE, INNER RH
61706PANEL SUB-ASSY, ROOF SIDE, INNER LH
61715AEXTENSION, ROOF SIDE, INNER UPPER RH
61716AEXTENSION, ROOF SIDE, INNER UPPER LH
61735APANEL, ROOF SIDE, INNER REAR RH
61736APANEL, ROOF SIDE, INNER REAR LH
61737DREINFORCEMENT, ROOF SIDE, INNER RH
61738DREINFORCEMENT, ROOF SIDE, INNER LH
61825APLATE, NOISE CONTROL, NO.2
62545ASILENCER, QUARTER TRIM
62554BPAD, PILLAR, NO.4
62555BPAD, PILLAR, NO.5
62556BPAD, PILLAR, NO.6
sub61824-12130
62939ASILENCER, QUARTER VENT
63343CPAD, ROOF SILENCER, REAR
64129ASHEET, BACK CORNER PANEL
6182420100PLATE, NOISE CONTROL, NO.1
main61824-20100
9011906148
main90119-06148
9011906433
main90119-06433
9011908495
main90119-08495
9017908025
main90179-08025
9018906028
main90189-06028
9033301007
main90333-01007
9033325001
main90333-25001
9046308063
main90463-08063
904670604922
main90467-0604922
9048029006
main90480-29006
9095001038
main90950-01038
9095001060
main90950-01060
9095001065
main90950-01065
9095001167
main90950-01167
9095001179
main90950-01179
9095001181
main90950-01181
9095001327
main90950-01327
9095001426
main90950-01426
9095001742
main90950-01742
9095001743
main90950-01743
9095006072
main90950-06072
9165140614
main91651-40614
9165160614
main91651-60614
9165560816
main91655-60816

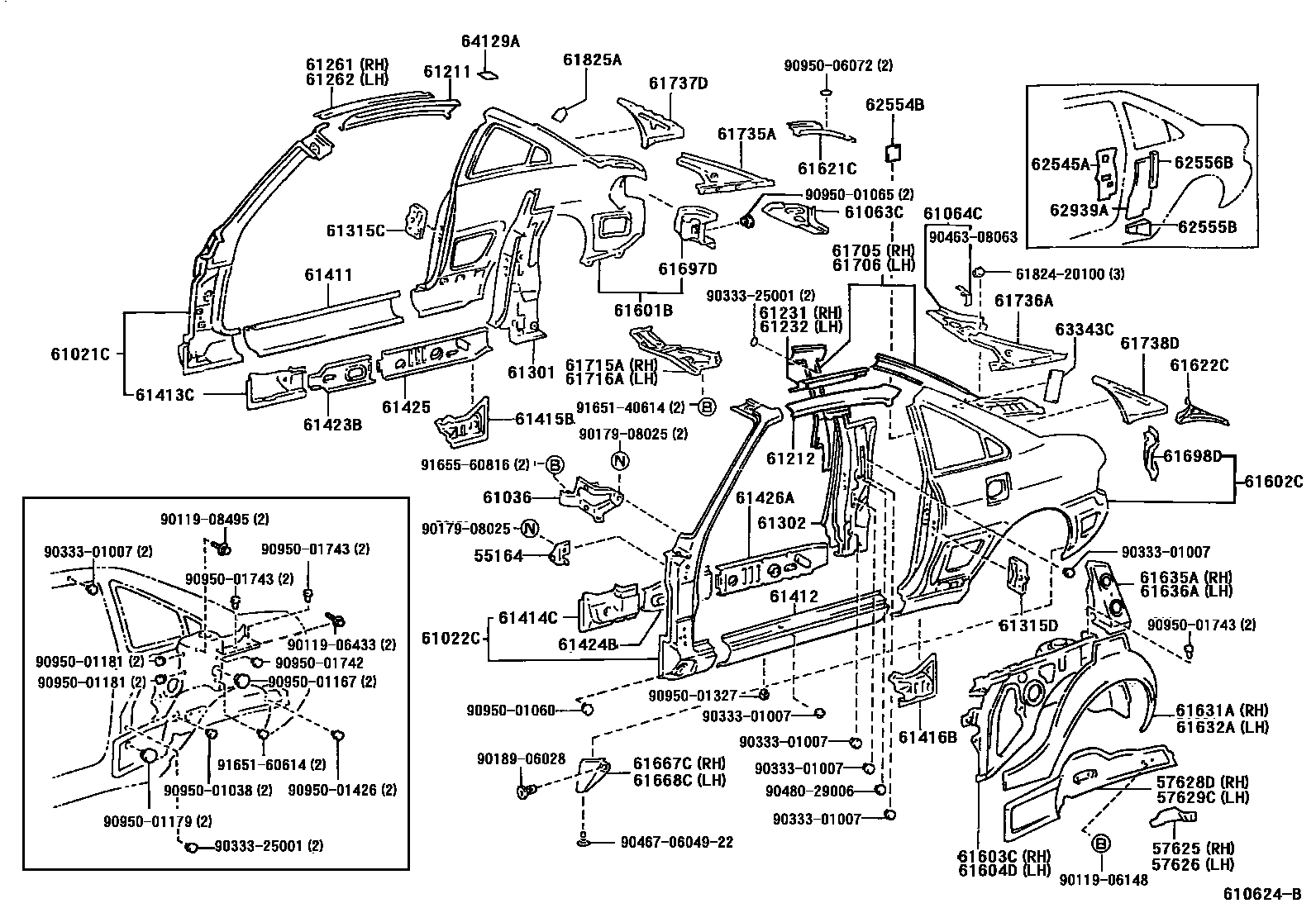

85 parts on this diagram · 2 diagrams in section
