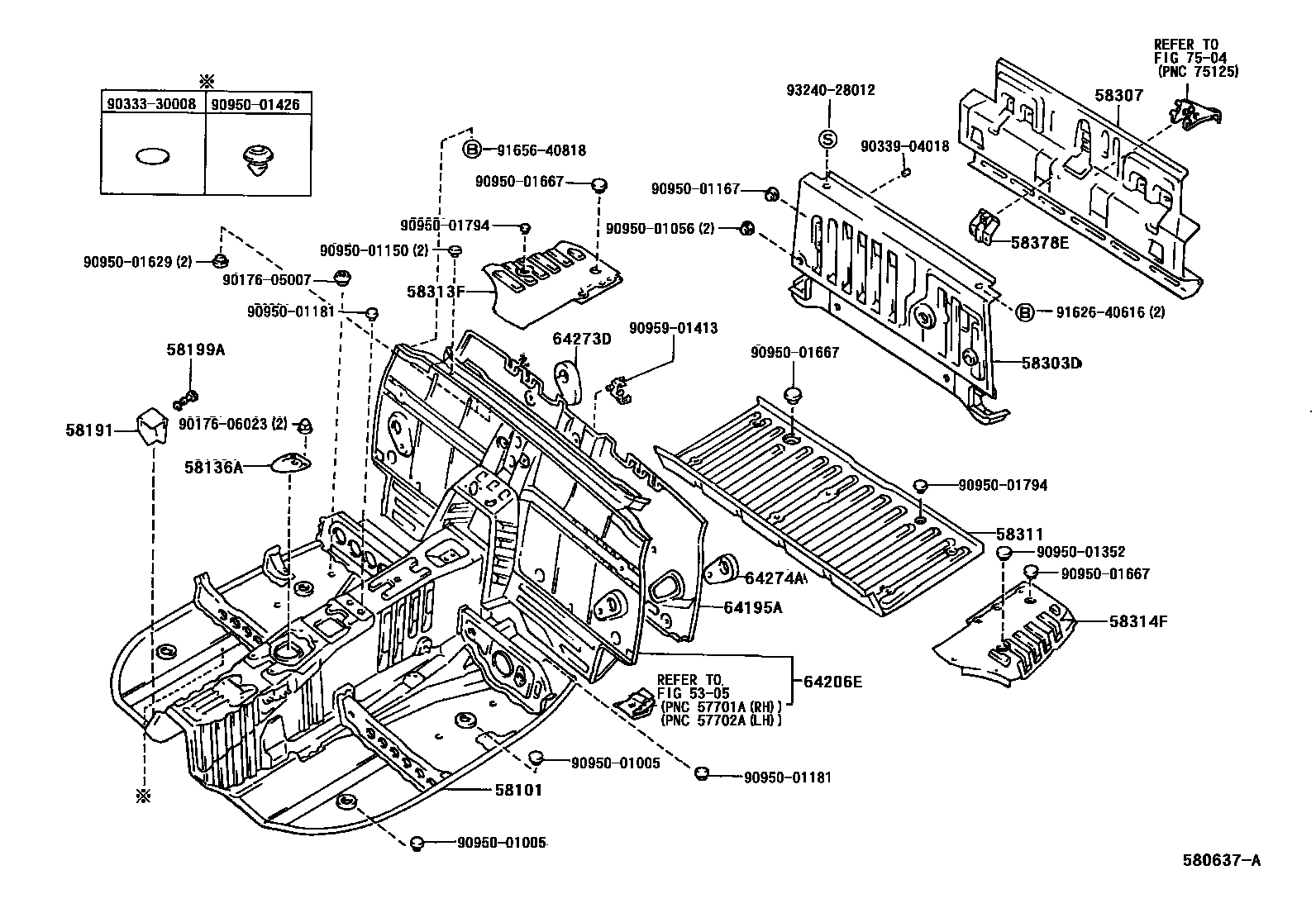

FLOOR PAN & LOWER BACK PANEL

5305

58101PAN SUB-ASSY, FRONT FLOOR

main58101-17906iSW20198912-199311

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-17020iSW20198912

58191FOOTREST, FRONT FLOOR

main58191-17020iSW20198912-199112

main58191-17030iSW20199112

58199ACLIP, FOOTREST, NO.2

main58198-12030iSW20199112

main58199-22020iSW20198912-199112

58303DPANEL SUB-ASSY, REAR FLOOR PARTITION

main58303-17050iSW20198912

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-17070iSW20198912-199311

main58307-17071iSW20199311

58311PAN, REAR FLOOR

main58311-17020iSW20198912

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58313-17030iSW20198912

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58314-17030iSW20198912

58378EPLATE, BODY LOWER BACK REINFORCEMENT

main58378-17030iSW20199112-199908

64195AINSULATOR, ROOM PARTITION PANEL

main64195-17030iSW20198912

64206EPANEL SUB-ASSY, ROOM PARTITION

main64206-17090iSW20198912

main64206-17101iSW20..CP..G199601

64273DPAD, ROOM PARTITION, NO.1

main64273-17010iSW20198912

64274APAD, ROOM PARTITION, NO.2

main64274-17010iSW20198912

7504

9017605007

main90176-05007

9017606023

main90176-06023

9033330008

main90333-30008

9033904018

main90339-04018

9095001005

main90950-01005

9095001056

main90950-01056

9095001150

main90950-01150

9095001167

main90950-01167

9095001181

main90950-01181

9095001352

main90950-01352

9095001426

main90950-01426

9095001629

main90950-01629

9095001667

main90950-01667

9095001794

main90950-01794

9095901413

main90959-01413

9162640616

main91626-40616

9165640818

main91656-40818

9324028012

main93240-28012

34 parts on this diagram · 1 diagram in section
