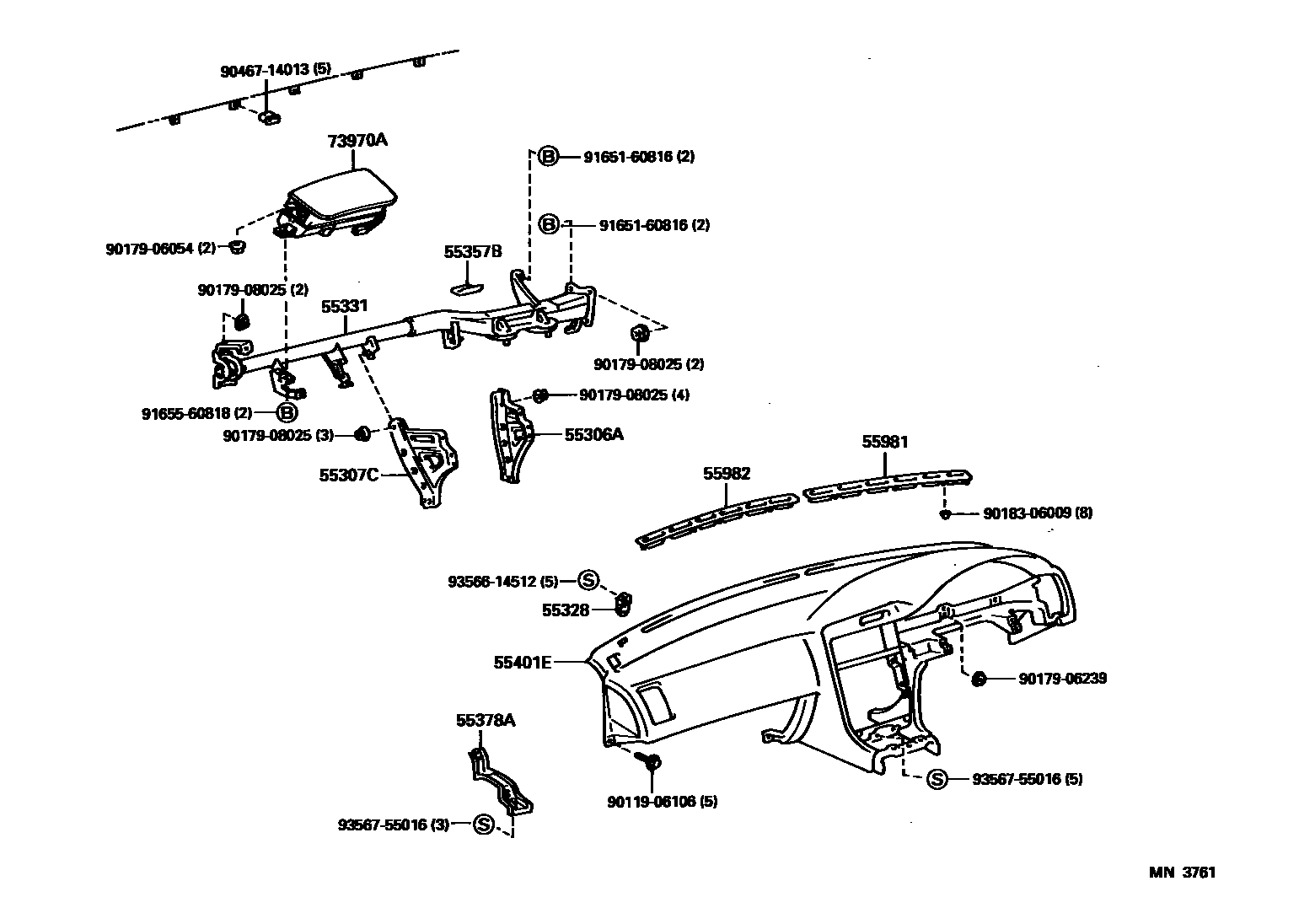

INSTRUMENT PANEL & GLOVE COMPARTMENT
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55328PIN, INSTRUMENT PANEL, NO.1
55357BCUSHION, INSTRUMENT PANEL, NO.3
55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
BLACK,TRIM2#
BLACK,TRIM2#
55981GARNISH, DEFROSTER NOZZLE, NO.1
55982GARNISH, DEFROSTER NOZZLE, NO.2
73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER
9011906106
main90119-06106
9017906054
main90179-06054
9017906239
main90179-06239
9017908025
main90179-08025
9018306009
main90183-06009
9046714013
main90467-14013
9165160816
main91651-60816
9165560818
main91655-60818
9356614512
main93566-14512
9356755016
main93567-55016
20 parts on this diagram · 2 diagrams in section
