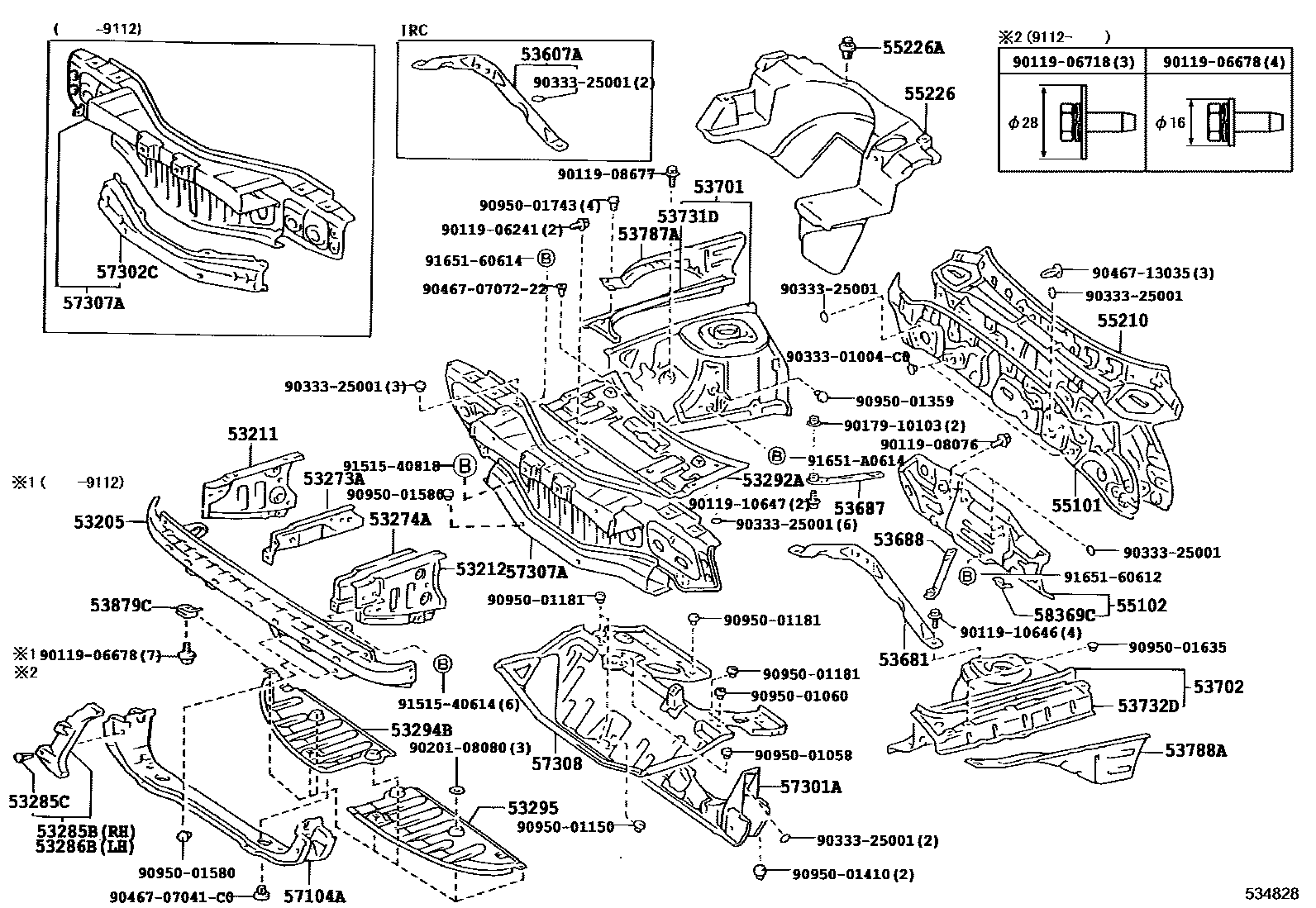

FRONT FENDER APRON & DASH PANEL

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-17040iSW20198912

53211SUPPORT, RADIATOR, RH

main53211-17030iSW20198912

53212SUPPORT, RADIATOR, LH

main53212-17030iSW20198912

53273AREINFORCEMENT, RADIATOR SUPPORT, RH

main53273-17010iSW20198912

53274AREINFORCEMENT, RADIATOR SUPPORT, LH

main53274-17010iSW20198912

53285BSEAL, RADIATOR SIDE AIR, NO.1

main53285-17020iSW20..5F..G198912

53285CCLIP(FOR RADIATOR SIDE AIR SEAL)

main90467-11005×4iSW20..5F..G198912

53286BSEAL, RADIATOR SIDE AIR, NO.2

main53286-17020iSW20..5F..G198912

53292ASEAL, RADIATOR SUPPORT, UPPER

main53292-17020iSW20198912

53294BDEFLECTOR, RADIATOR LOWER AIR, NO.1

main53294-17020iSW20198912

53295DEFLECTOR, RADIATOR LOWER AIR

main53295-17030iSW20198912

53607ABRACE SUB-ASSY, FRONT SUSPENSION, UPPER CENTER

main53607-17041iSW20..GT199311

53681BRACE, FRONT SUSPENSION, UPPER CENTER

main53681-17030iSW20198912

53687BRACE, FRONT SUSPENSION LOWER TO STEERING MEMBER, RH

main53687-17010iSW20198912

53688BRACE, FRONT SUSPENSION LOWER TO STEERING MEMBER, LH

main53688-17010iSW20198912

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-17040iSW20198912

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-17040iSW20198912

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-17020iSW20198912

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-17020iSW20198912

53787AGUSSET, FRONT FENDER APRON, LOWER RH

main53707-17020iSW20199112

main53787-17020iSW20198912-199112

53788AGUSSET, FRONT FENDER APRON, LOWER LH

main53708-17020iSW20199112

main53788-17020iSW20198912-199112

53879CRETAINER, FRONT FENDER LINER

main53879-17020×2iSW20198912

55101PANEL SUB-ASSY, DASH

main55101-17070iSW20198912

55102PANEL SUB-ASSY, DASH, LOWER

main55102-17040iSW20198912

55210INSULATOR ASSY, DASH PANEL

main55210-17030iSW20198912

55226COVER, DASH PANEL FRONT TRIM

main55226-17010iSW20..5F198912-199112

main55226-17011iSW20..CP..GT199208-199311

main55226-17012iSW20..GT199311

GT-S

main55226-17030iSW20..4FC198912-199112

main55226-17031iSW20..4FC199112-199311

main55226-17050iSW20..GT199112-199311

main55226-17051iSW20..GT199311

main55226-17060iSW20..4FC199112-199311

main55226-17070iSW20..GT199112-199311

main55226-17071iSW20..GT199311-199710

55226ACLIP

main90467-07041-11×5iSW20..GT;SW20..4FC199202-199311

BLACK,TRIM2#

main90467-07041-C0×5iSW20..5F..G199202-199311

BLACK,TRIM2#

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-17030iSW20198912

57301AMEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT

main57301-17040iSW20..G198912-199112

sub48824-17030

sub90119-10520

sub90179-10126

main57301-17041iSW20..G199112

main57301-17050iSW20..GT198912-199112

sub48824-17030

sub90119-10520

sub90179-10126

main57301-17051iSW20..GT199112

57302CMEMBER SUB-ASSY, FRONT LUGGAGE CROSS

main57302-17030iSW20198912-199112

57307APANEL SUB-ASSY, FRONT LUGGAGE END

main57307-17050iSW20198912-199112

sub57307-17060

main57307-17070iSW20199112

main57307-17100iSW20199606

57308PAN SUB-ASSY, FRONT LUGGAGE

main57308-17030iSW20..G198912

main57308-17040iSW20..GT198912

58369CBRACKET, FUEL TUBE, NO.3

main58369-32010×2iSW20198912

9011906241

main90119-06241

9011906678

main90119-06678

9011906718

main90119-06718

9011908076

main90119-08076

9011908677

main90119-08677

9011910646

main90119-10646

9011910647

main90119-10647

9017910103

main90179-10103

9020108080

main90201-08080

9033301004C0

main90333-01004C0

9033325001

main90333-25001

9046707041C0

main90467-07041C0

904670707222

main90467-0707222

9046713035

main90467-13035

9095001058

main90950-01058

9095001060

main90950-01060

9095001150

main90950-01150

9095001181

main90950-01181

9095001359

main90950-01359

9095001410

main90950-01410

9095001580

main90950-01580

9095001635

main90950-01635

9095001743

main90950-01743

9151540614

main91515-40614

9151540818

main91515-40818

9165160612

main91651-60612

9165160614

main91651-60614

91651A0614

main91651-A0614

61 parts on this diagram · 1 diagram in section
