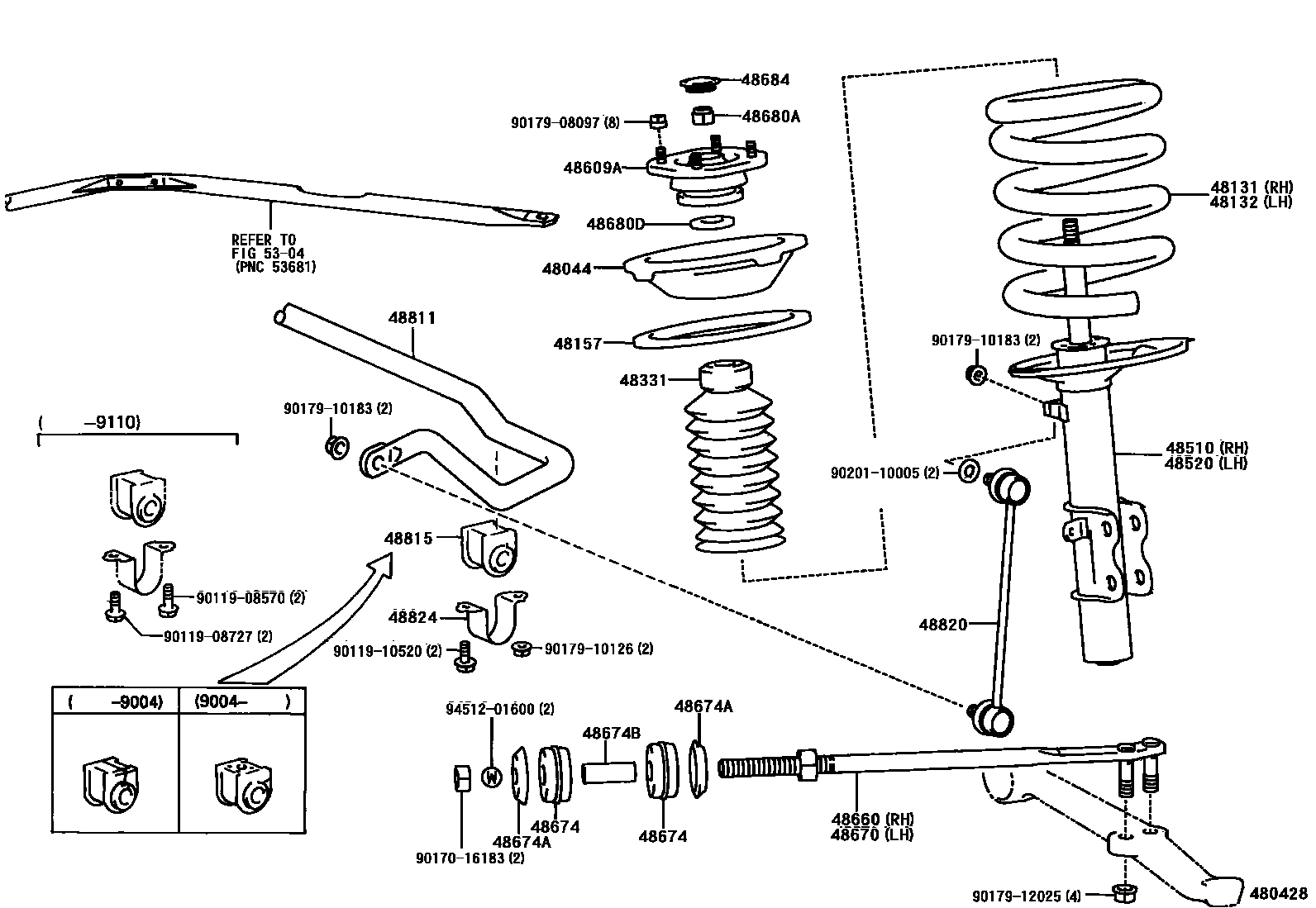

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48044SEAT SUB-ASSY, FRONT SPRING, NO.1

main48044-17020iSW20198912

48131SPRING, FRONT COIL, RH

main48131-17280iSW20..G198912-199003

main48131-17280iSW20..G199003-199112

main48131-17310iSW20..GT198912-199112

main48131-17370iSW20..G199003-199112

main48131-17440iSW20..G199112-199311

main48131-17500iSW20..GT199112-199311

main48131-17570iSW20..G199311

main48131-17630iSW20..GT199311

48132SPRING, FRONT COIL, LH

main48131-17280iSW20..G198912-199003

main48131-17280iSW20..G199003-199112

main48131-17310iSW20..GT198912-199112

main48131-17370iSW20..G199003-199112

main48131-17440iSW20..G199112-199311

main48131-17500iSW20..GT199112-199311

main48131-17570iSW20..G199311

main48131-17630iSW20..GT199311

48157INSULATOR, FRONT COIL SPRING, UPPER

main48157-17020iSW20198912

48331BUMPER, FRONT SPRING, NO.1

main48331-17020iSW20198912-199112

sub48331-17021

main48331-17030iSW20199112

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-09035iSW20..GT199311

main48510-09035iSW20..CP..G199501-199504

10TH ANNIVERSARY

main48510-0W020iSW20..GT199112-199311

main48510-17050iSW20..G198912-199112

sub48510-17070

main48510-17060iSW20..GT198912-199112

sub48510-17080

main48510-17070iSW20..G198912-199112

sub48510-17081

main48510-17080iSW20..GT198912-199112

sub48510-17081

main48510-17100iSW20..G199112-199311

sub48510-17120

main48510-17120iSW20..G199112-199311

sub48510-17121

main48510-19315iSW20..G199311-199606

sub48510-19335

main48510-19315iSW20..CP..5F..G199606-199609

sub48510-19335

main48510-19335iSW20..G199606

sub48510-19336

main48510-19335iSW20..G199311-199606

sub48510-19336

main48510-19345iSW20..GT199311

sub48510-19335

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-09025iSW20..GT199311

main48520-09025iSW20..CP..G199501-199504

10TH ANNIVERSARY

main48520-0W020iSW20..GT199112-199311

main48520-17050iSW20..G198912-199112

sub48520-17070

main48520-17060iSW20..GT198912-199112

sub48520-17080

main48520-17070iSW20..G198912-199112

sub48520-17081

main48520-17080iSW20..GT198912-199112

sub48520-17081

main48520-17100iSW20..G199112-199311

sub48520-17120

main48520-17120iSW20..G199112-199311

sub48520-17121

main48520-19035iSW20..G199311-199606

sub48520-19055

main48520-19035iSW20..CP..5F..G199606-199609

sub48520-19055

main48520-19055iSW20..G199311-199606

sub48520-19056

main48520-19055iSW20..G199606

sub48520-19056

main48520-19065iSW20..GT199311

sub48520-19055

48609ASUPPORT SUB-ASSY, FRONT SUSPENSION

main48609-17030iSW20198912-199311

main48609-17040iSW20199311

48660BAR ASSY, STRUT, RH

main48660-17030iSW20198912-199112

main48660-17040iSW20199112

48670BAR ASSY, STRUT, LH

main48670-17030iSW20198912-199112

main48670-17040iSW20199112

48674CUSHION, STRUT BAR

main48674-17030iSW20198912-199112

main48674-17040iSW20198912-199112

48674ARETAINER, CUSHION(FOR STRUT BAR CUSHION)

main90948-02036iSW20198912-199112

48674BCOLLAR(FOR STRUT BAR CUSHION)

main90387-16108iSW20198912-199112

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main94182-11400iSW20198912

48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)

main90303-22049iSW20198912

48684COVER, BEARING DUST

main48684-14030iSW20198912

48811BAR, STABILIZER, FRONT

main48811-17050iSW20..G198912-199003

OD=16.5

main48811-17060iSW20..G198912-199003

main48811-17070iSW20..G199003-199112

main48811-17070iSW20..TBR..GT199003-199112

main48811-17080iSW20..G198912-199112

OD=17.5

main48811-17090iSW20..CP..GT199003-199112

main48811-17110iSW20..G199112-199311

main48811-17120iSW20..GT199112-199908

main48811-17130iSW20..G199311-199908

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-17010iSW20..GT198912-199003

main48815-17010iSW20..GT198912-199003

ID=17

main48815-17010iSW20..G199003-199004

main48815-17020iSW20..GT199003-199004

ID=18

main48815-17020iSW20..GT199003-199004

main48815-17040iSW20..G198912-199003

main48815-17060iSW20..G199004-199112

main48815-17070iSW20..G199004-199112

main48815-17080iSW20..CP..GT199004-199112

main48815-17100iSW20..G199112-199311

main48815-17110iSW20..GT199112

main48815-17120iSW20..G199311

48820LINK ASSY, FRONT STABILIZER

main48820-17020iSW20198912-199112

sub48820-17030

main48820-17030iSW20..G199311

sub48820-17040

main48820-17040iSW20199112-199311

48824BRACKET, STABILIZER, FRONT

main48824-17010iSW20198912-199004

sub48824-17011

main48824-17011iSW20199004-199110

main48824-17021iSW20199112

main48824-17030iSW20199110-199112

5304

9011908570

main90119-08570

9011908727

main90119-08727

9011910520

main90119-10520

9017016183

main90170-16183

9017908097

main90179-08097

9017910126

main90179-10126

9017910183

main90179-10183

9017912025

main90179-12025

9020110005

main90201-10005

9451201600

main94512-01600

31 parts on this diagram · 2 diagrams in section
