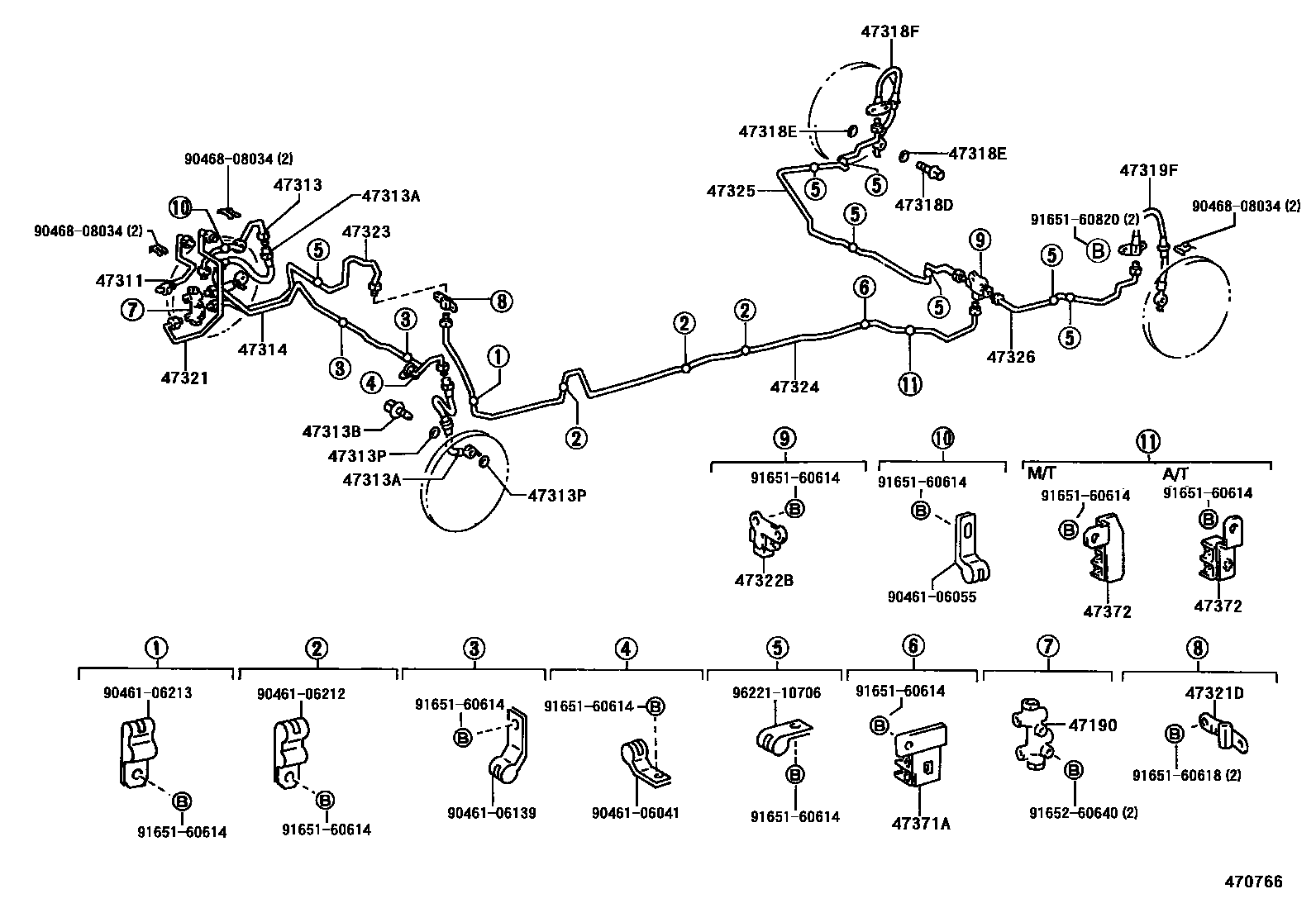

BRAKE TUBE & CLAMP

0001 1 0002 1��(ABS) 0003 1W(ABS) 0004 1��(ABS) 0006 1��(ABS) 0008 1��(������ ����-�) 0009 1��(������ ����-�) 0010 1��(������ ����-�) 0011 1 0012 1

47190VALVE ASSY, PROPORTIONING & BY-PASS

main47190-14060iSW20..G199203-199311

main47190-14080iSW20..G199112-199203

main47190-17020iSW20..G199203-199311

main47190-17030iSW20..GT199112-199203

main47190-17040iSW20198912-199112

main47190-17050iSW20..GT199112-199203

main47190-17060iSW20198912-199112

main47190-17070iSW20..G199112-199203

main47190-17080iSW20..GT199606-199908

main47190-17090iSW20..GT199311-199606

main47190-17100iSW20..G199311-199606

main47190-17110iSW20..CP..5F..G199606-199908

47311TUBE, FRONT BRAKE, NO.1

main47311-17080iSW20..CP..5F199606-199908

main47311-17110iSW20..G199112-199311

main47311-17120iSW20198912-199112

main47311-17140iSW20..G199311-199606

47313TUBE, FRONT BRAKE, NO.3

main47313-17050iSW20..CP..5F199606-199908

main47313-17070iSW20..GT199112-199311

main47313-17090iSW20..GT199112-199311

main47313-17120iSW20..GT199311-199606

main47313-17130iSW20199712-199908

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02609×2iSW20198912-199112

main90947-02692×2iSW20199112-199311

main90947-02791×2iSW20199311-199606

main90947-02885×2iSW20199606-199908

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015×2iSW20198912-199908

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074×4iSW20198912-199908

47314TUBE, FRONT BRAKE, NO.4

main47314-17060iSW20..CP..5F199606-199908

main47314-17080iSW20..GT199112-199311

main47314-17100iSW20..GT199112-199311

main47314-17130iSW20..GT199311-199606

main47314-17140iSW20199712-199908

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10015×2iSW20198912-199908

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main90430-10074×4iSW20198912-199908

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02610iSW20198912-199112

main90947-02693iSW20199112-199606

main90947-02886iSW20199606-199908

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02610iSW20198912-199112

main90947-02693iSW20199112-199606

main90947-02886iSW20199606-199908

47321TUBE, REAR BRAKE, NO.1

main47321-17080iSW20199311-199606

main47321-17110iSW20..G199112-199311

main47321-17120iSW20..G199203-199311

main47321-17140iSW20..GT199112-199311

main47321-17150iSW20199311-199606

main47321-17160iSW20..GT199311-199712

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-12033iSW20198912-199908

47322TUBE, REAR BRAKE, NO.2

main47322-17050iSW20..G198912-199112

main47322-17070iSW20..GT198912-199112

main47322-17090iSW20..GT199112-199311

main47322-17100iSW20199606-199712

main47322-17110iSW20199712-199908

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90412-10195iSW20199606-199908

main90413-10250iSW20198912-199606

47323TUBE, REAR BRAKE, NO.3

main47323-17020iSW20..G199112-199311

main47323-17040iSW20..G199112-199606

main47323-17060iSW20..GT199112-199311

main47323-17070iSW20..GT199311-199606

main47323-17080iSW20199712-199908

47324TUBE, REAR BRAKE, NO.4

main47324-17020iSW20198912-199112

main47324-17030iSW20199606-199908

47325TUBE, REAR BRAKE, NO.5

main47325-17020iSW20198912-199908

47326TUBE, REAR BRAKE, NO.6

main47326-17010iSW20..CP..GT199311-199908

main47326-17020iSW20..GT199311-199606

47371ACLAMP, BRAKE TUBE, NO.1

main47371-17010×4iSW20199606-199908

main47371-30090iSW20198912-199112

47372CLAMP, BRAKE TUBE, NO.2

main47371-17020iSW20..GT199112-199606

main47371-17040iSW20199606-199908

main47371-30090iSW20..4FC199112-199606

9046106041

main90461-06041

9046106055

main90461-06055

9046106139

main90461-06139

9046106212

main90461-06212

9046106213

main90461-06213

9046808034

main90468-08034

9165160614

main91651-60614

9165160618

main91651-60618

9165160820

main91651-60820

9165260640

main91652-60640

9622110706

main96221-10706

32 parts on this diagram · 10 diagrams in section
